8.1.3 Specifications of standard wiring components
Component
Interconnection cable
(indoor↔outdoor)
Voltage 220~240V
Wire size Only use harmonized wire
providing double insulation and
suitable for applicable voltage
4-core cable
1.5mm²~2.5 mm
2
(based on
outdoor unit)
8.2 To connect the electrical wiring to the indoor unit
WARNING
Provide adequate measures to prevent that the unit can be used as a shelter by small
animals. Small animals that make contact with electrical parts can cause
malfunctions, smoke or fire.
NOTICE
▪ Keep the power line and transmission line apart from each other. Transmission
wiring and power supply wiring may cross, but may NOT run parallel.
▪ In order to avoid any electrical interference, the distance between both wirings
should ALWAYS be at least 50mm.
Electrical work should be carried out in accordance with the installation manual
and the national electrical wiring rules or code of practice.

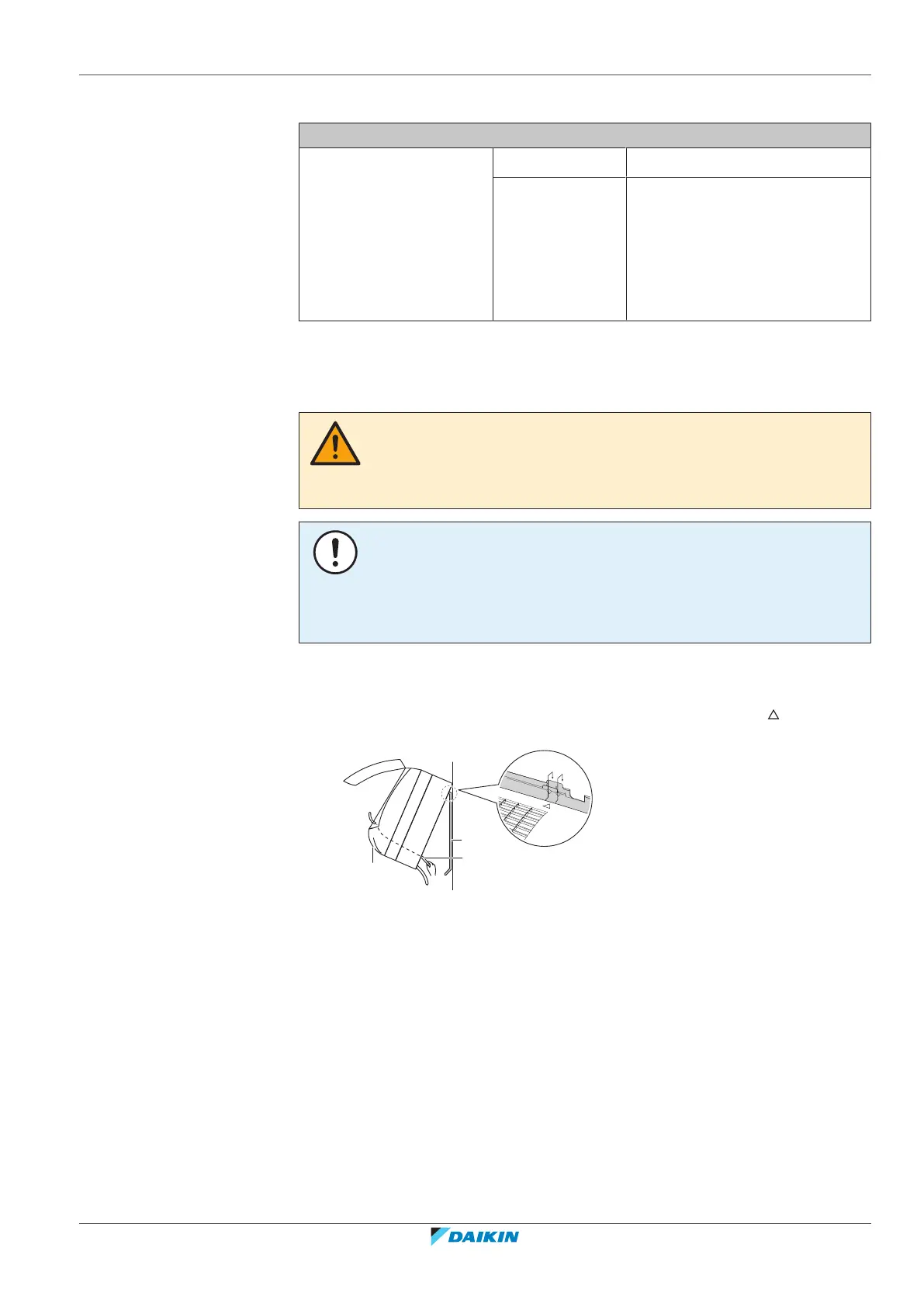

1 Set the indoor unit on the mounting plate hooks. Use the " " marks as a
guide.
b
a
c
a Mounting plate (accessory)
b Interconnection cable
c Wire guide
2 Open the front panel, and then the service cover. Refer to "6.2Opening the
unit"[422].
3 Pass the interconnection cable from the outdoor unit through the feed-
through wall hole, through the back of the indoor unit and through the front
side.
Note: In case the interconnection cable was stripped in advance, cover the ends
with insulating tape.
4 Bend the end of the cable up.
