8 | Electrical installation
Installer reference guide
40
FTXTP-M_FTXTP-N
Daikin room air conditioner
4P728168-4 – 2023.03
a
b
c

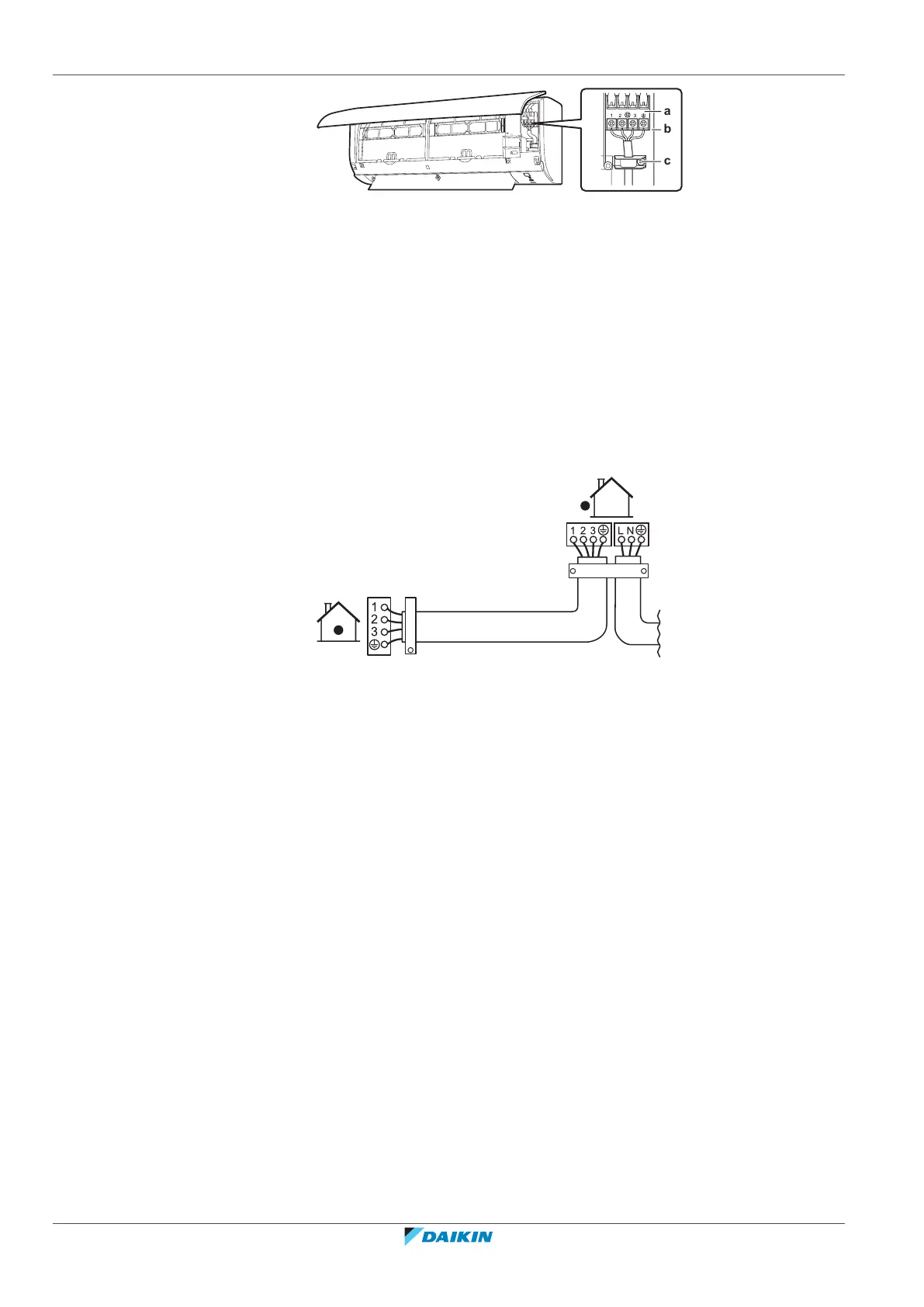

a Terminal block
b Electrical component block
c Cable clamp
5 Strip the wire ends approximately 15mm.
6 Match wire colours with terminal numbers on the indoor unit terminal blocks
and firmly screw the wires to the corresponding terminals.
7 Connect the earth wire to the corresponding terminal.
8 Firmly fix the wires with the terminal screws.
9 Pull the wires to make sure that they are securely attached, then retain the
wires with the wire retainer.
10 Shape the wires so that the service cover fits securely, then close the service
cover.
