2. Functional Parts Layout
2.1 ERRQ 011/014/016 AAV1, ERSQ 011/014/016 AAV1

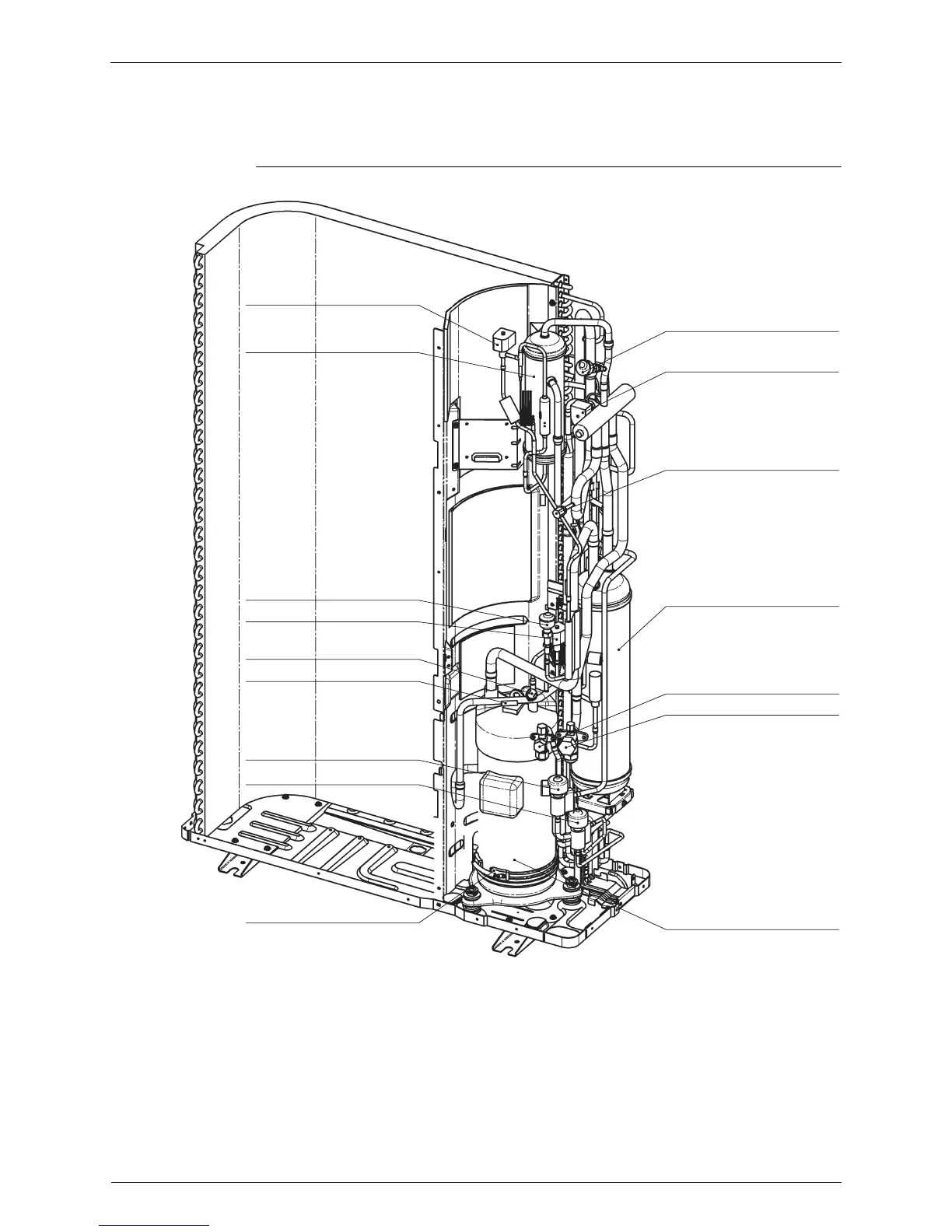

Bird’s-eye view
Remark:
Bottom plate heater:
 Standard for ERRQ
 Optional for ERSQ
Y2S
S1NPL
Solenoid valve
S1NPH
High pressure sensor
Y1S
4-way valve
Service port
Accumulator
Service port liquid
Service port gas
Compressor
Oil separator
Low pressure sensor
R2T
Discharge thermistor
Y1E
Electric expansion valve
Y3E
Electric expansion valve
E1HC
Crankcase heater
S1HP
High pressure switch
Y3S
Solenoid valve
