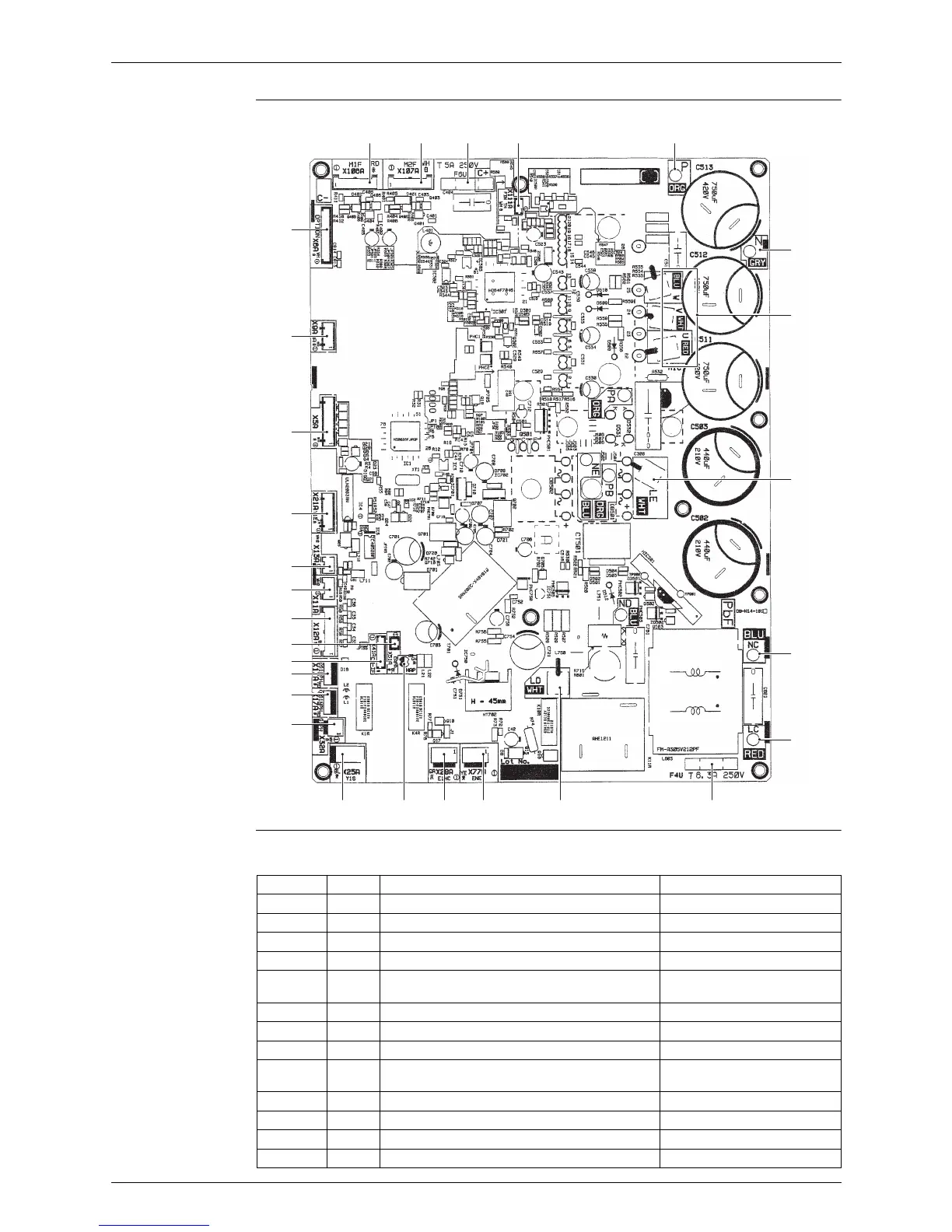

Connector Color Connected to Function
X5A White - -
X6A White - -
X9A White X809A of PCB A5P QA PCB
X11A White - -
X12A Blue
R6T by connector X1Y [13, 14]
R7T by connector X1Y [15, 16]
Discharge & liquid [R-134a]
thermistor
X13A White - -
X17A Red B1PH by connector X1Y [17, 18, 19] High pressure sensor
X18A Blue B1PL by connector X1Y [20 - 21 - 22] Low pressure sensor
X21A White K2E by connector X1Y [25 - 26 - 27 - 28 - 29 -
30]
Electronic expansion valve
X25A Blue Y1R by connector X3Y [7 - 8] 4-way valve
X27A Pink M1F & M2F Switch box cooling fan
X28A Grey E1HC by connector X3Y [5 - 6] Crankcase heater
X32A White K1A Interface relay of S1PH & Q2L
