PCB Layout for EKHBRD 011/014/016 AAV1 ESIE09-08
38 Refrigerant Circuit

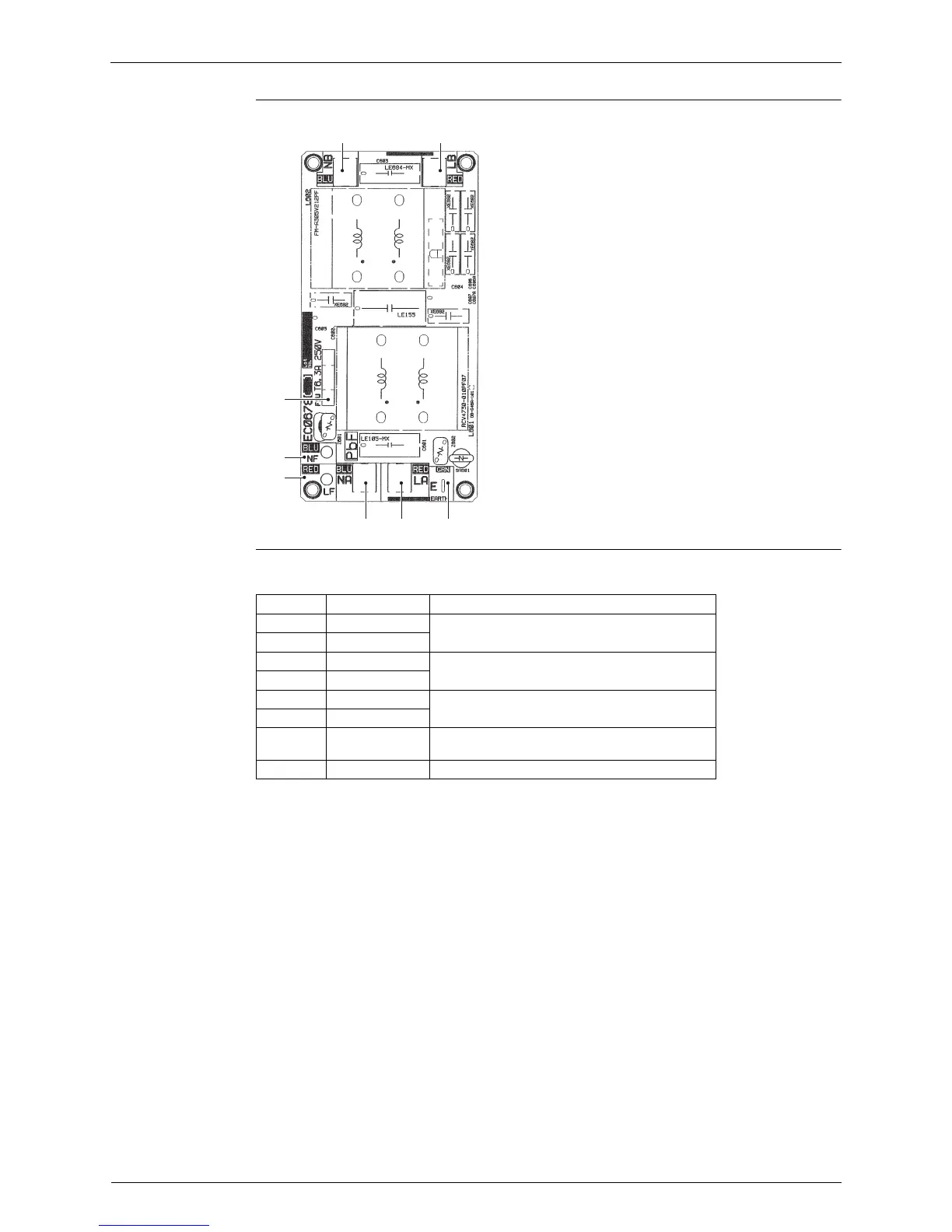

Filter PCB - A6P
Legend
NB LB
NA LA E
LF
NF
F1U
Connector Color Connected to - function
LA Red
X1M [L - N] Power supply 1~230V
NA Blue
LB Red
LC - NC Inverter PCB
NB Blue
LF Red
X2M [10 - 11] via V5C
NF Blue
E
Green cable,
white connector
Earth
F1U - 6,3A 250V [fuse]
