Daikin FDMQ-R Series User Manual

FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
389
3P363899-2D
1. Remove the front panel and the front grille.
(Refer to the front page for the removal of each part in detail.)
2. Remove the electrical wiring cover.
If there is workspace on the right-hand side of the indoor unit, the installation work can be
conducted without removing the electrical wiring box.
Connect HA without removing the electrical wiring box, if possible.

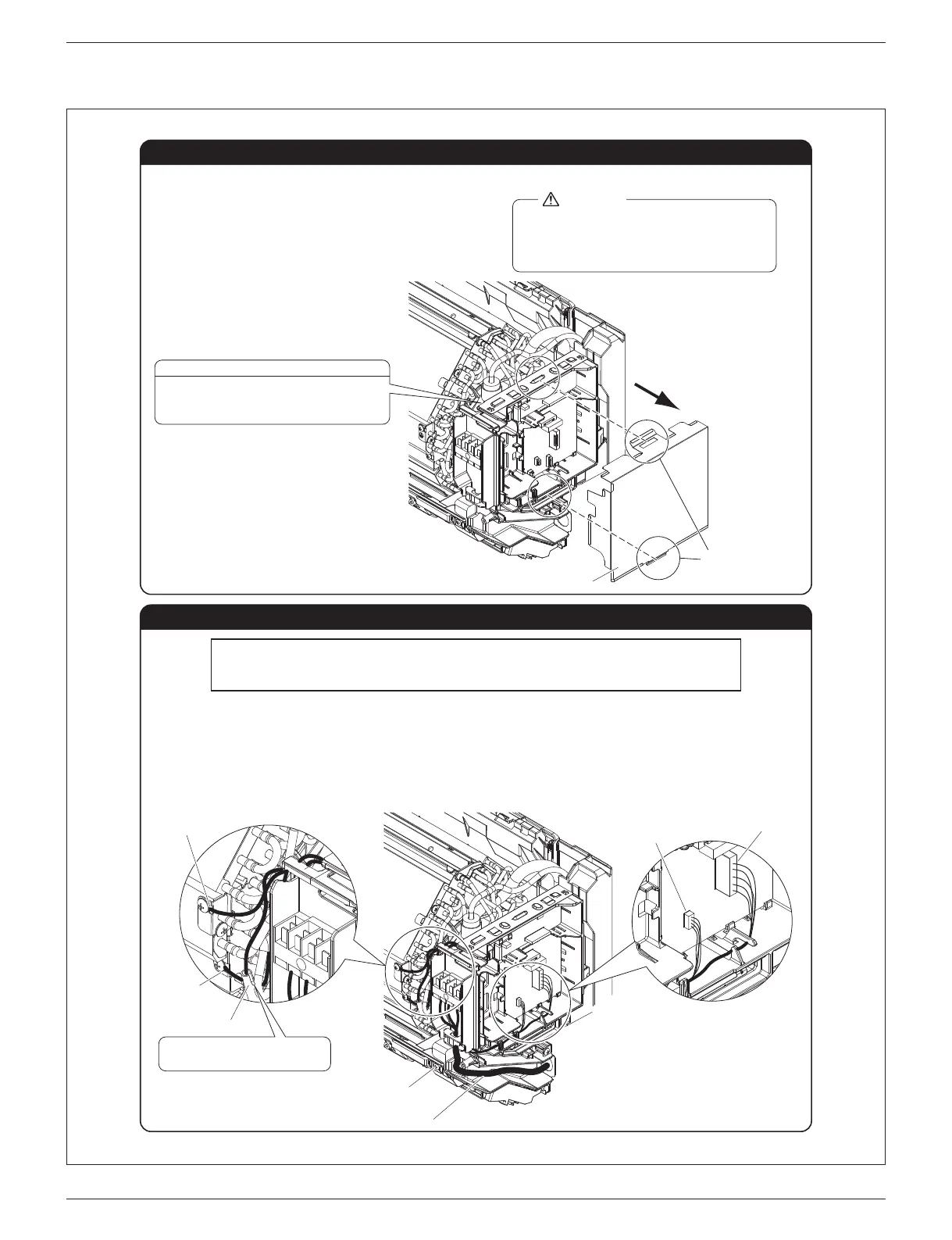

Removal of Electrical Wiring Cover
Removal of Electrical Wiring Box
Disengage the hooks.
1. Disconnect the contact wire.
2. Disconnect the fan motor connector (S200) and swing motor connector (S6, S11).
(Some models may not have S11 connecter.)
3. Disconnect the thermistor and ground wire from the heat exchanger (two screws).
(Some models may not have ground wire.)
4. Remove the mounting screw of the electrical wiring box (one screw).
Mounting screw of
electrical wiring box
contact wire
* The position of the ground wire
may differ depending on the model.
S200
S6
Thermistor
Ground wire*
(Green)
Electrical wiring cover
Make sure that the mounting bracket
of the thermistor will not fall off.
Ground wire*
(Green/Yellow)
WARNING
r Be sure to turn OFF the power at the time of
installation work.
Touching any electric parts with the power
turned ON may cause electric shock.
Electrical wiring box
If there is workspace on the right-hand side of the
indoor unit, the installation work can be conducted
without removing the electrical wiring box.
