Removal of Drain Plug (Right / Left Replacement) Si04-960
16 Removal Procedure

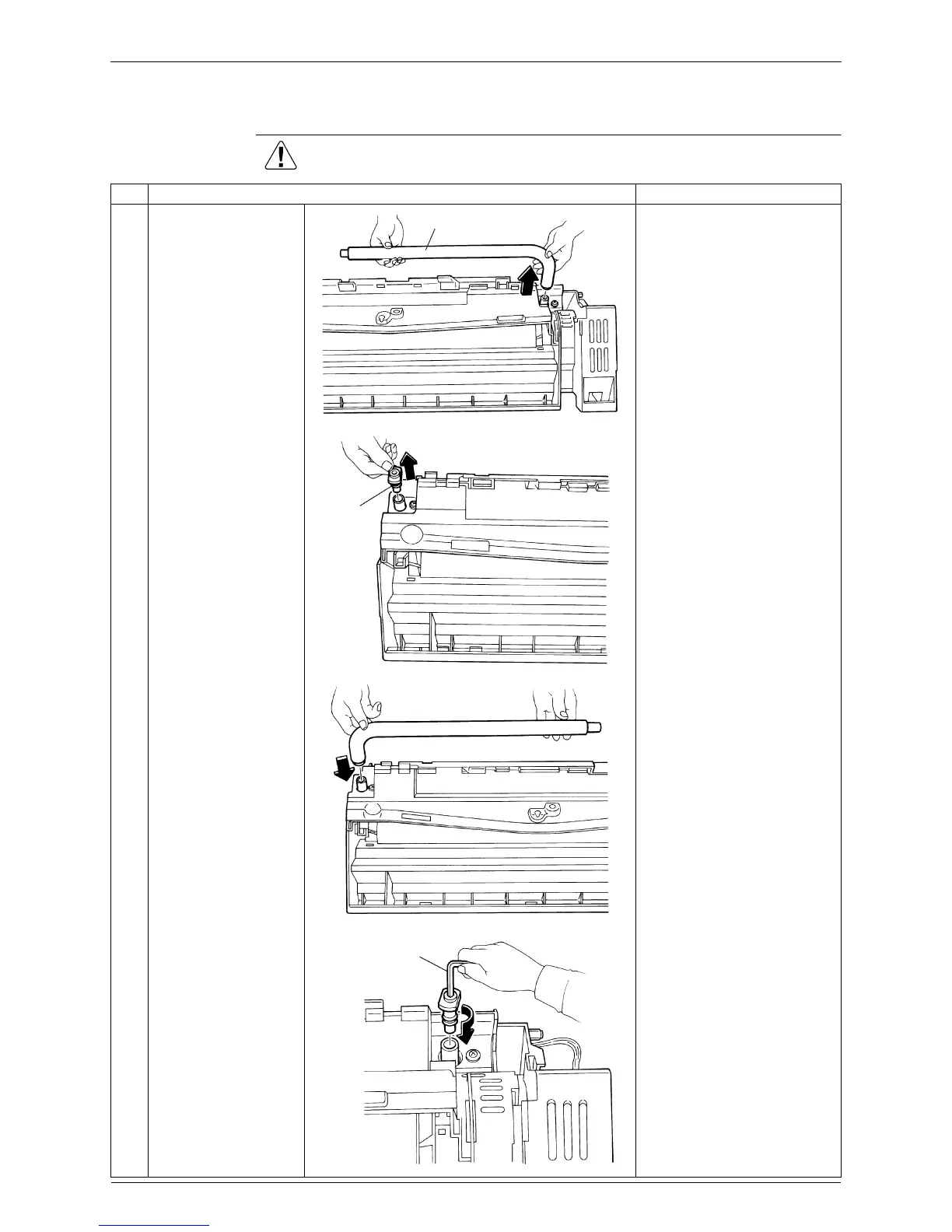

6. Removal of Drain Plug (Right / Left Replacement)
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Disconnect the drain
hose.

The drain pan is integrated
with the bottom plate.
2
Pull out the drain plug
from the left hole on the
drain pan by hand.
3
Insert the drain hose.

Push it into the inner part
firmly.
4
Push the drain plug into
the right hole.

Push it into the inner part
firmly.
Drain hose
(R2552)
Drain
plug
(R2553)
(R2554)
(R18522)
Hexagonal wrench (4 mm)
