Removal of Electrical Box / PCB / Swing Motor Si04-960
8 Removal Procedure
4. Removal of Electrical Box / PCB / Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

Remove the front grille.
1. Remove the electrical box.
1
Disconnect the
connecting wires.
2
Remove the screw on
the wire fixture.

Pay attention to the direction
of the retainer of the
thermistor so that the
retainer does not touch the
harness.
3
Disconnect the
connectors for fan
motor [S1] [S7].
4
Disconnect the
connector for swing
motor [S6].

5
Pull out the indoor heat
exchanger thermistor.
Terminal board
Indoor heat exchanger
thermistor
Swing motor
Earth screw
[S1]
[S7]
[S6]

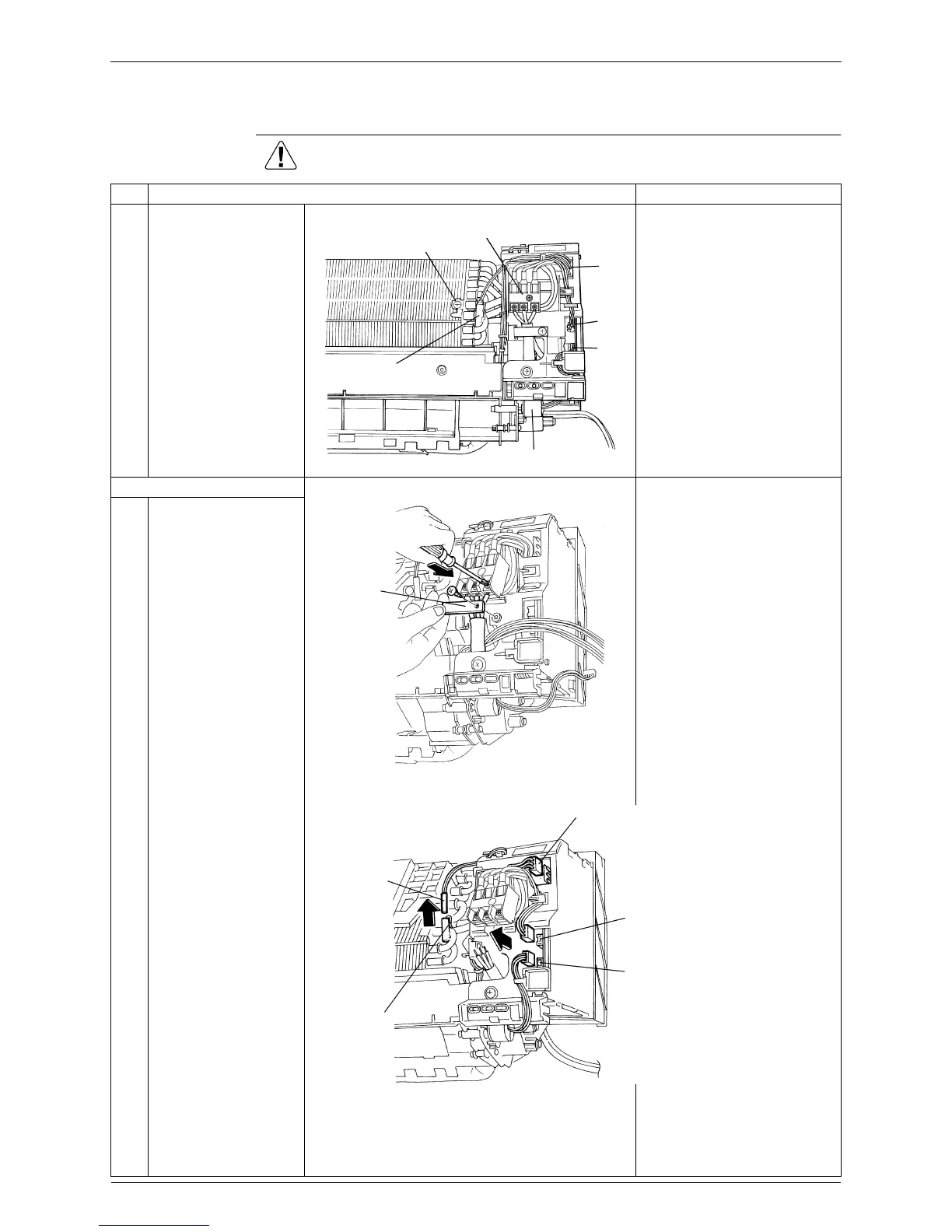

(R18517)
Wire
fixture
(R18518)
Indoor heat
exchanger
thermistor
Retainer of
thermistor
[S1]
Connector
for fan motor
[S7]
Connector
for fan motor
[S6]
Connector
for swing
motor
(R18519)
