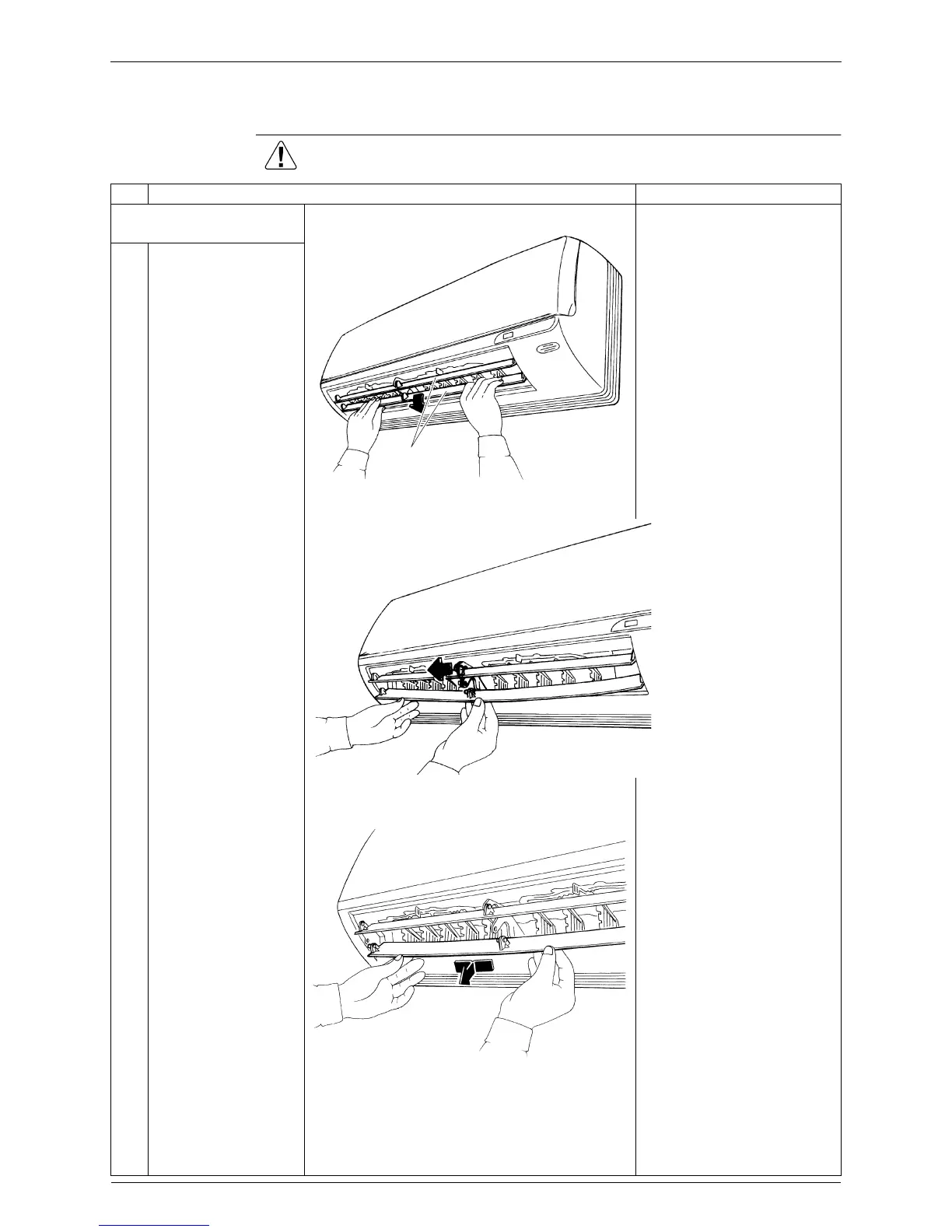

Removal of Horizontal Blades / Vertical Blades Si04-960
6 Removal Procedure
3. Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the horizontal
blades.
1
Open the horizontal
blade.
2
Disengage the
horizontal blade from
the retaining section.
3
Bend the horizontal
blade slightly and
remove it from the unit.
Horizontal blade
(R2522)
(R2523)
(R2524)
