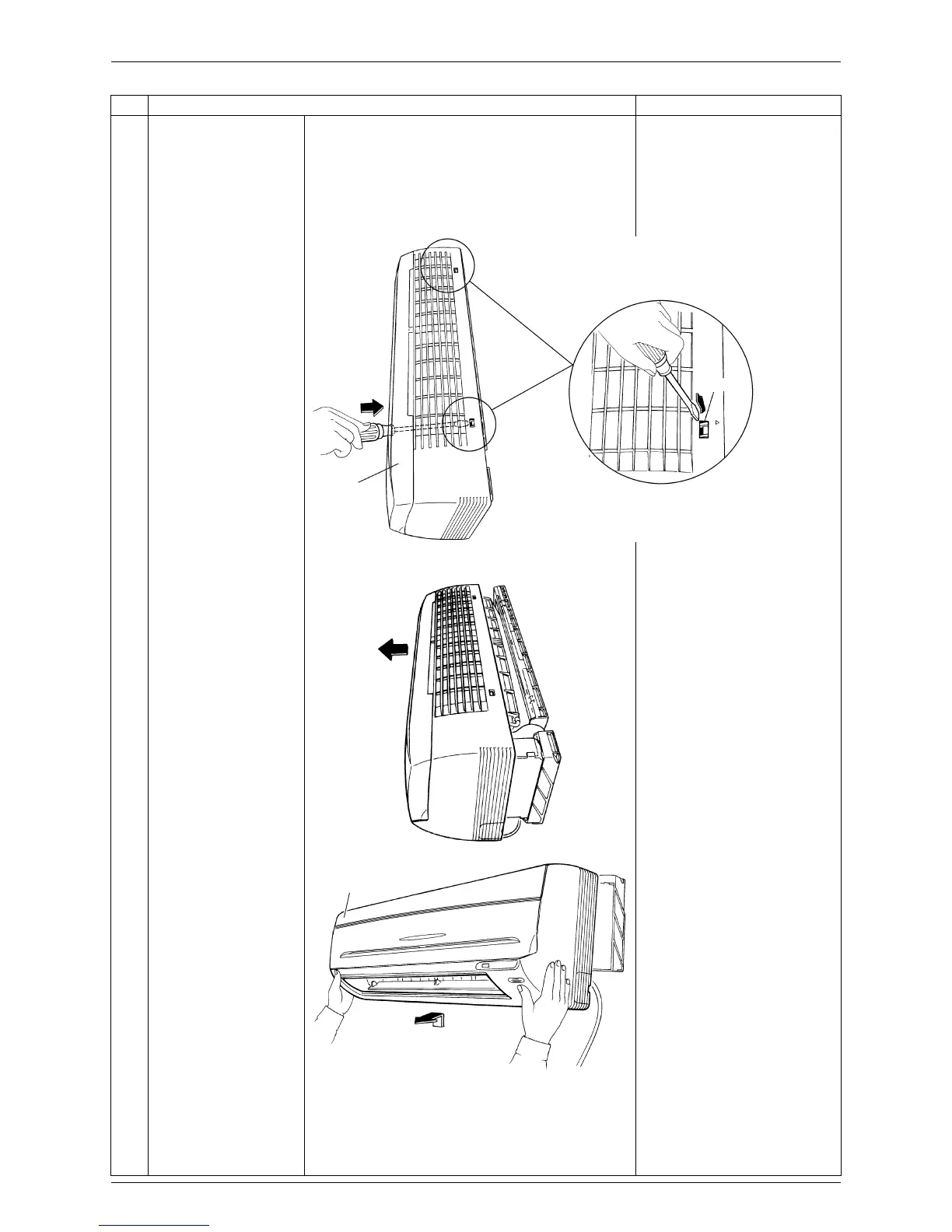

Si04-960 Removal of Front Grille
Removal Procedure 5
2
Release the 2 hooks on
the upper part.
In case that the hooks
cannot be pressed from
above, remove the front
panel and then remove
the front grille while
pushing the hook
through a clearance
between the front grille
and the heat
exchanger.

At the upper part there are 2
hooks.

Release the hooks by
pressing knobs with a flat
screwdriver.
3
The front grille can be
removed by pulling out
the upper part forward
and lifting up the lower
part.

When reassembling the
front grille, make sure
whether each hook is set as
it was.
Step Procedure Points
Front
grille
Hook
(R2519)
(R2520)
Front grille
(R2521)
