Si04-960 Removal of Air Filter
Removal Procedure 3

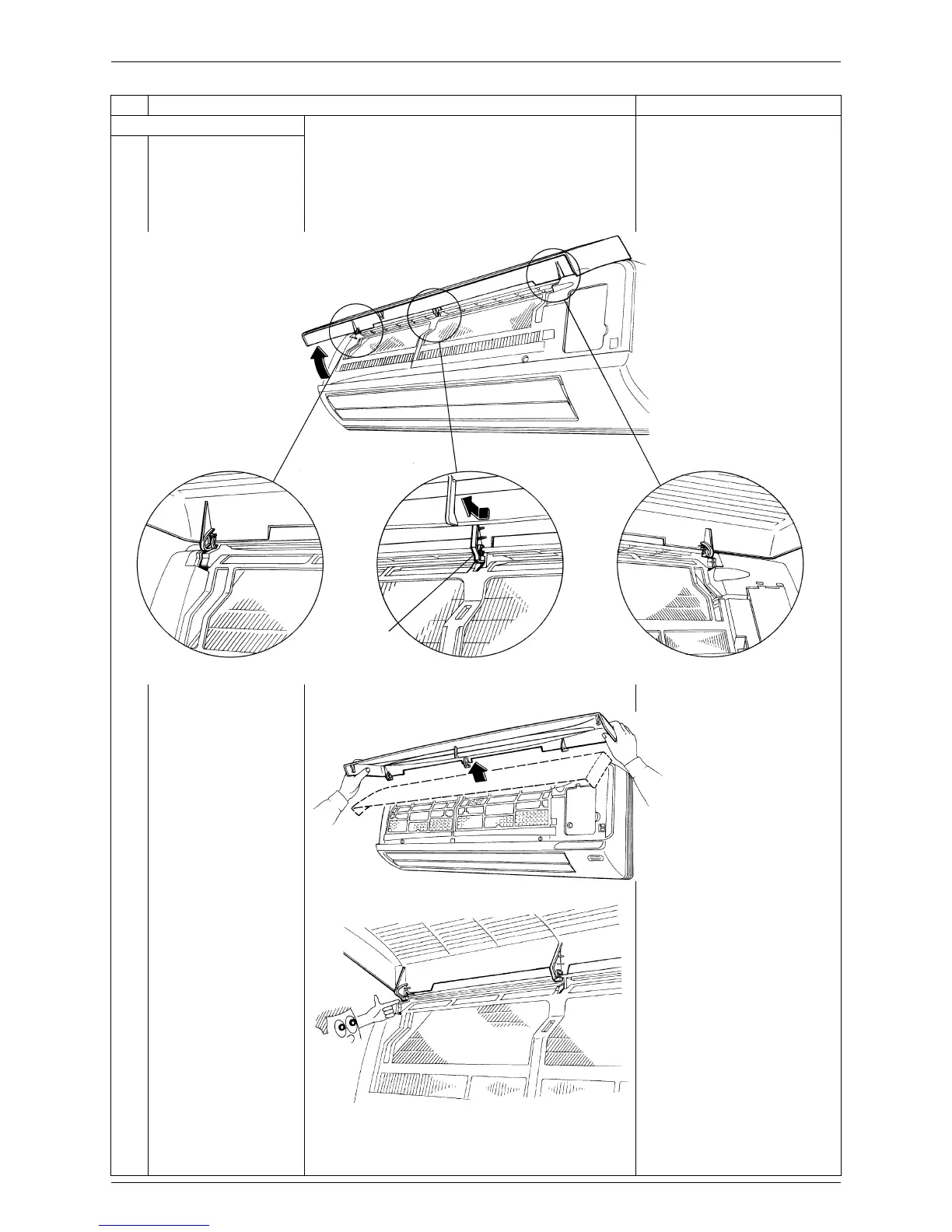

3. Remove the front panel.
1
Open up the panel to
the position higher than
where it stops.
Support the front panel by one
hand, while remove the rotation
axis at the upper center by the
other hand.
2
Remove the front panel
from the unit.
When reassembling the front
panel, make sure that the
rotation axes are in the guide
groove, and then shut the
panel.
Step Procedure Points
Slide the center rotation axis to the left and remove it out.
Rotation axis
(R2512)
(R2513)
(R2514)
To Next Page
