SiENBE04-507A Indoor Unit
Removal Procedure 159

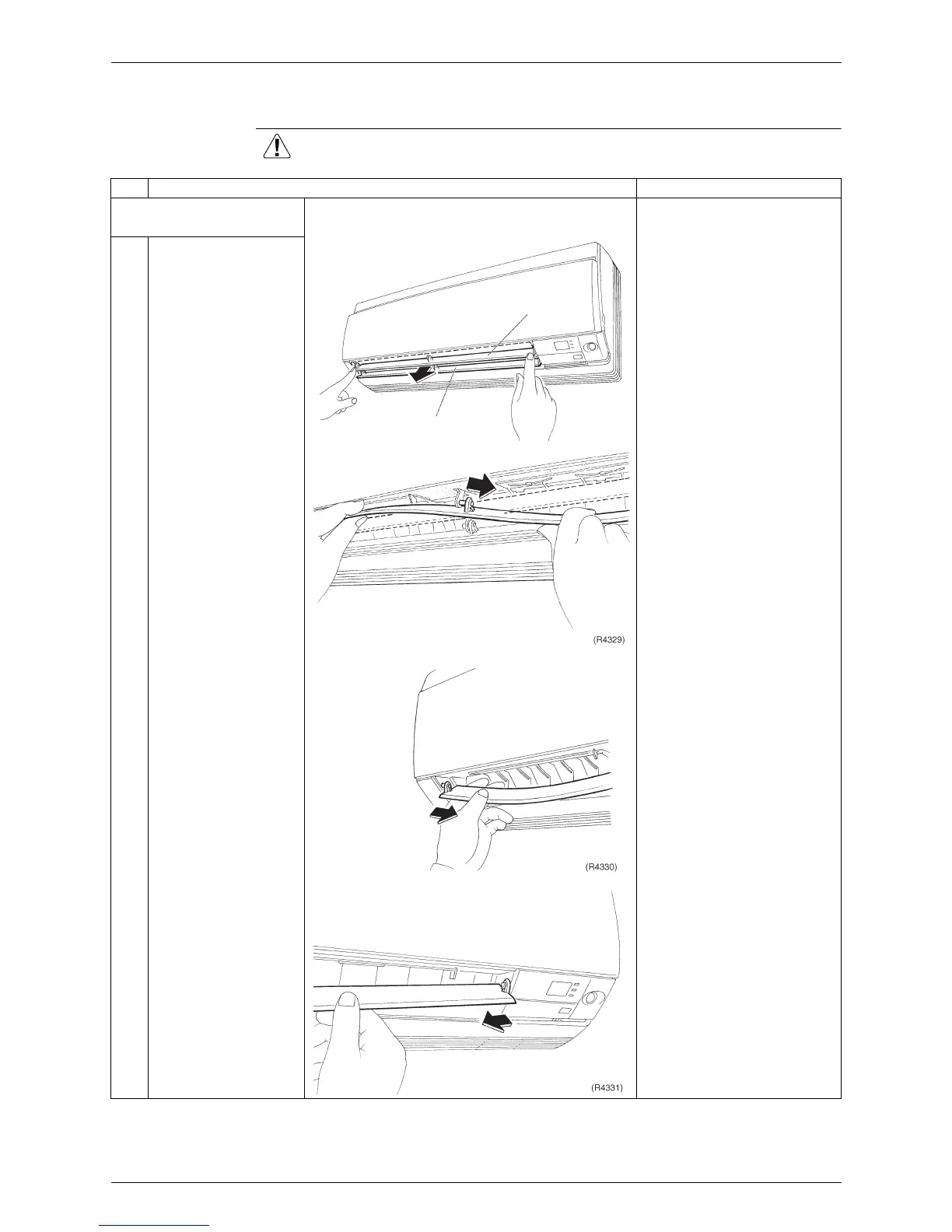

1.4 Removal of Horizontal Blades and Vertical Blades
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Removing the horizontal
blade (large)
1
2
3
4
Open the horizontal
blade (large).
Unfasten the centre
fixing shaft while
bending the horizontal
blade slightly.
Unfasten the left fixing
shaft of the horizontal
blade (large).
Unfasten the right fixing
shaft of the horizontal
blade (large).
Cautions on Mounting
Mount the large horizontal
blade to the upper side and
the small horizontal blade to
the lower side.
Do not put them in the
wrong place.
There is a key alignment
mark at the right side. Insert
the key first while turning.
After key alignment at the
right side, mount the flap
first to the centre fixing shaft
and then to the left fixing
shaft.
Horizontal blade (large)
Horizontal blade (small)
