Daikin FTXS35DAVMW(L) User Manual

SiENBE04-507A Indoor Unit
Removal Procedure 165
1.6 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

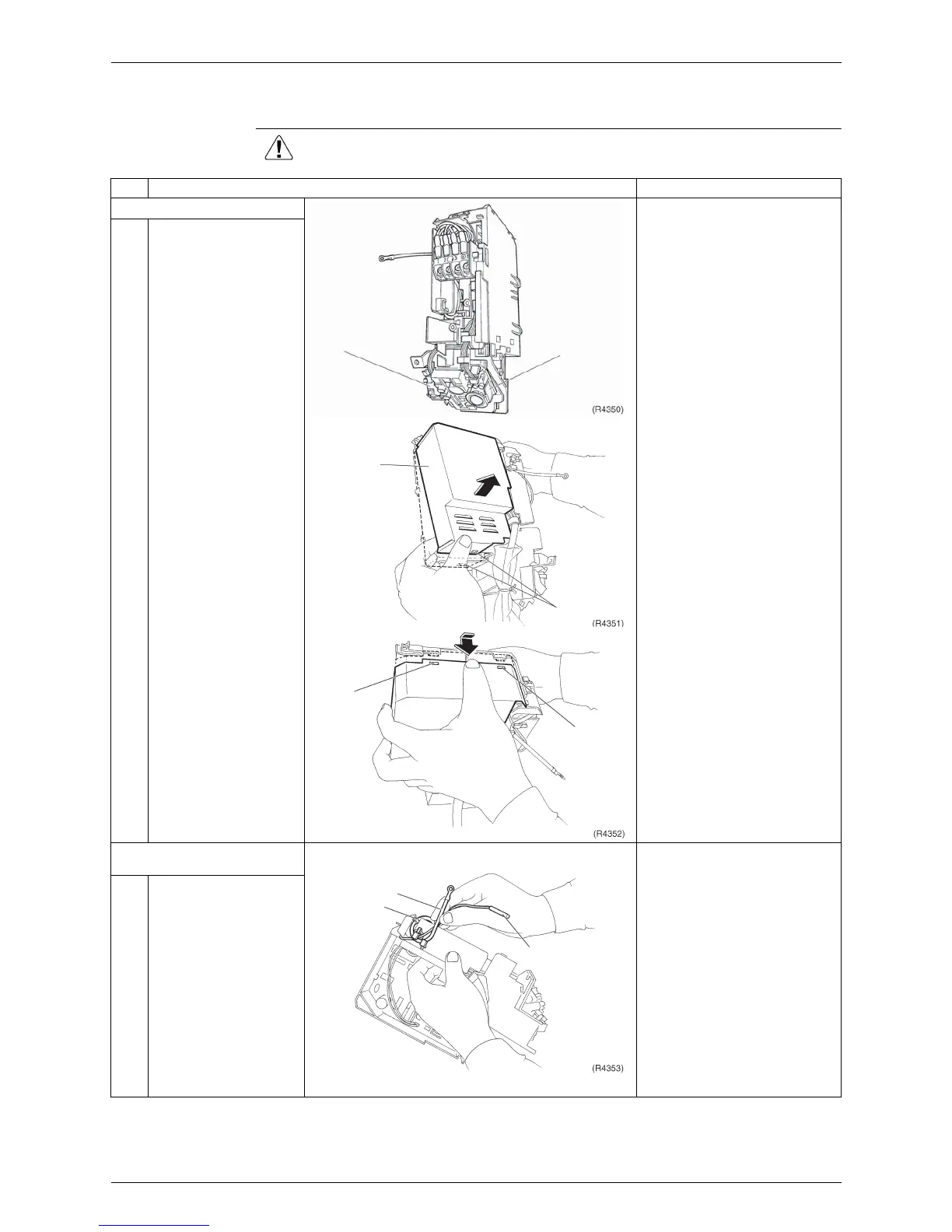

1. Removing the shelter
1
2
3
The figure shows the
appearance of the
electrical box.
Open the shelter (at the
back).
Push the upper centre
of the shelter and
unfasten the hooks at
the upper 2 positions of
the shelter.
Preparation
 Remove the electrical box
according to the “Removal
of Electrical Box.”
2. Removing the heat
exchanger thermistor
1
Remove the heat
exchanger thermistor
and disconnect the
earth wire.
Earth wire
Clamp
Heat exchanger
thermistor
Signal receiver
PCB
Signal receiver unit
Shelter (back)
Hooks
Hook
Hook
