Main Functions SiENBE04-507A
48 Function and Control
1.2 Air Flow Direction Control
Power-Airflow
Dual Flaps
The large flaps send a large volume of air downwards to the floor. The flap provides an optimum
control area in cooling, heating and dry mode.
Heating Mode
During heating mode, the large flap enables direct warm air straight downwards. The flap
presses the warm air above the floor to reach the entire room.
Cooling Mode
During cooling mode, the flap retracts into the indoor unit. Then, cool air can be blown far and
pervaded all over the room.
Wide-Angle
Louvres
The louvres, made of elastic synthetic resin, provide a wide range of airflow that guarantees a
comfortable air distribution.

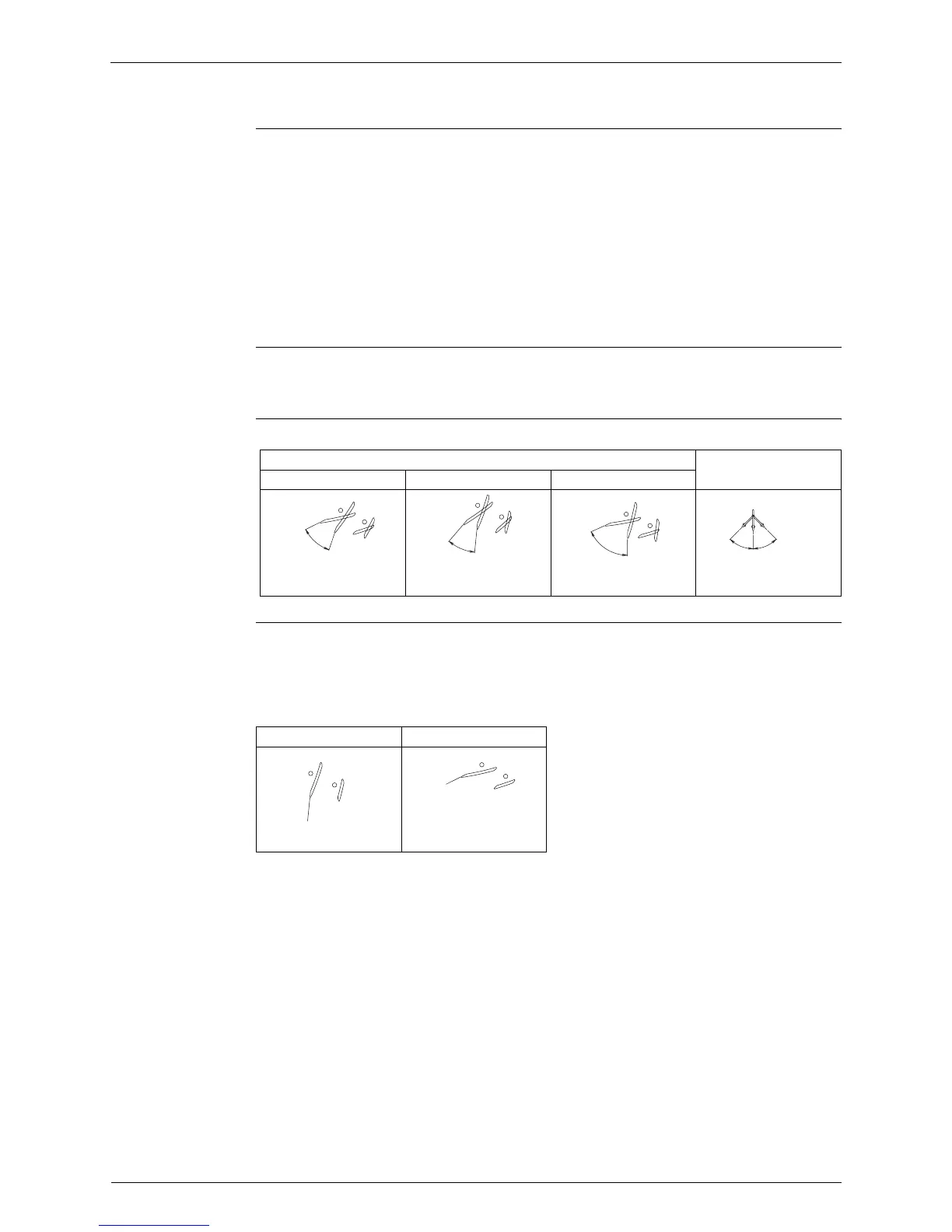

Auto-Swing The following table explains the auto swing process for heating, cooling, dry and fan :
COMFORT
AIRFLOW Mode
The vertical swing flap is controlled not to blow the air directly on the person in the room.
The airflow rate is controlled automatically within the following steps.
Cooling: L tap – MH tap (same as AUTOMATIC)
Heating: ML tap – M tap
The latest command has the priority between POWERFUL and COMFORT AIRFLOW.
Vertical Swing (up and down)
Horizontal Swing
(right and left: manual)
Cooling / Dry Heating Fan
(R4281)
10
°
50
°
30
°
65
°
(R4282)
(R4283)
5
°
70
°
45
°
(R4284)
45
°
Heating Cooling
70
°
(R4303)
5
°
(R4302)
