Indoor Unit SiENBE04-507A
166 Removal Procedure

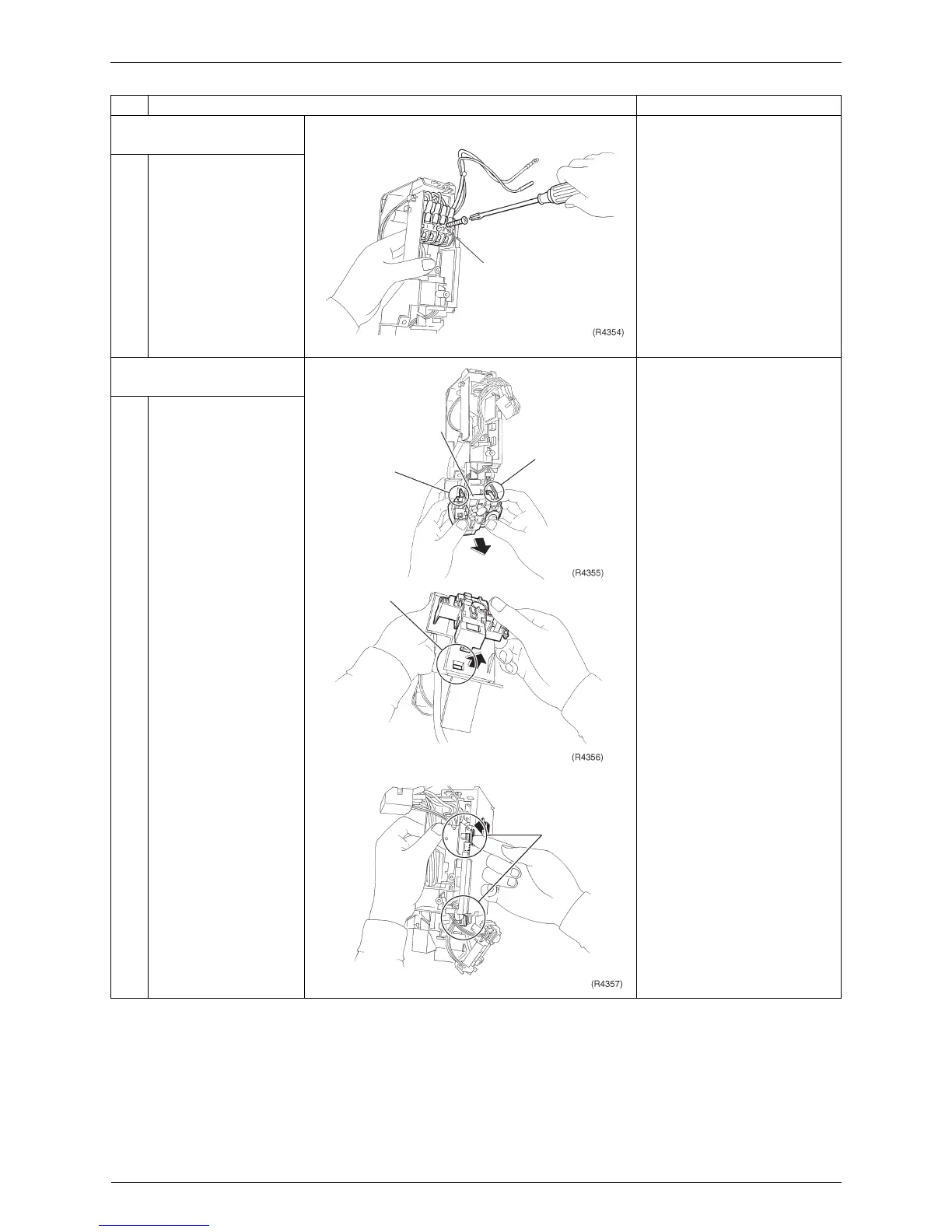

3. Removing the terminal
board
1
Dismount the terminal
board by removing the
screw.
4. Removing the signal
receiver unit
1
2
Remove the signal
receiver unit by
unfastening the hooks
(one each at the right
and left).
Remove the electrical
box (cover) by
unfastening the hooks
at 2 positions.
Step Procedure Points
Terminal board
Signal receiver unit
Hook
Hook
Hook
Hooks
