SiENBE04-507A Indoor Unit

Removal Procedure 161

Step Procedure Points

3. Removing the vertical

blade

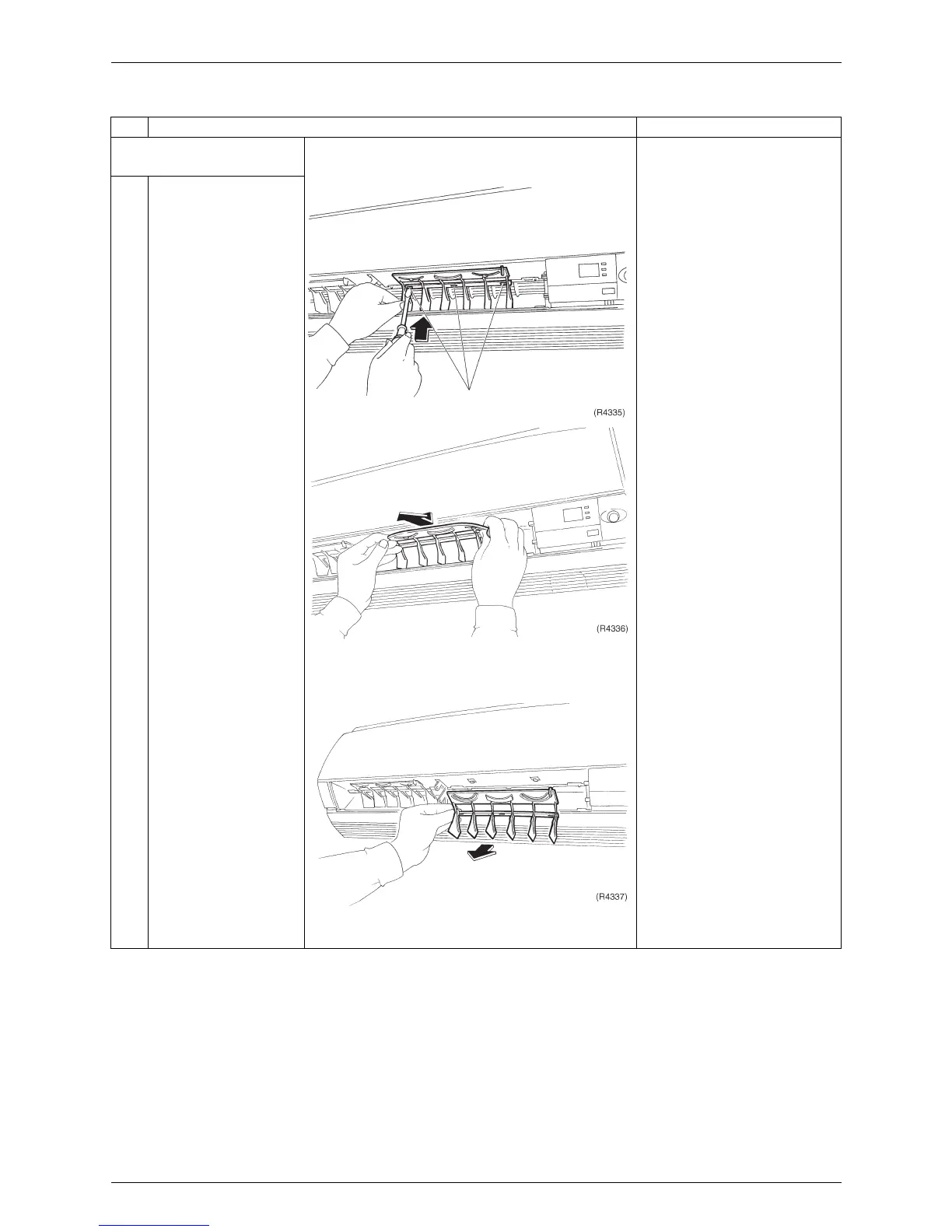

Unfasten the hooks at

the shaft mounting part

by pressing them with a

flat screwdriver.

Unfasten the hooks at

the upper 2 positions.

Remove the vertical

blade toward yourself.

 Six vertical blades are

united as a set.

(It is impossible to replace

only one blade.)

 The set of blades is not

marked for difference

between right and left.

Hooks
