Instruction SiENBE04-507A
82 System Configuration
Oudoor Unit
Indoor Unit

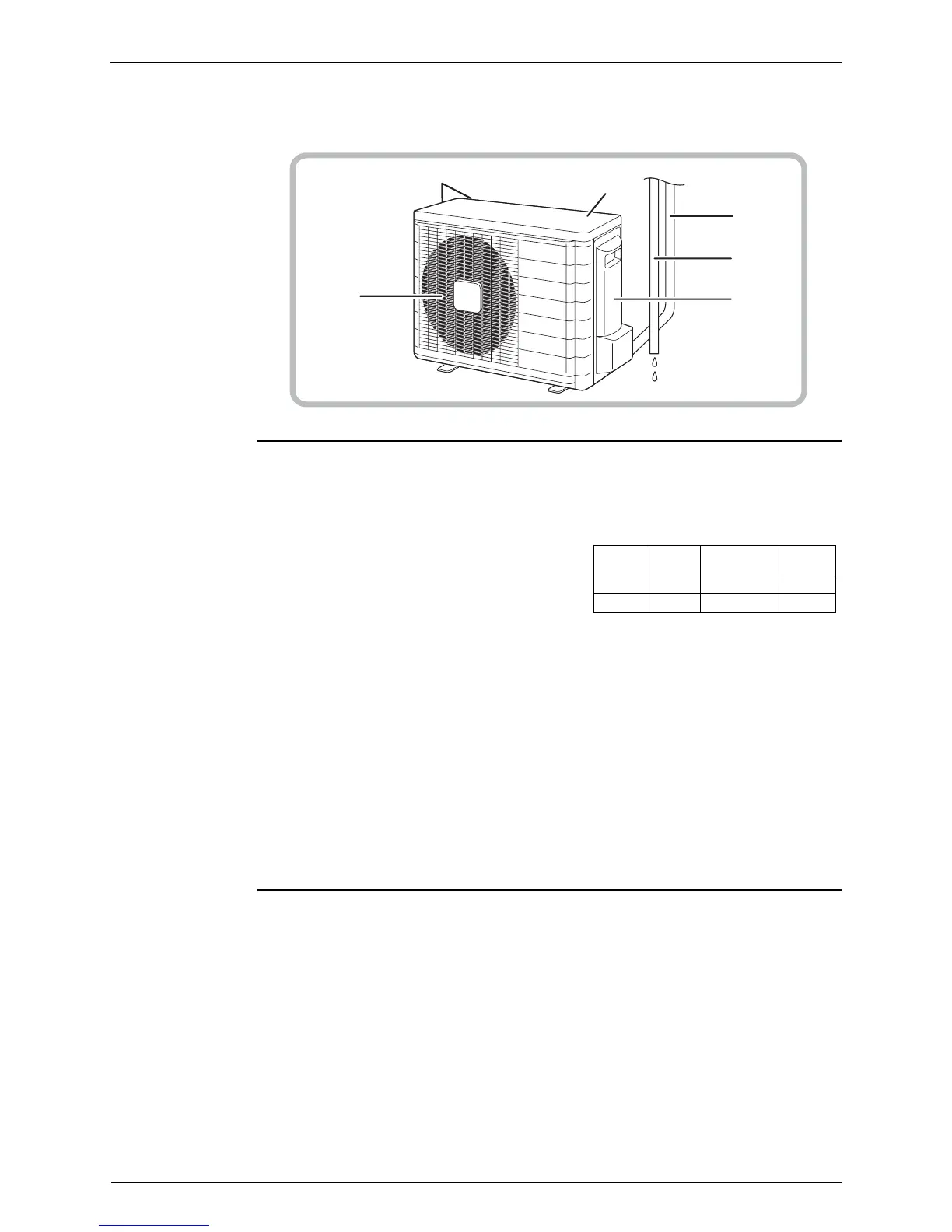

Outdoor Unit
Appearance of the outdoor unit may differ from some models.
1. Air filter
2. Titanium Apatite Photocatalytic Air
purifying filter:
• These filters are attached to the inside of
the air filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
• It senses the air temperature around the
unit.
7. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switches between normal
operation and energy saving operation.
(page 94)
8. Display
9. Air outlet
10. Flaps (horizontal blades):
(page 89)
11. Louvers (vertical blades):
• The louvres are inside of the air outlet.
(page 89)
12. Indoor Unit ON/OFF switch:
(page 87)
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table.:
• This switch is useful when the remote
control is missing.
13. Operation lamp (green)
14. TIMER lamp (yellow):
(page 96)
15. INTELLIGENT EYE lamp (green):
(page 94)
16. Signal receiver:
• It receives signals from the remote control.
• When the unit receives a signal, you will
hear a short beep.
• Operation start ..............beep-beep
• Settings changed..........beep
• Operation stop ..............beeeeep
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
22. Outside air temperature sensor:
• It senses the ambient temperature around
the unit.
19
22
20
21
18
17
Mode Temperature
setting
Air flow
rate
F(C)TKS COOL 22°C AUTO
F(C)TXS AUTO 25°C AUTO
To Next Page
