ESIE17-19C | Part 5. Appendix 5.4. Piping diagram
Optimized Heating 4
19/08/19 | Version 1.1 Page 117

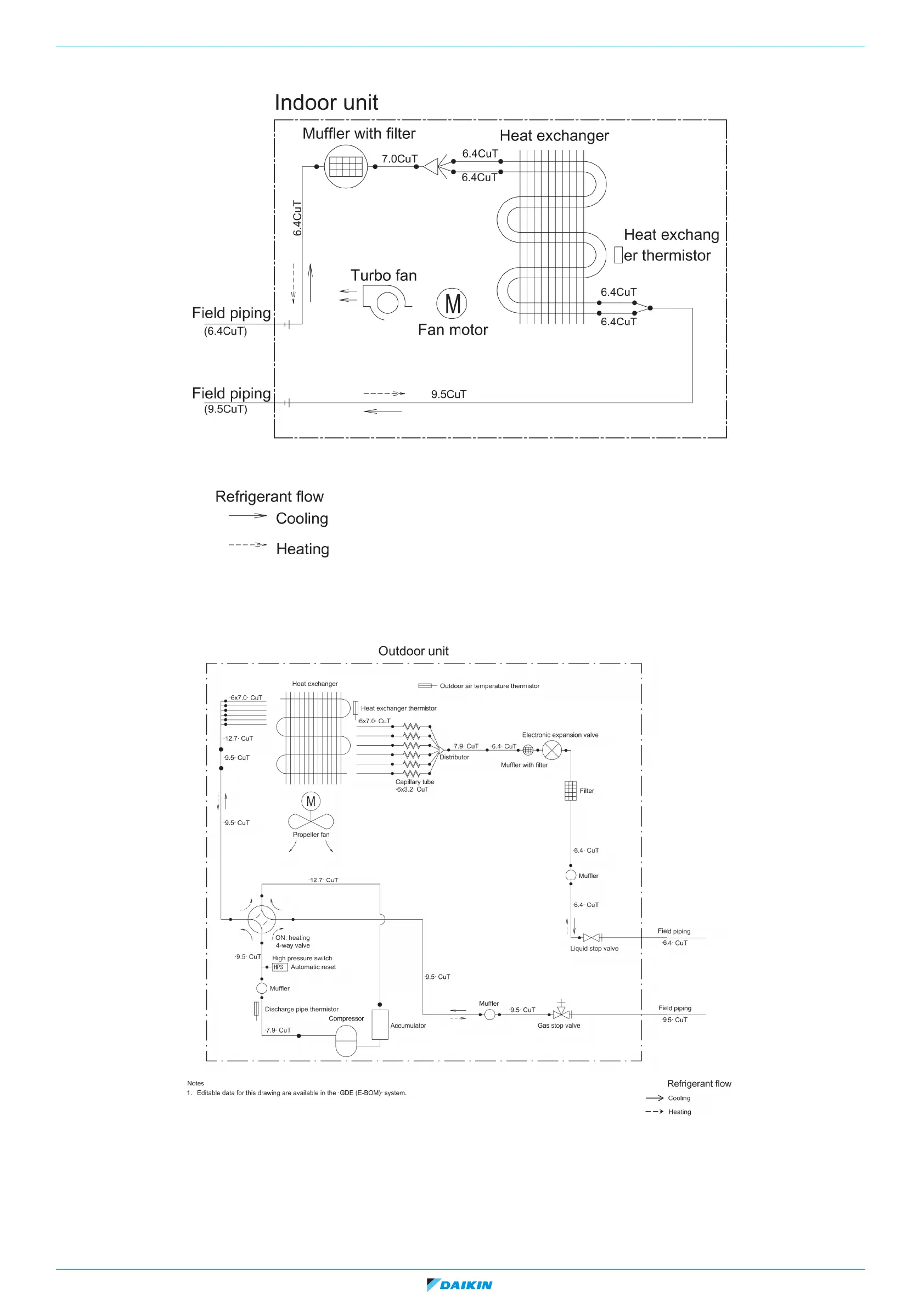

Figure 5-16: FVXM-F
5.4.2. Outdoor unit
Figure 5-17: RXTA-N, RXTM-N, RXTP-N, RXTP-N9, ARXTP-N
