ESIE17-19C | Part 3. Repair 3.3. Unit specific repair procedures
19/08/19 | Version 1.1 Page 77
Optimized Heating 4

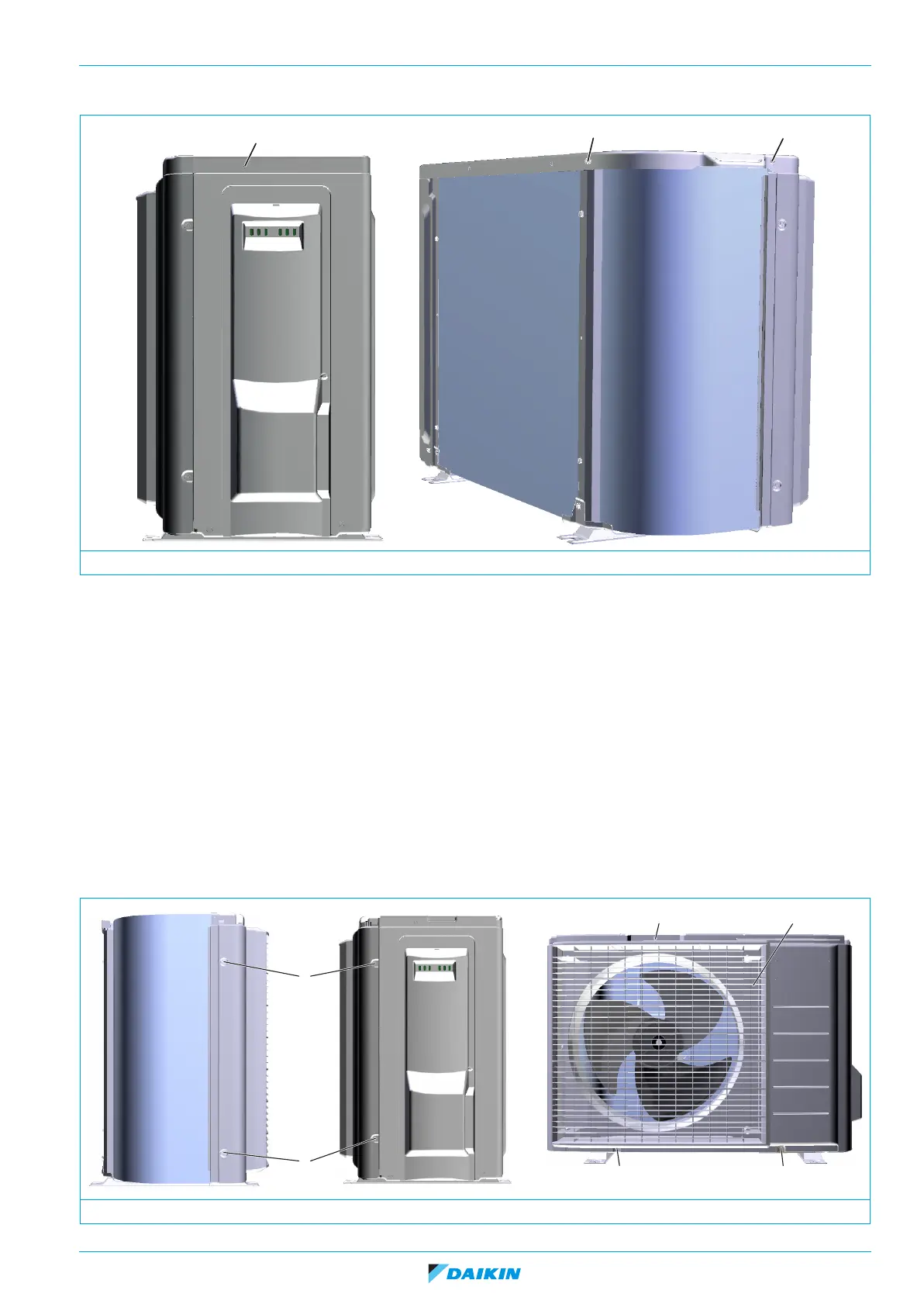

Figure 3-12: Removing the top plate
3.3.2.1.3 Removing the front plate
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Remove the top plate.
2. Loosen and remove the 8 screws (1) that fix the front plate.
Figure 3-13: Removing the front plate
1. Screw
1. Screw
