ESIE17-19C | Part 3. Repair 3.3. Unit specific repair procedures
Page 78 19/08/19 | Version 1.1
Optimized Heating 4
3.3.2.1.4 Removing the compressor sound insulation
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Remove the top plate.
2. Remove the front plate.
3. Remove the compressor sound insulation (untwist the cord and remove the insulation).

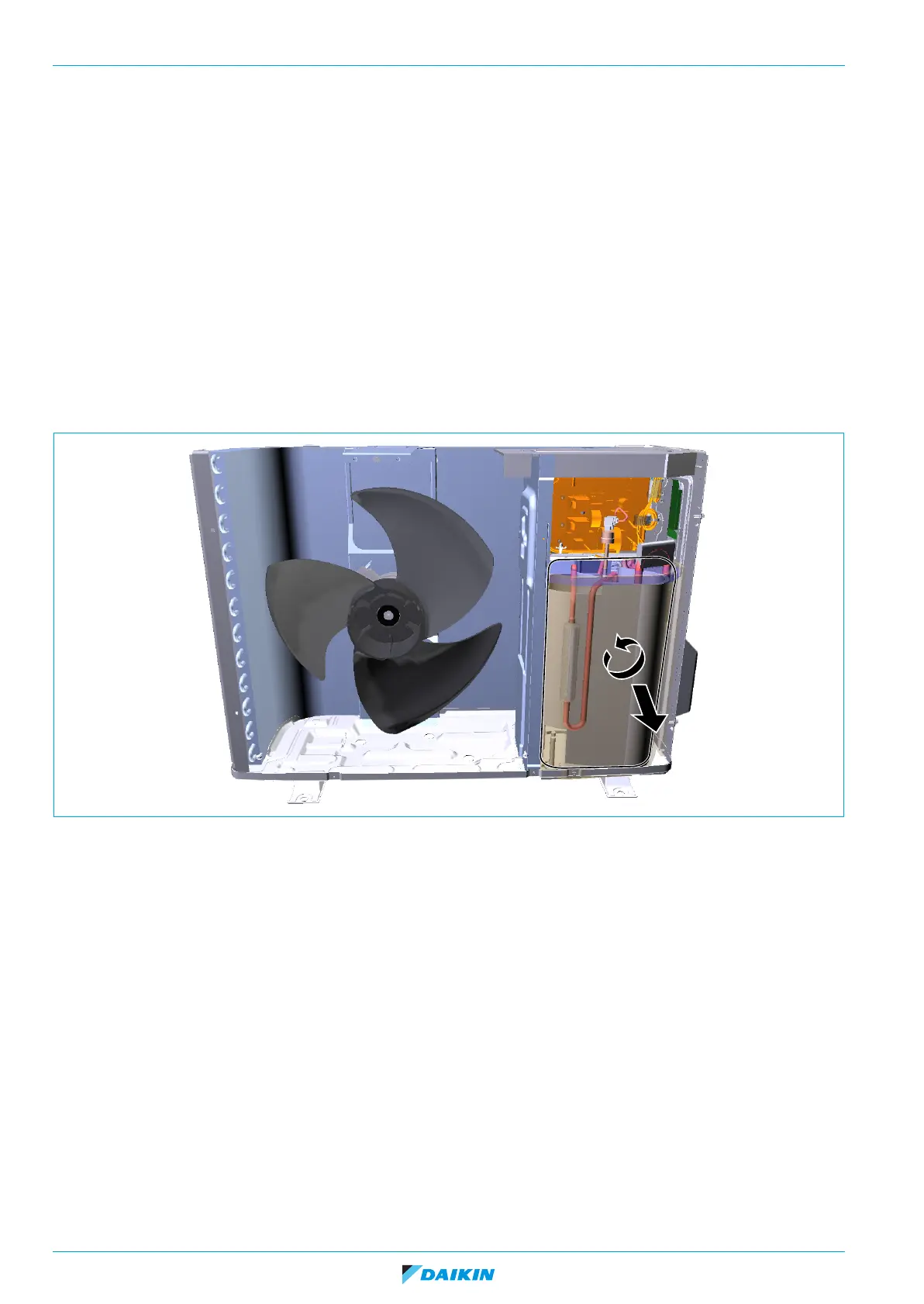

Figure 3-14: Removing the compressor sound insulation
