ESIE17-19C | Part 3. Repair 3.3. Unit specific repair procedures
Page 92 19/08/19 | Version 1.1
Optimized Heating 4
2. When installing the expansion valve motor (3), lock it on the expansion valve on the CORRECT direction.

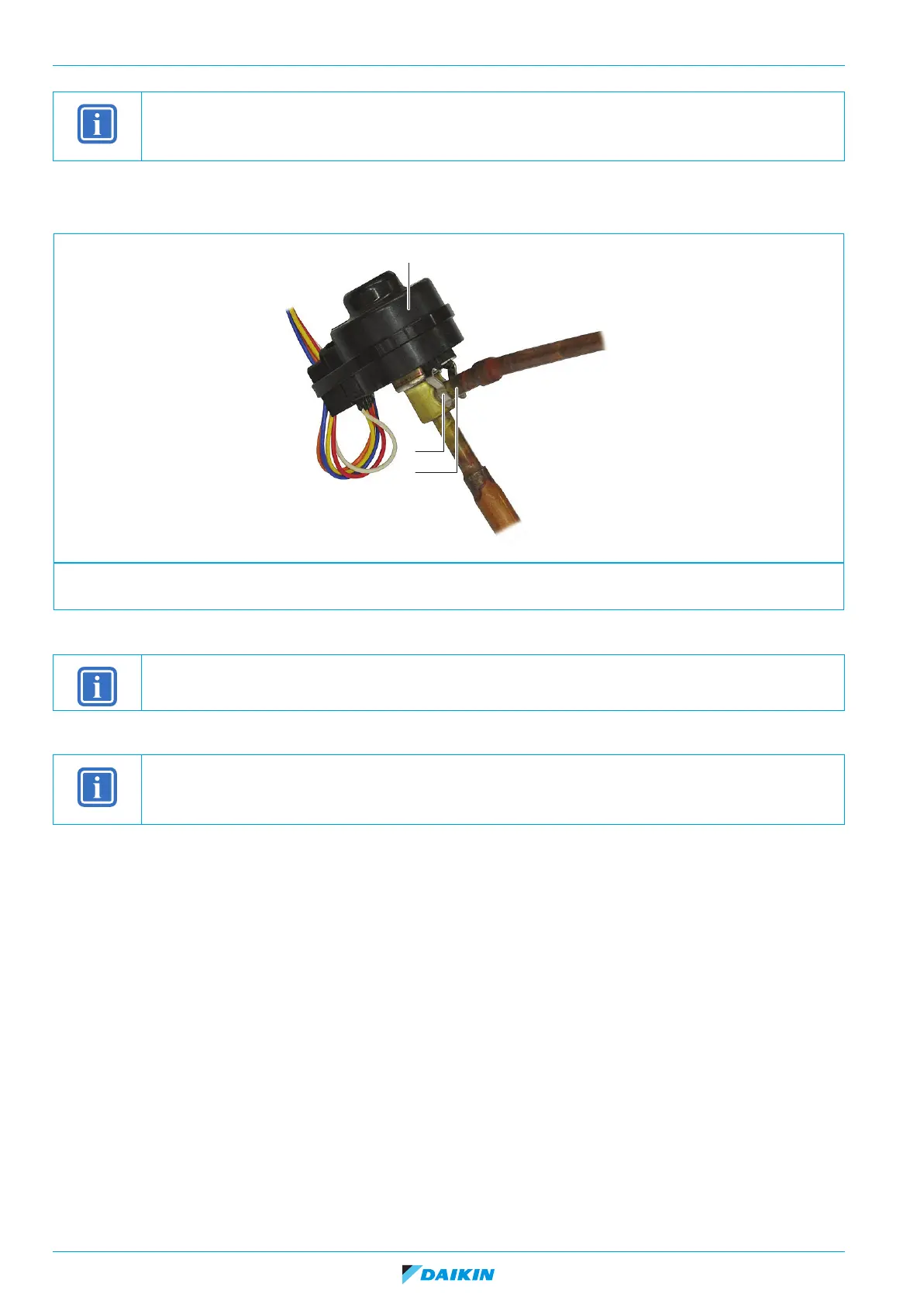

Figure 3-22: Locking the expansion valve motor
Installation with bracket
1. Proceed in reverse order.
2. When installing the expansion valve motor (1), lock it on the expansion valve.
INFORMATION
The expansion valve motor (3) is equipped with a pipe retention clip (1). The pipe retention clip (1) must be placed over
the pipe (
2) to lock the expansion valve motor (3).
1. Pipe retention clip 3. Expansion valve motor
2. Pipe
INFORMATION
Replace all tie wraps that were cut during removal.
INFORMATION
The expansion valve motor (1) is equipped with a metal bracket (2). Fit the nipples (3) of the metal bracket (2) into the
notches (
4) of the expansion valve body (5).
1
3
2
Y1S
