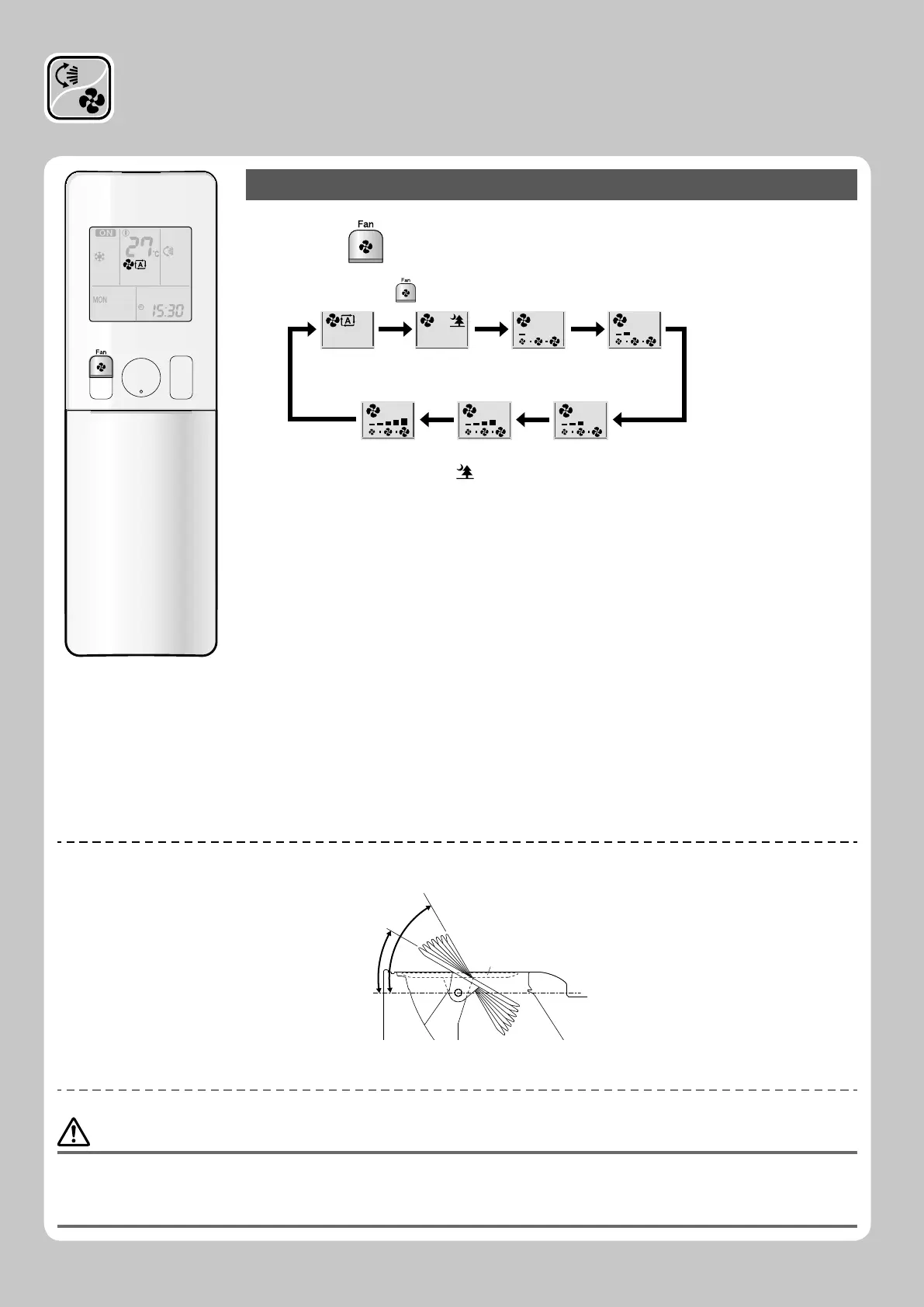

Adjusting the Airfl ow Direction
and Rate
To adjust the airfl ow rate setting
Press .
Each pressing of • advances the airfl ow rate setting in sequence.
Auto Indoor unit quiet Low Middle low
MiddleMiddle highHigh
When the airfl ow is set to “ • ”, indoor unit quiet operation will start and the noise from the
unit will become quieter.
In indoor unit quiet operation, the airfl ow rate is set to a weak level.•
In DRY or RADIANT operation, the airfl ow rate setting is not variable.•
NOTE
Note on the angles of the fl ap
The fl ap swinging range is the same by all operation. (See the fi gure.)•
Upper limit
Lower limit
Stop operation
45°
70°
Note on airfl ow rate setting
At smaller airfl ow rates, the cooling (heating) effect is also smaller.•
CAUTION
Always use a remote controller to adjust the angles of the fl ap. If you attempt to move it forcibly with hand when it is swinging, the mechanism •
may be broken.
Be careful when adjusting the louvers.•
Inside the air outlet, a fan is rotating at a high speed.
