Names of Parts and Operations
Read First
CAUTION
Do not lift up the unit holding the grip on the deodorising fi lter unit. (May lead to falling over)

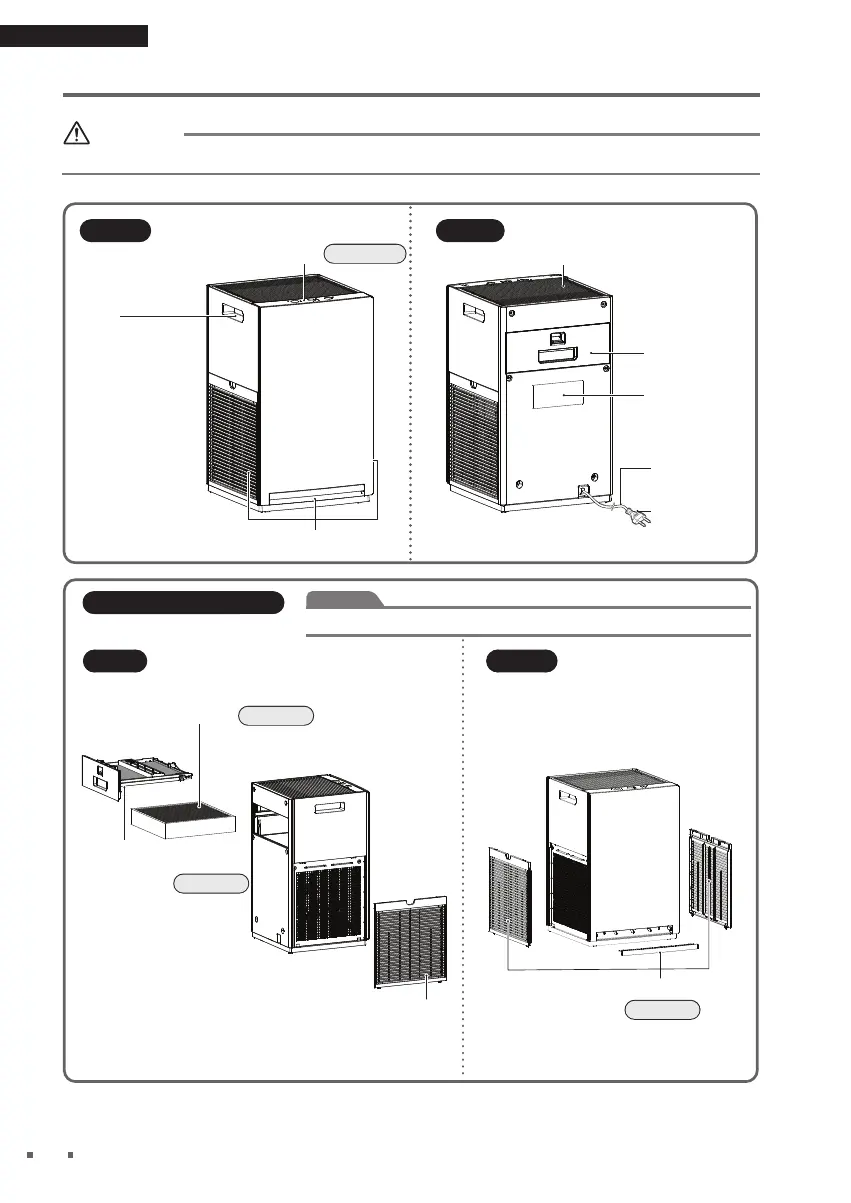

Front
Side
Back
Front
Main Removable Parts
Attention
To prevent malfunctioning, make sure to only operate the unit with all parts attached.
Operating/Indicator panel
►
Page 6, 7
Air outlet
Grip
(for carrying the unit)
Deodorising
fi lter unit
Model Name/
Production No.
Power supply
cord
Power supply
plug
Deodorising fi lter unit
(Black fi lter: Deodorising fi lter)
►
Page 14
Dust collection fi lter
(White fi lter)
►
Page 14
Air inlets
Front/Side
Pre-fi lter
►
Page 13
Pre-fi lter
