Daikin RKD50GVMV - Page 12

PCBs / Electrical Box Si001270EB

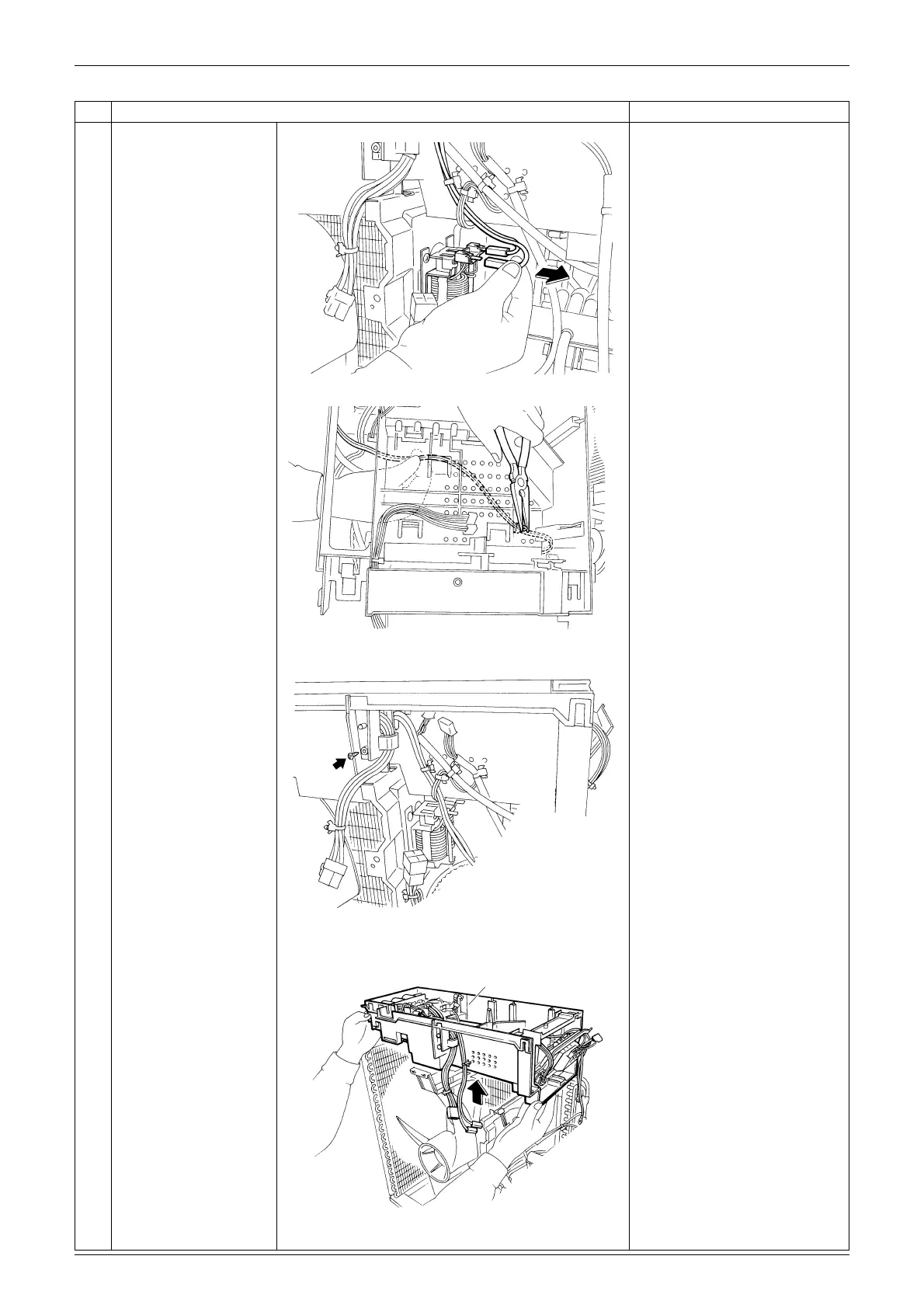

10 Removal Procedure
3
Disconnect the 2
connectors for the
reactor.
4
Pull the clamp and draw
the thermistor harness
out from the back of the
electrical box.
5
Remove the screw of
the electrical box.
6
Lift up the electrical box
and remove it.
Step
Procedure Points
(
R2716
)
(R2717)
(R17729)
Electrical box
(R16438)
