Daikin RKD50GVMV - Reactor

Si001270EB Reactor
Removal Procedure 11

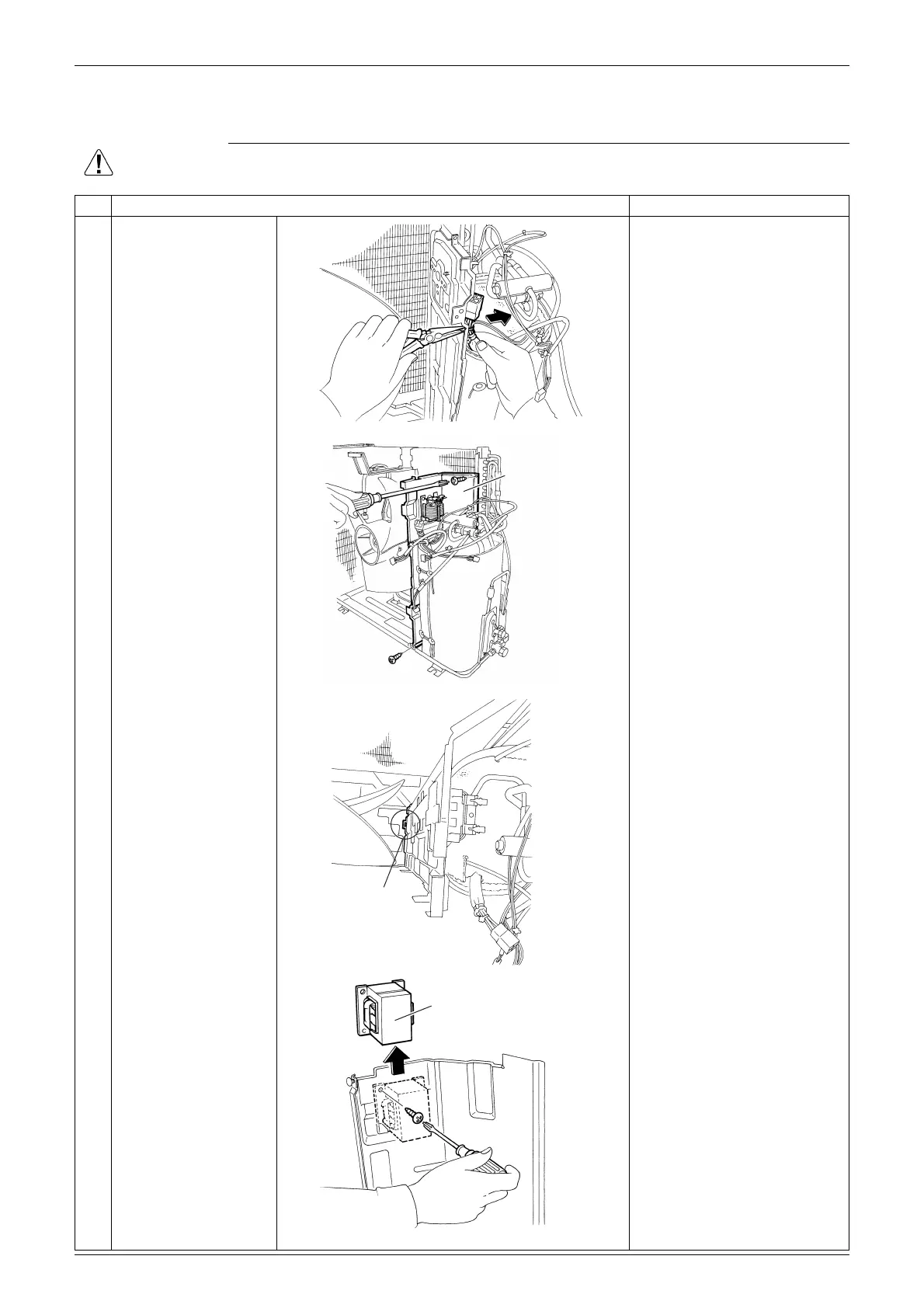

4. Reactor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
Release the clamp of
the compressor
harness with pliers.
2
Remove the 2 screws
of the partition plate.
3
Lift up the partition plate
and remove it.

The partition plate is fixed to
the bottom frame with a
hook.
4
Remove the screw and
remove the reactor.
(R2722)
Partition plate
(R2723)
(R7027)
Hook
(R2726)
Reactor
