Daikin RKD50GVMV - Outdoor Fan; Fan Motor

Outdoor Fan / Fan Motor Si001270EB

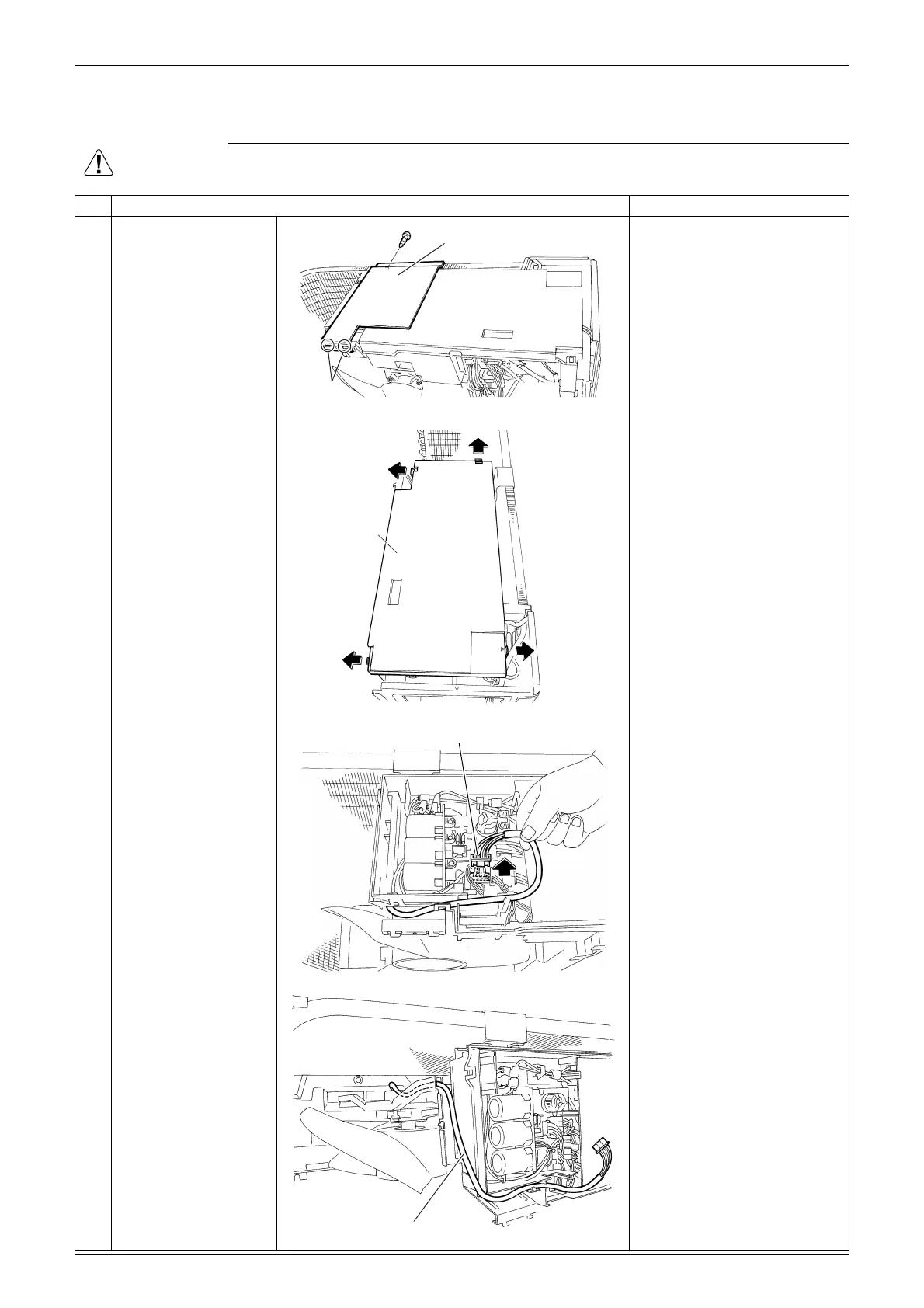

4 Removal Procedure
2. Outdoor Fan / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
Remove the screw of
the shield plate.
2
Unfasten the 2 hooks
and remove the shield
plate.
3
Release the 4 hooks of
the electrical box cover
and remove it.
4
Disconnect the
connector [S70].
[S70]: fan motor
5
The illustration shows
arrangement of the fan
motor lead wire.
(R17721)
Shield plate
Hook
Electrical
box cover
(R2690)
[S70]
(R2692)
Fan motor lead wire
(R2693)
