Si001270EB Outdoor Fan / Fan Motor

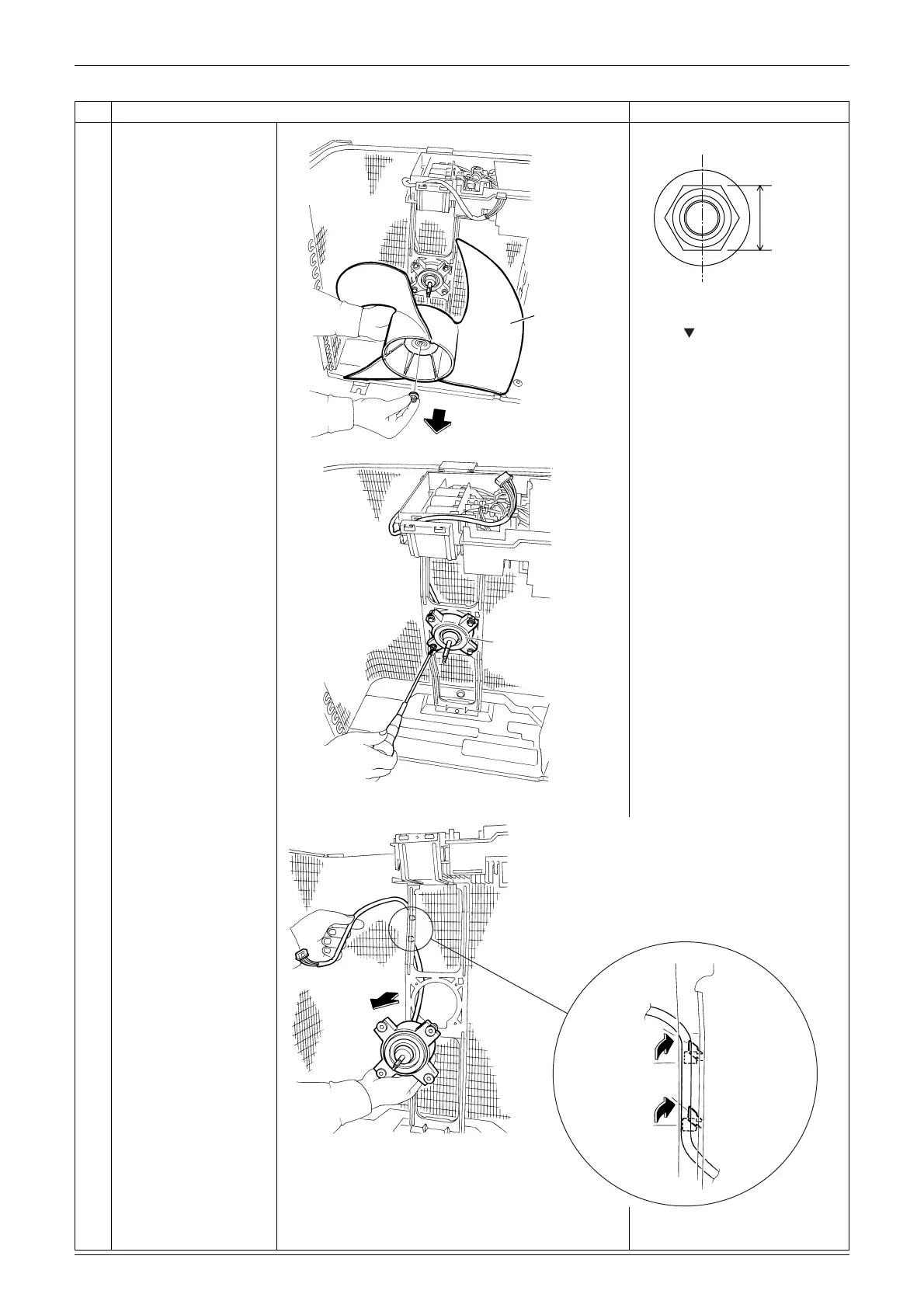

Removal Procedure 5
6
Remove the nut of the
outdoor fan.
Nut size: M6
7
Remove the outdoor
fan.
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
8
Remove the 2 lower
screws from the fan
motor first.
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan
motor may tilt down or fall
and cause injury because its
center of gravity is shifted to
the front.
9
Then, remove the 2
upper screws.
10
Release the fan motor
lead wire from the 2
hooks and pull the fan
motor out.
Step
Procedure Points
(R17525)
Outdoor fan
10 mm
(0.39 inch)
(R18954)
Fan motor
(R2696)
(R17736)
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
To Next Page
