12 Removal Procedure
5. Thermistors / Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

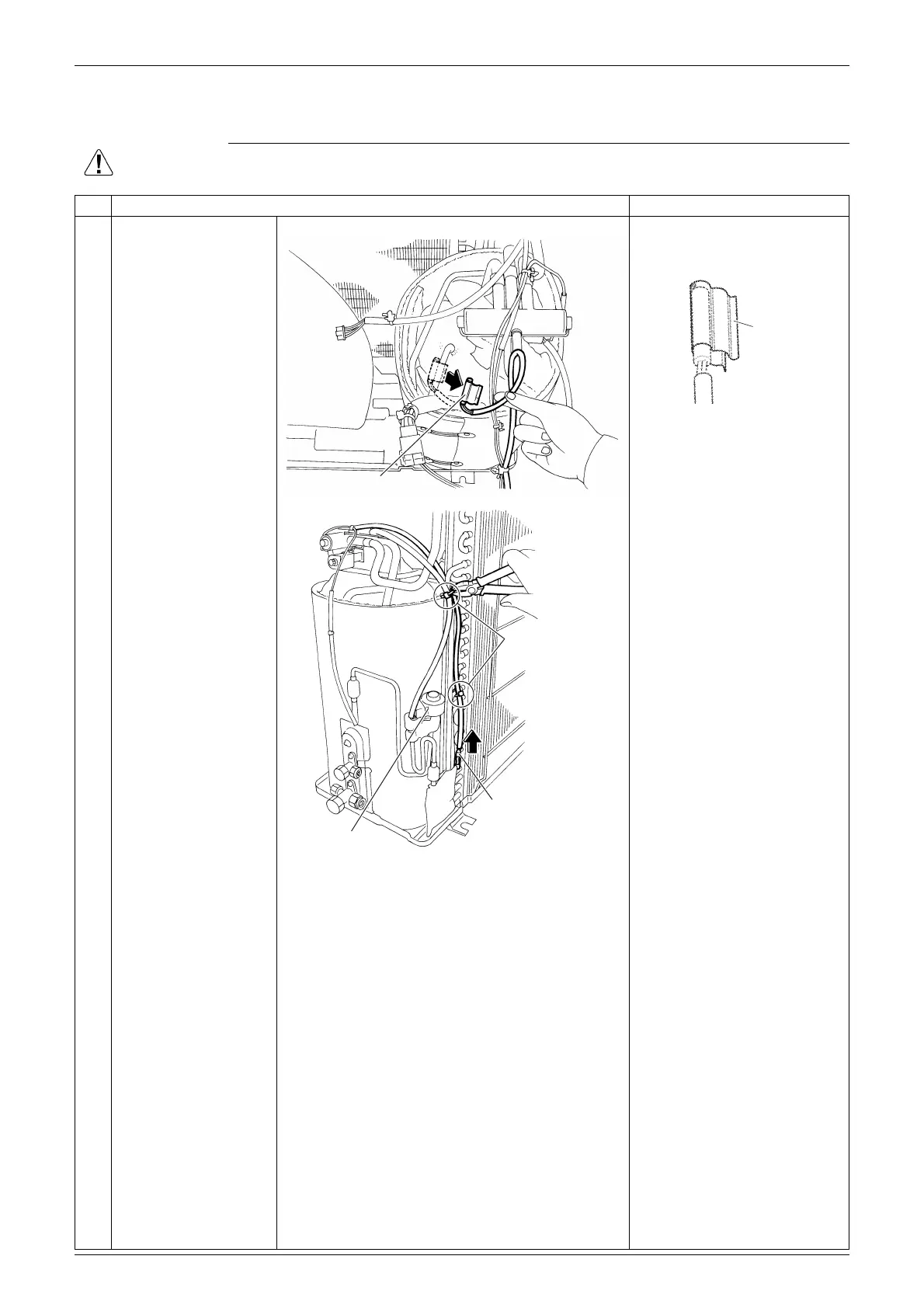

Step
Procedure Points
1
Release the discharge
pipe thermistor.

Be careful not to lose the
fixture for the thermistor.
2
Cut the 2 clamps and
pull out the outdoor
heat exchanger
thermistor.

When reassembling, tie the
harnesses of electronic
expansion valve coil and
outdoor heat exchanger
thermistor with a clamp as
illustrated.

Some models have no lower
clamp.
(R18789)
Fixture
Discharge pipe thermistor
(R19202)
(R17730)
Outdoor heat exchanger
thermistor
Electronic expansion
valve coil
Clamp
