Daikin RKD50GVMV - Page 21

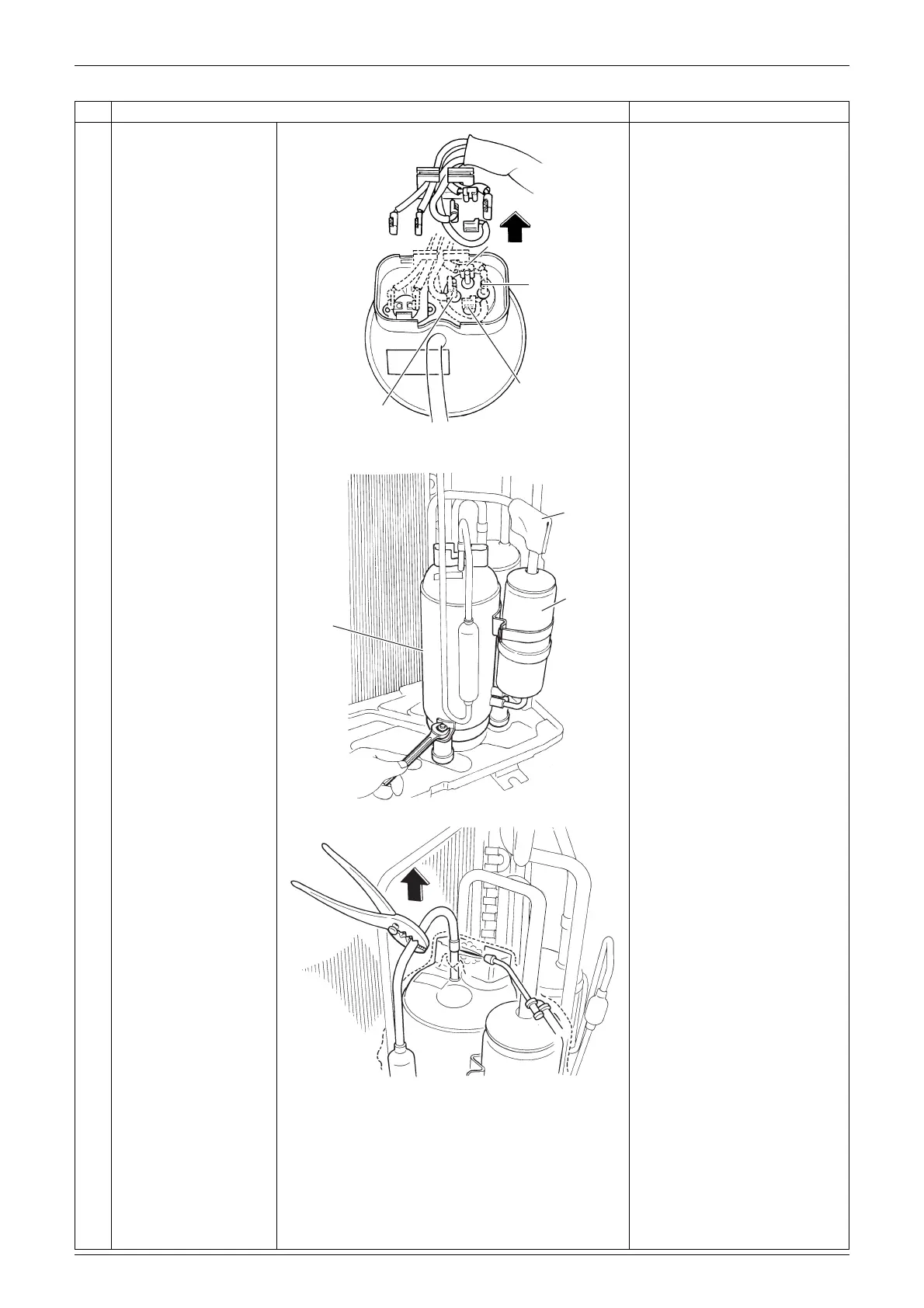

Si001270EB Compressor
Removal Procedure 19
2 Disconnect the lead
wires of the
compressor.
U: red
V: yellow
W: blue
N : brown
3
4
5
Remove the nut of the
compressor.
Remove the putty of the
accumulator.
Heat up the brazed part
of the discharge side
and disconnect it.
Step
Procedure Points
(R16561)
(V)
(W)
(N)
(U)
Compressor
Accumulator
Putty
(R17749)
(R17739)
