Daikin RXR28EV1B9 - Remove Humidifying Rotor Motor

Removal of Heater Assembly / Humidifying Rotor / Humidifying Rotor Motor Si00-777
8 Removal Procedure
3

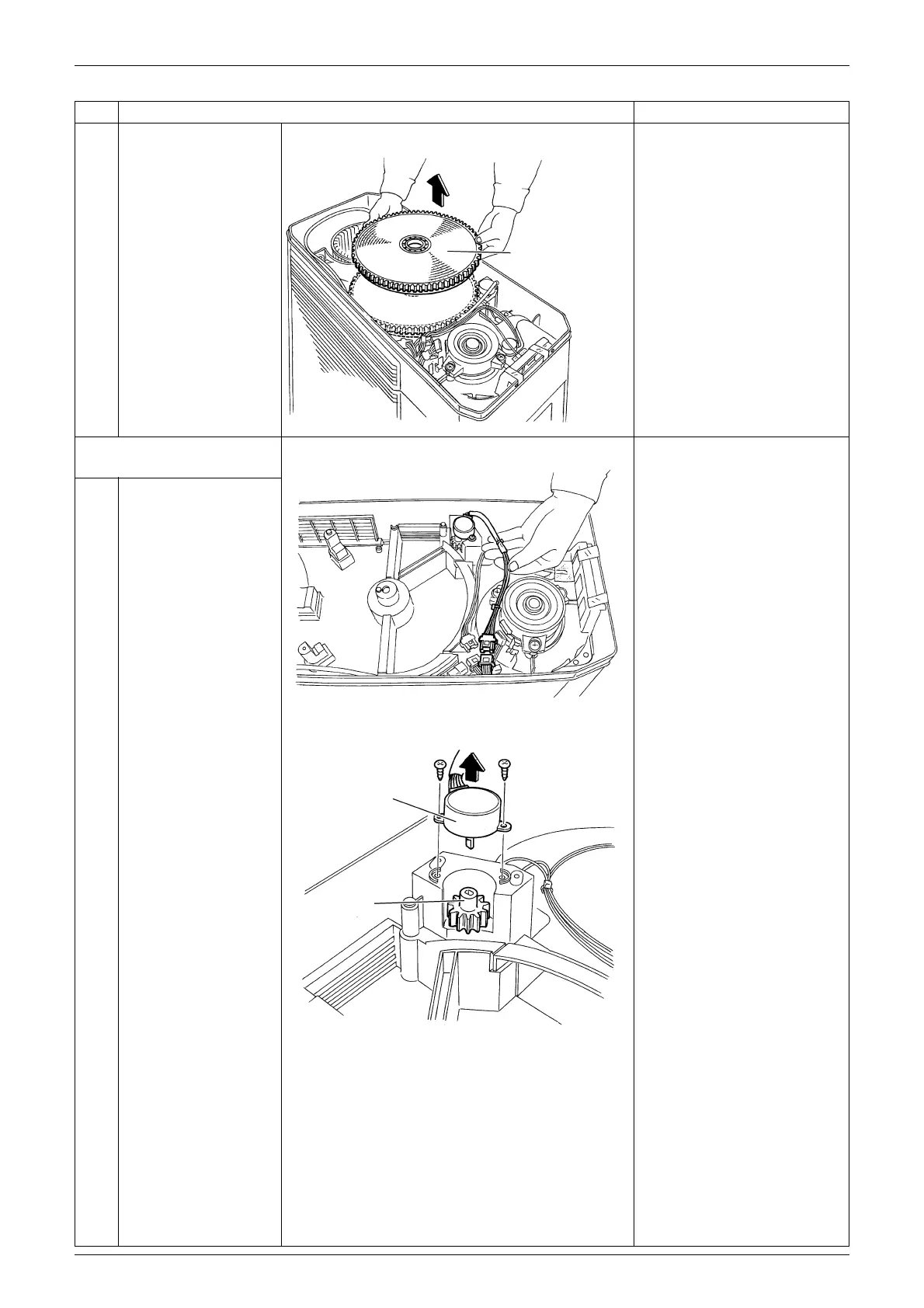

Lift the humidifying
rotor up to remove.

A heat catalyst (black) is
applied on the upper side.
4. Remove the humidifying
rotor motor.
1
The figure shows the
connector for the
humidifying rotor
motor.
2
Remove the 2 screws
and remove the
humidifying rotor
motor.
Step Procedure Points
Humidifying rotor
(Moisture adsorption
element)
(R13989)
(R5808)
Humidifying rotor
motor
Rotor driving part
(R5809)
