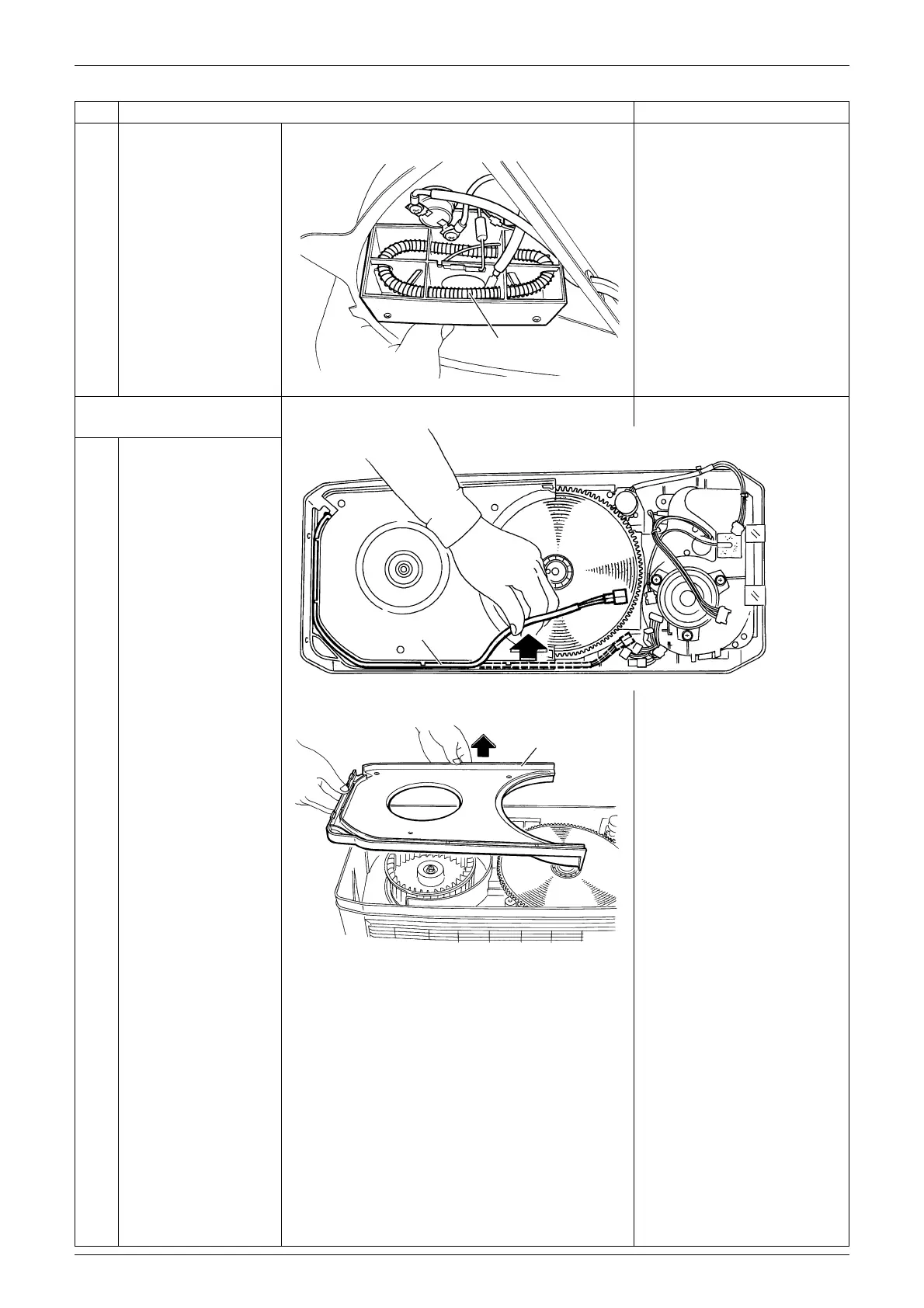

Daikin RXR28EV1B9 - Remove Humidifying Rotor

Si00-777 Removal of Heater Assembly / Humidifying Rotor / Humidifying Rotor Motor
Removal Procedure 7
7
Inside structure of the
heater assembly.
3. Remove the humidifying
rotor.
1
Release the fan motor
lead wire from the
hooks.
2
Remove the bell mouth
on adsorption side.
Step Procedure Points
Heater assembly
(R5804)
Fan motor lead wire
(R5805)
Bell mouth
(R13988)
