Daikin RXR28EV1B9 - Remove Heater Assembly and Thermal Protector

Removal of Heater Assembly / Humidifying Rotor / Humidifying Rotor Motor Si00-777

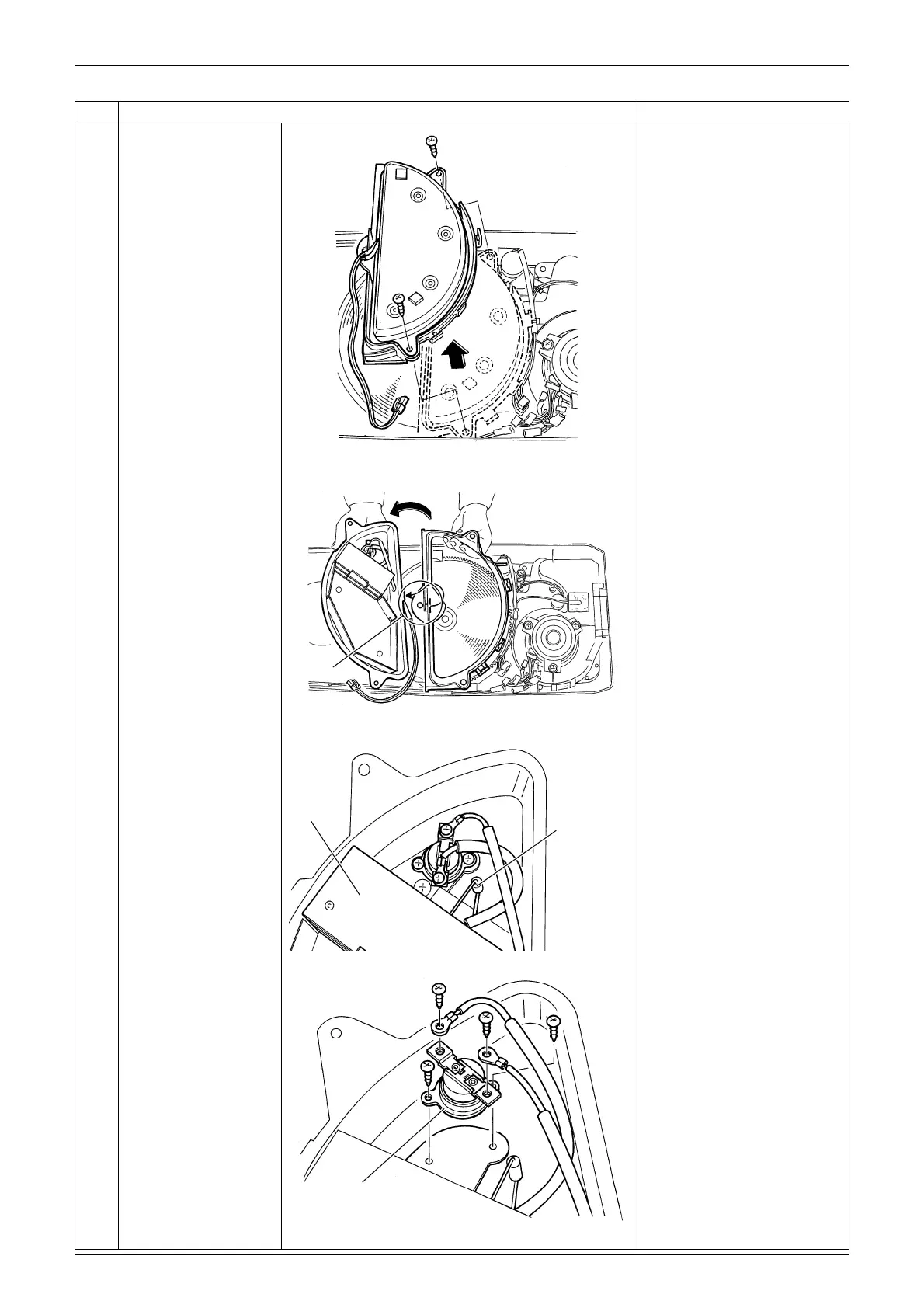

6 Removal Procedure
3
Remove the 2 screws
and remove the heater
assembly.

The heater assembly should
be replaced as an assembly
set. (Disassembling of the
assembly may cause
malfunction.)
4
Unfasten the hook.
5
Inside of the heater
assembly.

Heater and thermal fuse
should be replaced as the
heater assembly.
6
Loosen the 4 screws of
the thermal protector.

The thermal protector is
removable. Remove it
before the lead wire.
Step Procedure Points
(R5800)
Hook
(R5801)
Heater
Thermal fuse
(R5802)
Thermal protector
(R5803)
