Daikin RXR28EV1B9 - Remove Insulation Sheet and Front Panel

Removal of Outdoor Fan / Fan Motor Si00-777
14 Removal Procedure
2
Remove the electrical
box cover.
3
Remove the insulation
sheet.
3. Remove the front panel.
1
Remove the 7 screws.
Unfasten the 5 hooks in
total and remove the
front panel.
2
Remove the 4 screws
and remove the front
grille.

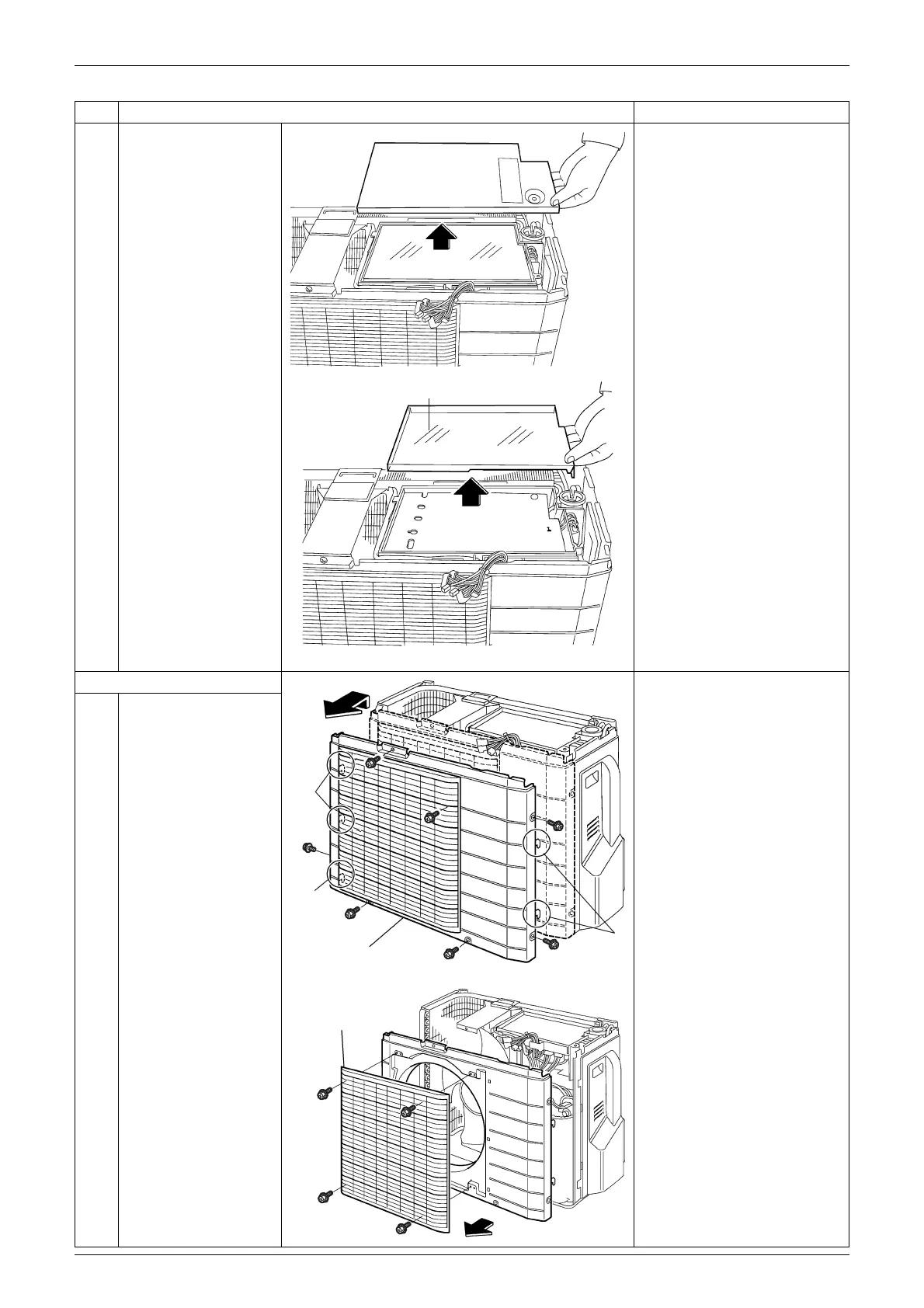

Step Procedure Points
(R5829)
(R13997)
Insulation sheet
(R13998)
Hook
Hook
Hook
Front panel
(R14000)
Front grille
