Daikin RXR28EV1B9 - Remove Outdoor Fan; Remove Fan Motor

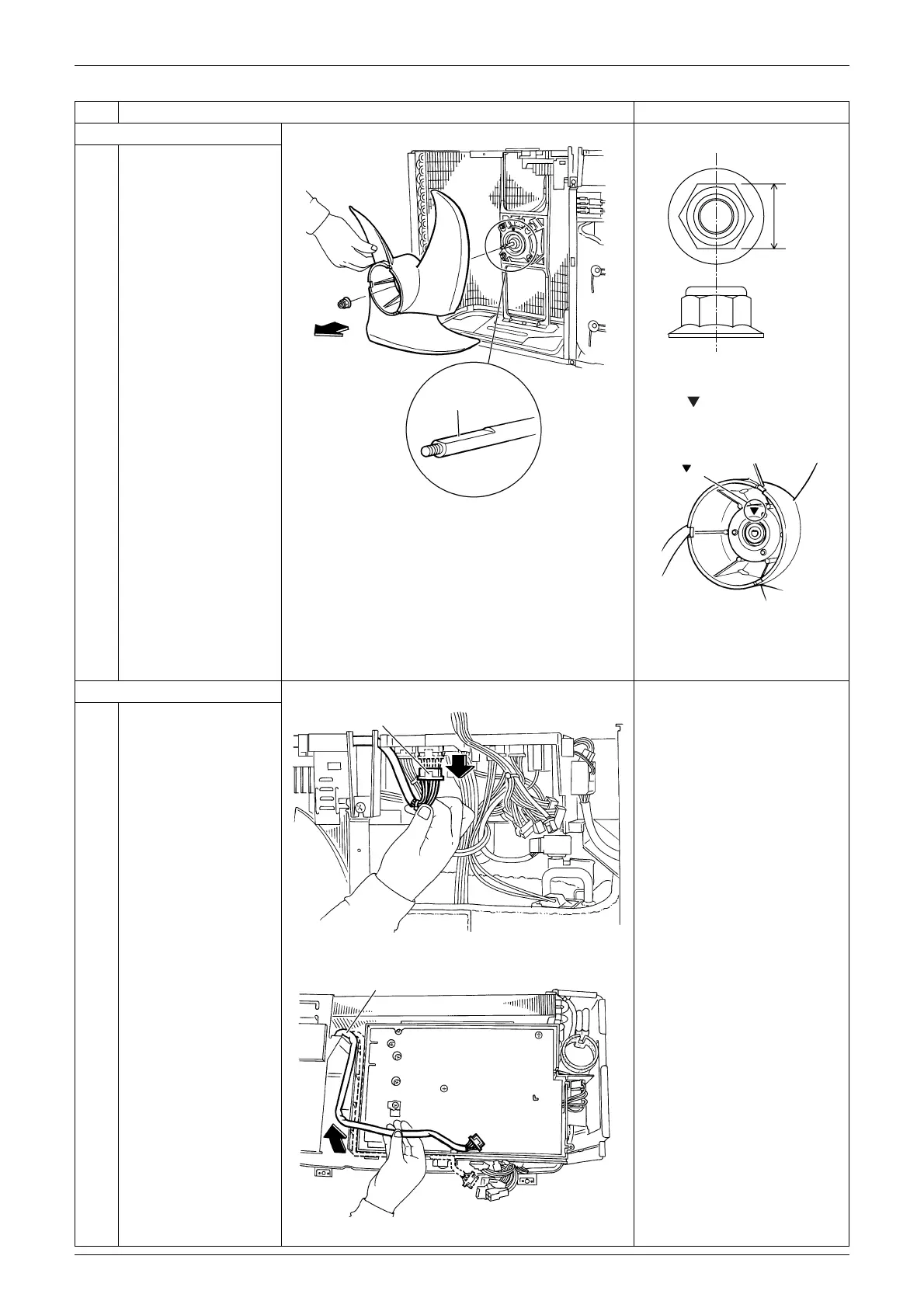

Si00-777 Removal of Outdoor Fan / Fan Motor
Removal Procedure 15
4. Remove the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
1
Remove the nut and
remove the outdoor
fan.
5. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
2
Release the fan motor
lead wire from the
hooks.
Step Procedure Points
D cut
(R18411)
10 mm
(R12236)
mark
(R5834)
(R5836)
[S70]
Fan motor lead wire
(R13999)
