Daikin RYS50B2VMB - Main PCB and Connector Management

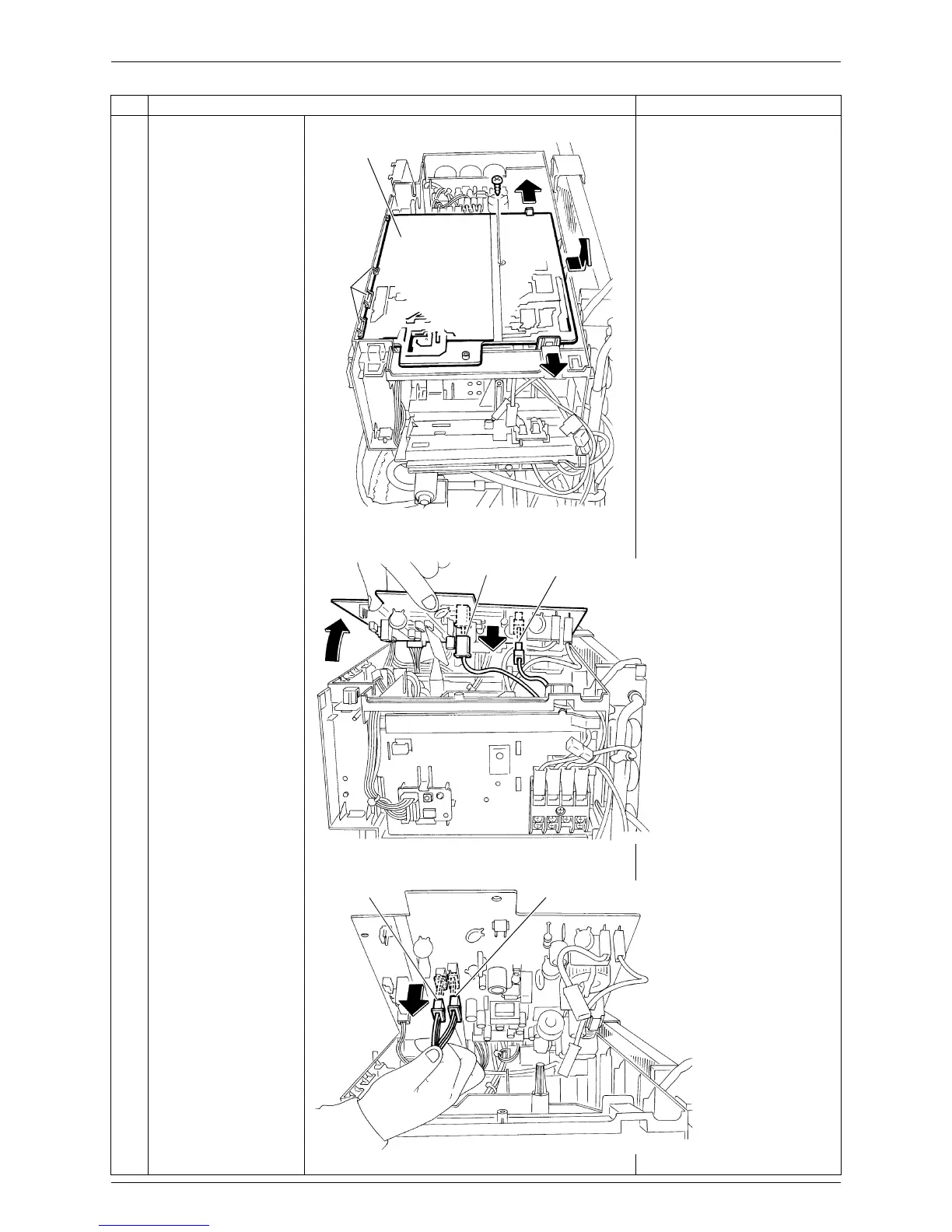

Si00-876 Removal of PCBs / Electrical Box
Removal Procedure 13
4
Remove the screw of
the main PCB.
5
Unfasten the 2 hooks
and release the main
PCB from the ditch of
the front side.
6
Disconnect the
harnesses [S10] [AC2]
while lifting the main
PCB.
7
Disconnect the
connectors [S51]
[S101].
Step Procedure Points
Main PCB
Ditch
(R2709)
[S10]
[AC2] (white)
(R2710)
[S10] [AC2]: terminal board
(R2711)
[S101] [S51]
[S51] [S101]: service monitor
PCB
