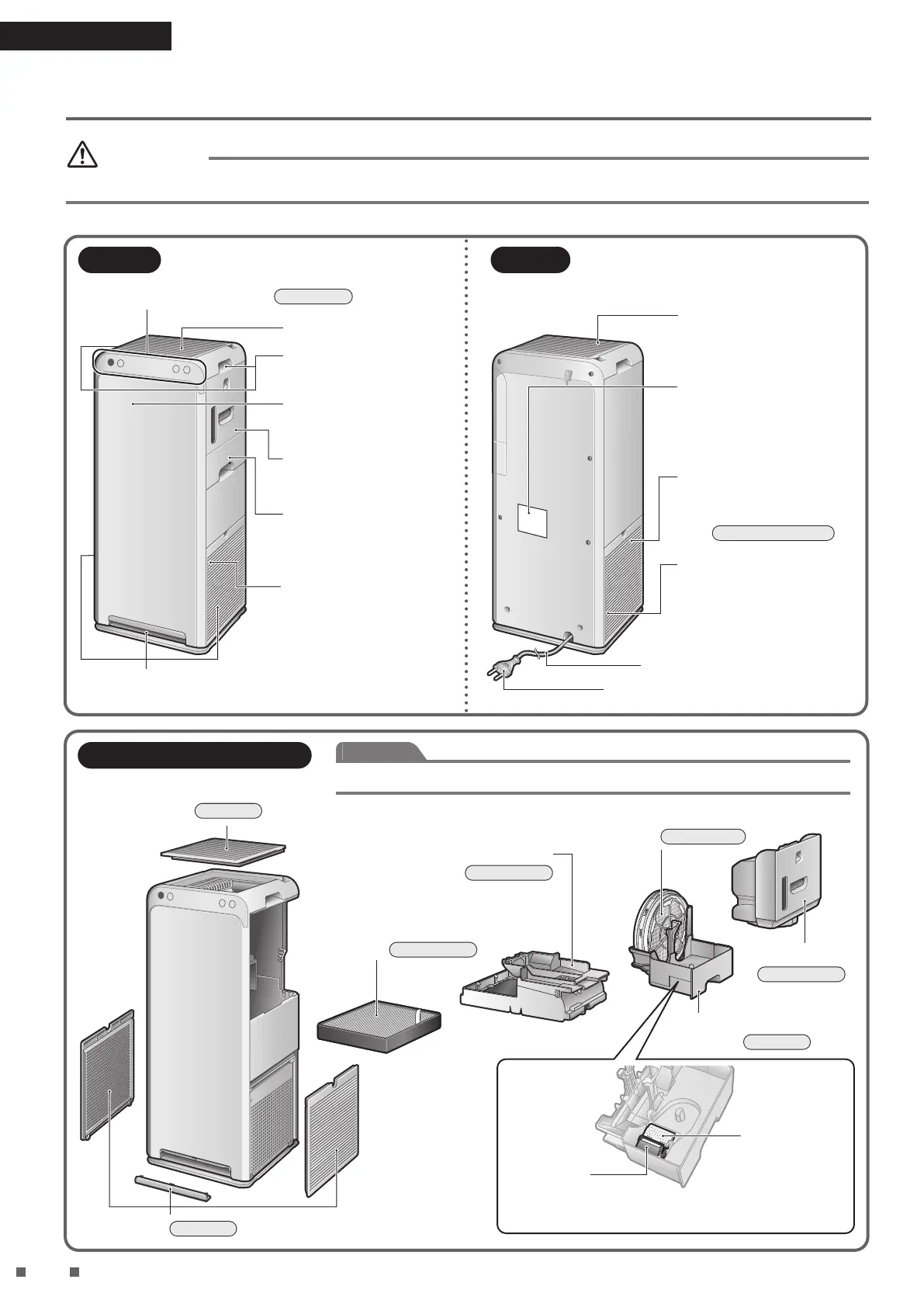

Names of Parts and Operations
Read First
CAUTION
Do not lift up the unit holding the grip on the water tank or humidifying tray. (Injury may result from the unit falling)
Front Back
Operating/Indicator panel
►
Page 8-10
Air outlet
Humidifying tray
Grip is below.
Streamer unit
Inside the air inlet
(right-side).
Water tank
Odour sensor
Inside the unit.
Grip
(for carrying the unit)
Active plasma ion
generation unit
Inside the air outlet.
Dust/PM2.5 sensor
Inside the air inlet
(left-side).
►
Page 9, 10, 21, 23
Temperature sensor
and Humidity sensor
Inside the air inlet (left-side).
Model name /
Production no. /
Manufacturing date
(MFG. DATE)
Air inlets
Front/Side
Power supply cord
Power supply plug
Main Removable Parts
Pre-lter
►
Page 23
Outow grille
►
Page 23
Humidifying lter unit
►
Page 25-27
Deodorising lter unit
(Black lter: Deodorising lter)
►
Page 24, 28
Dust collection lter
(electrostatic HEPA lter)
(White lter)
►
Page 24, 28
Water tank
►
Page 13, 24
Humidifying tray
►
Page 25
Silver ion
cartridge
Float
The polystyrene foam is not packing material.
Do not remove it.
Attention
To prevent malfunction, be sure to only operate the unit with all parts attached.
