Daikin Super Multi NX C-Series User Manual

Outdoor Unit (80 / 90 Class) SiE12-411

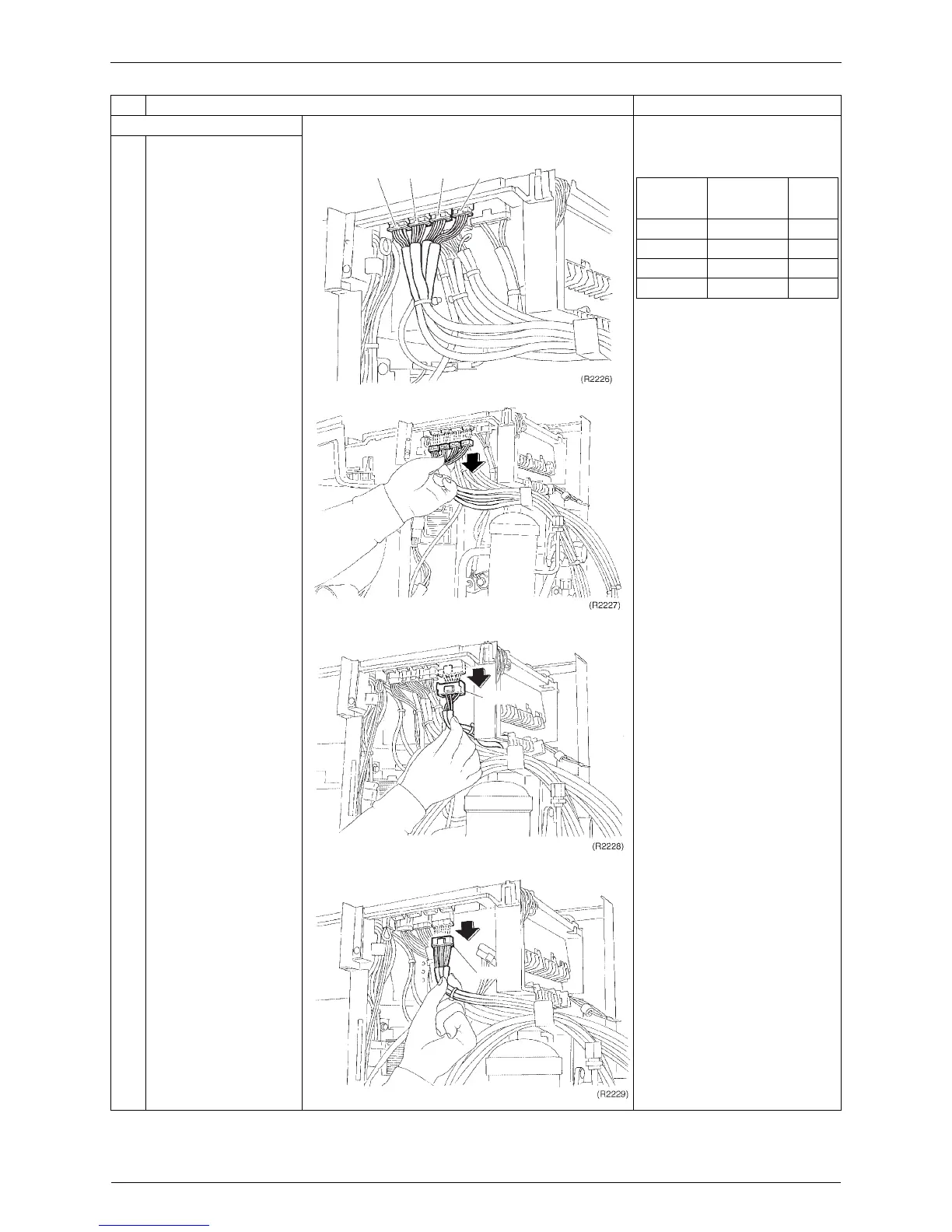

222 Removal Procedure
2. Remove each wire harness
1
Disconnect 4
connectors of the
electronic expansion
valve lead wires.
" When reconnecting, make
sure to match the wire to the
correct connector.
2
Remove the four way
valve connector S80.
3
Remove the connector
S93 for liquid pipe
thermistor.
Step
Procedure Points
S20
white
S21
red
S22
blue
S23
yellow
Connector Electronic
expansion
valve No.
Harness
length
S20 (White)
EVA 630
S21 (Red)
EVB 730
S22 (Blue)
EVC 825
S23 (Yellow)
EVD 940
S80
S93
