SiE12-411 Outdoor Unit (80 / 90 Class)

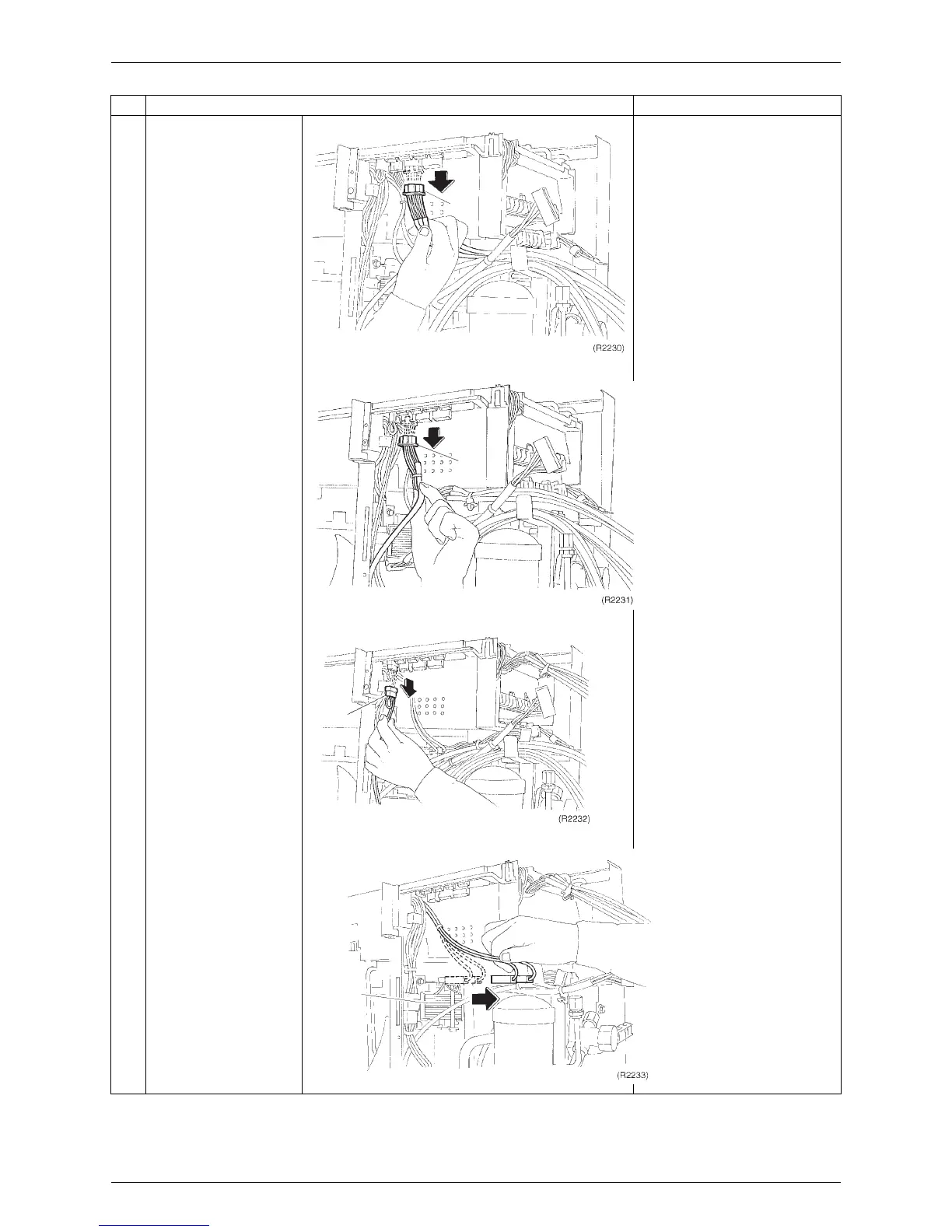

Removal Procedure 223
4
Remove the connector
S92 for gas pipe
thermistor.
5
Remove the connector
S90 for thermistor.
" Outdoor air
thermistor (Blue)
" Discharge pipe
thermistor (Black)
" Heat exchanger
thermistor (Gray)
6
Remove the overload
relay connector S40.
7
Remove the reactor
lead wire.
Step
Procedure Points
S92
S90
S40
Reactor
