7 Dimensional drawings

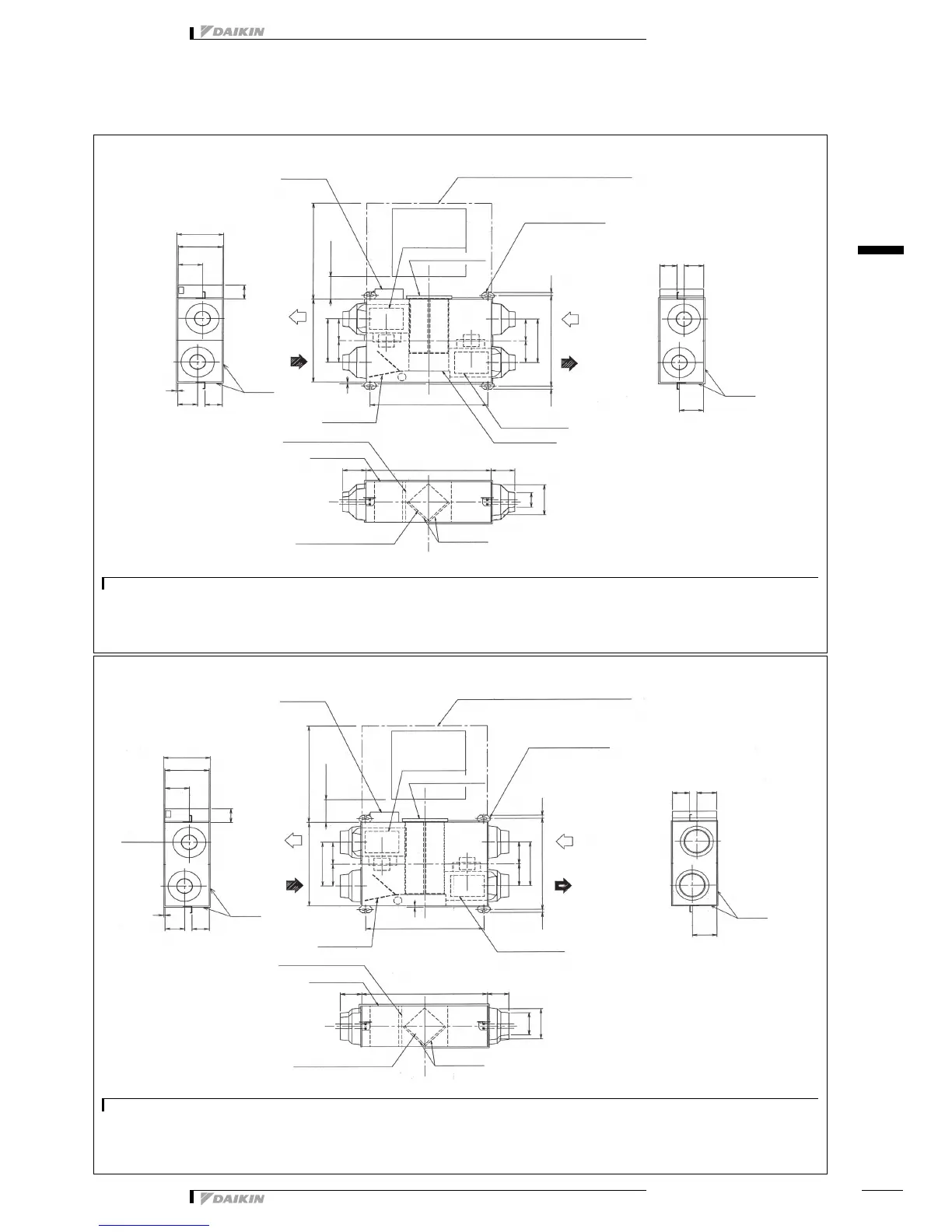

7 - 1 Dimensional Drawings
VAM150FA
3TW27874-1
NOTE
1
Be sure to provide the inspection hole (450x450 mm) to inspect the air filters, the exchange elements and fans.
Switch box
Maintenance space for the heat exchange elements, the air
filters and fans
Inspection hole
Ø 450
Supply air fan
Maintenance over
Ceiling hook
4-14x40 oval hole
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
Sealing
Exhaust air fan
Exhaust spacer
SA
RA
Damper plate
(Maintenance cover)
(Switch box)
Heat exchange elements
Air filters
Supply air to room
Return air from room
Sealing
285
269
149
120 104
67
600
120~250
2020 560
288
124164
718
509
288
124 164
145 145
760
104 120.3
149
Ø97Ø97
Ø200
8
8
VAM250FA
3TW27884-1
NOTE
1
Be sure to provide the inspection hole (450x450 mm) to inspect the air filters, the exchange elements and fans.
Switch box
Maintenance space for the heat exchange elements, the air
filters and fans
Inspection hole
Ø 450
Supply air fan
Maintenance over
Ceiling hook
4-14x40 oval hole
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
Sealing
Exhaust air fan
SA
RA
Damper plate
(Maintenance cover)
(Switch box)
Heat exchange elements
Air filters
Supply air to room
Return air from room
Sealing
285
269
149
120 104
67
600
120~250
2020 560
288
124164
718
509
288
124 164
145 145
760
104 120.3
149
Ø97
Ø200
8
8
