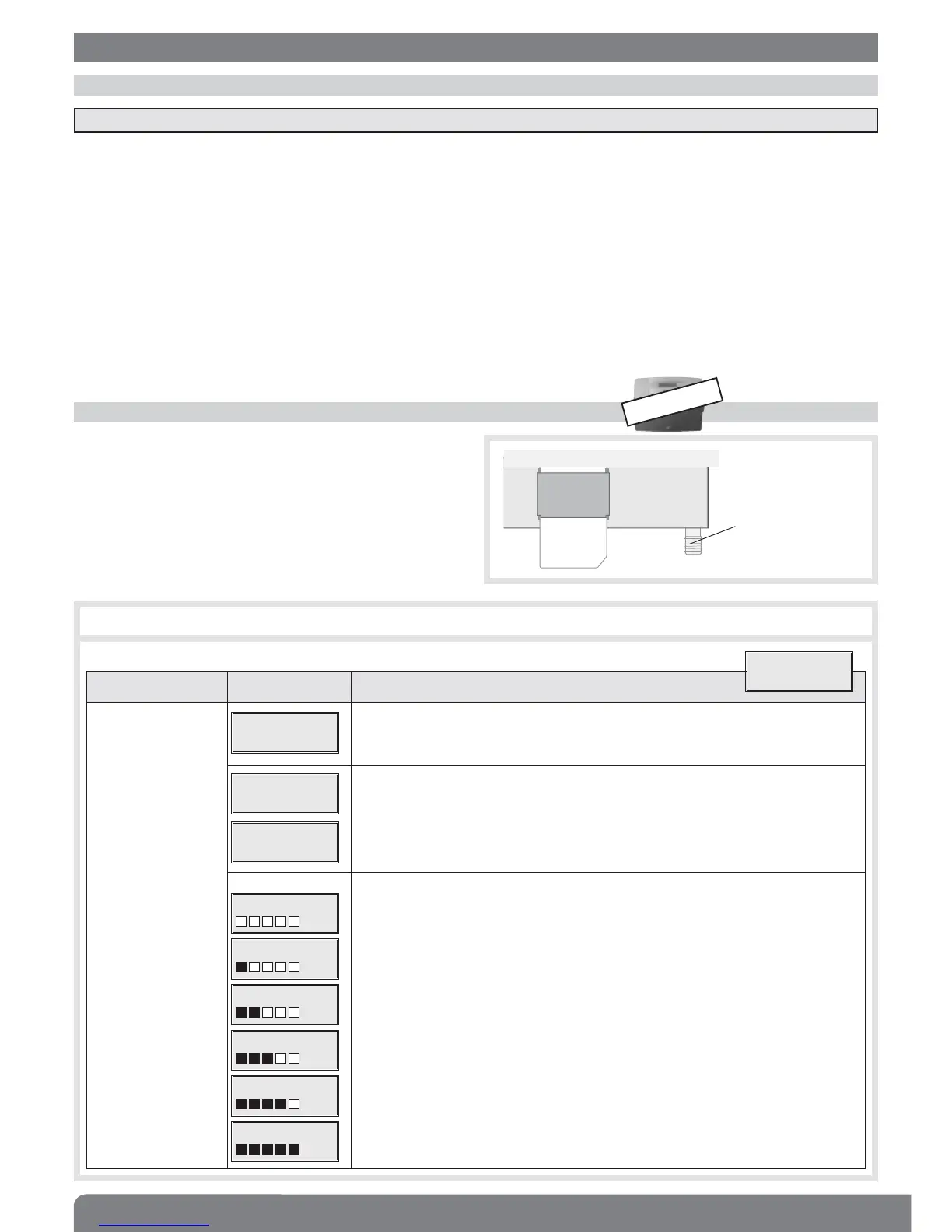

12. Installing the dialler
12.1 Choosing the best place to install the dialler
12.2 Testing the GSM network reception level
Installation rules
Place the dialler:
• inside the home in a place that is protected by the alarm
system,
• hidden from prying eyes,
• on a flat and rigid surface,
• over 2 m away from the control panel, internal and external
alarm sirens and other radio repeater relays belonging to the
DAITEM range,
• far away from any sources of electromagnetic disturbance
(electricity meter or switchboard, telephone box, hi-fi
equipment, household appliances, computers, etc.)
• with its front face clear of any obstacles and easily accessible
(the microphone and loudspeaker must not be obstructed).
Never place the dialler:
• on a metal wall,
• in a damp room (906-21X harsh environment cover available in
catalogue).
For the dialler to operate properly:
• never leave extra wiring inside the box,
• do not wind the cable around the box.
IMPORTANT: do not fix the dialler in place before performing the GSM network and radio repeater relay tests.
Programming Display Actions to be performed
to be performed
Testing GSM Select the Test mode menu using the L and M keys,
reception then press OK
Select the GSM signal level menu using the L and M keys,
then press OK
Check the GSM signal level level displayed:
Install mode
Test mode
Test mode
GSM signal level
GSM signal level
Please wait
The GSM dialler has a built-in antenna for transmitting data to the
GSM network. It is essential to test the reception level to
determine the best place to install the dialler. If the tests are not
satisfactory, an external antenna can be installed (see 12.4).
1. Position the GSM dialler in the place where it is to be installed.
2. Proceed as follows:
Connector for GSM
external antenna
SIM
GSM signal level
0
GSM signal level
3
none
For these signal levels, it is advisable to move
the dialler to a different place in order to obtain
a better GSM signal reception.
weak
average
OK
good
very good
GSM signal level
7
GSM signal level
15
GSM signal level
17
GSM signal level
20 21
Test mode
GSM signal level
TEST MODE
}
