DAITEM 473-29X - 2. Description and Operation

4
2.1.1 Content of 473-29X
• GSM/GPRS dialler • 910-21X power supply (ENG 3A-055WT05_5 V DC/1 A)
• BATLi23 lithium power pack (2 x 3.6 V – 18 Ah) • Rechargeable battery 908-21X (BATT LiIon 3,6 V-700 mAh-FIL)
• Bag of accessories with cable clamps and grommets • Fixing bracket (on back of dialler)

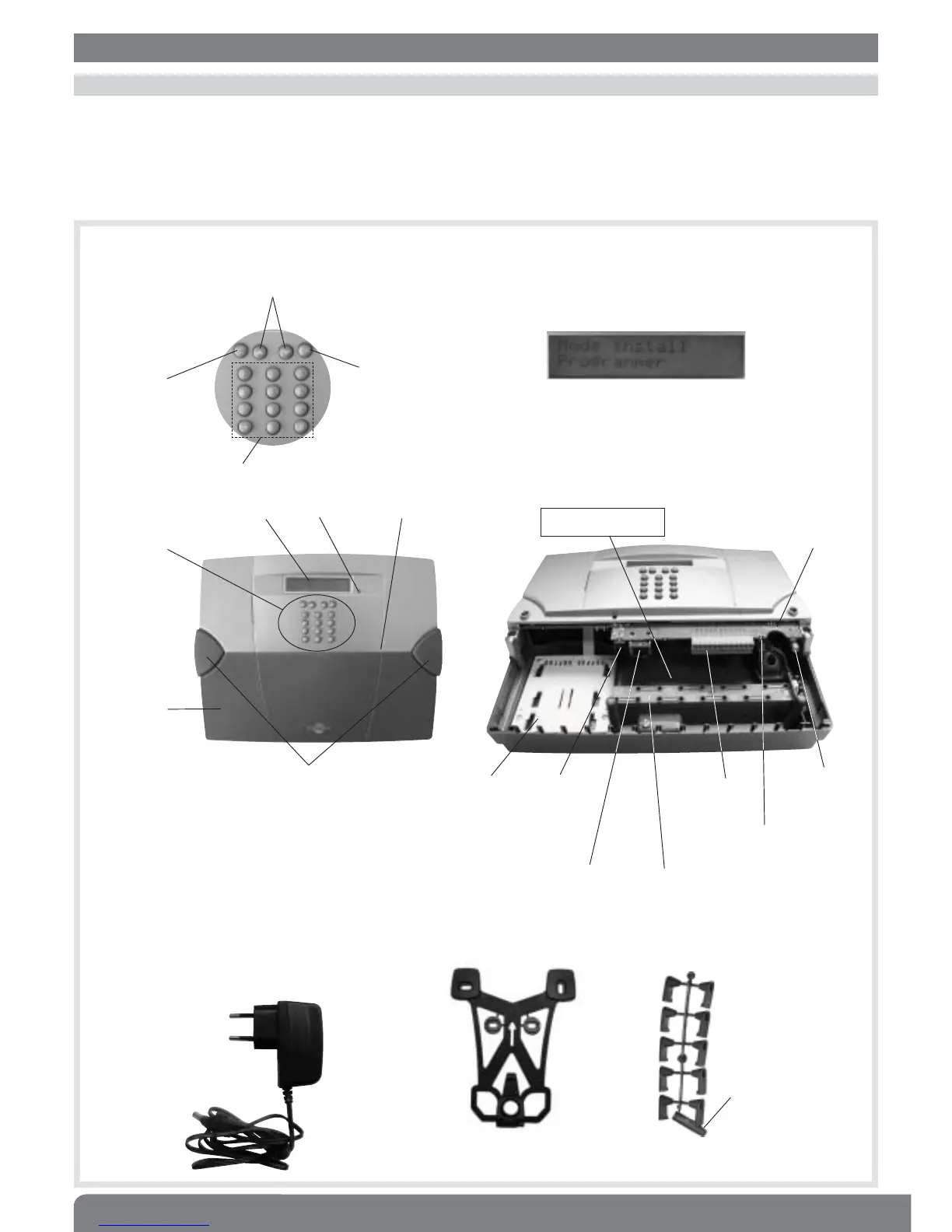

2.1.2 Description of GSM/GPRS telephone dialler
2. Description and operation
2.1 Content and description
Location for cable
clamp (supplied)
Jack socket
for connecting
910-21X
adapter
Connection for
4 inputs/
2 outputs
Connection
for rechargeable
battery 908-21X
ADSL connection
Connector for
external antenna
(not supplied)
Fixing bracket
(on back of dialler)
Cable grommets (to be removed,
supplied in bag of accessories)
Screw cover
Unused
part
Back-lit LCD screen
Programming
keypad
Cover
Red/green LED Microphone
910-21X power supply
(ENG 3A-055WT05_5 V DC/1 A)
Use an adapter with power supply ENG 3A-055WT05.
This adapter must comply with the applicable
standards in your country.
• Back-lit LCD display
• 2 lines 16 characters long:
- 1
st
line: menu display,
- 2
nd
line: sub-menu display
Programming keypad Programming screen
Validate key
Cancel
and return key
Scroll keys for accessing different
menu parameters
Dialling keys
SIM card slot
Slot for
BATLi23 lithium
power pack
(supplied)
Dialler internal view
MAC address (ethernet)
Example
MAC address
02985D6A3645
