Like a conventional infrared motion detector, the keypad
detector is allocated to an intrusion group and its alarm level
can be set.
Different types of triggering are possible:
• immediate,
• delayed,
• combined.
• The distant detection zone
Top view
Side view
• The close detection zone
Top view
Side view
2 m
2 m
0,8 m
1.6 m
1.3 m
1.3 m
1.2 m
0.5 m
0.5 m
0.3 m
0.2 m
1.8 m
0.4 m
1.3 Infrared detector operation
IMPORTANT: if the infrared detector is directed at the sun it is likely to be triggered for no reason.
IMPORTANT: it is not advisable to programme the infrared
detector for immediate triggering.
Time-delayed triggering
In the event of intrusion, the alerts and deterrents are
triggered at the end of the entry time delay.
keypad
door
window

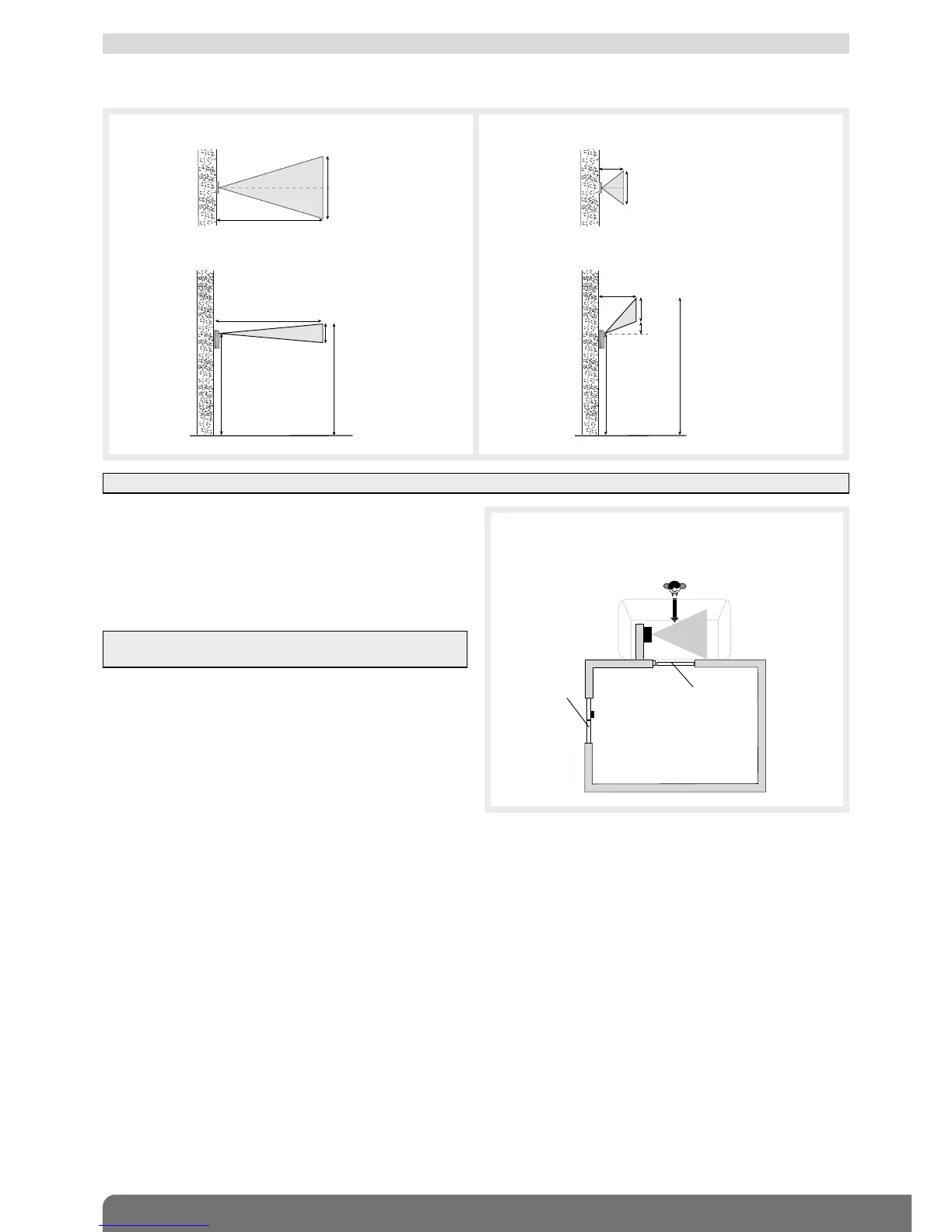

The vocal keypad has an infrared detector enabling it to detect an approaching person.
It has 2 distinct detection zones:
For an efficient close
detection, infrared
detector must not be
installed at height upper
than 1.3 m.
