Dake J-10 - Gearbox Assembly

6/02
22

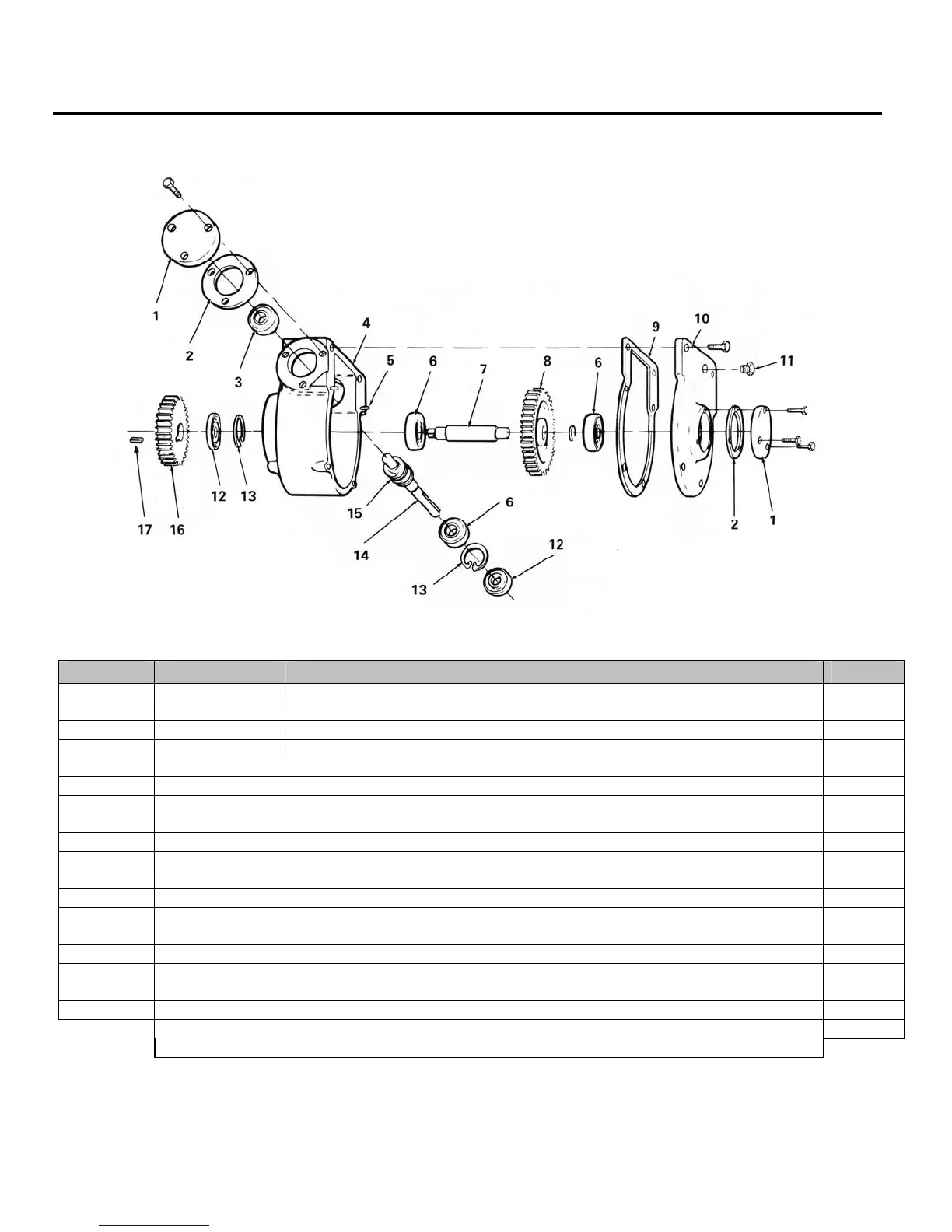

GEARBOX ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
10544-00 Gear Case Assembly Complete 1
1 5047-00 Bearing Cap 2
2 5138-00 Cap Gasket 2
3 5073-00 Bearing 1
4 5044-00 Gear Case 1
5 5142-00 Dowel Pin 2
6 5072-00 Bearing 3
7 10049-00 Worm Gear Shaft 1
8 & 15 10051-51 Worm – Steel Worm & Gear Bronze Assembly (10051-00 & 10050-00) 1
9 13080-01 Cover Gasket 1
10 5045-00 Gear Case Cover 1
11 7368 Breather Vent 1
12 5137-22 Oil Seal 2
13 5136-00 Snap Ring 2
14 5048-00 Worm Shaft 1
15A 71061 Key (3/16 x 3/16 x 1¾”) 1
16 10053-00 Spur Gear (Set Screw – Part No. 43558) 1
17 10047-01 Key (3/16 x 3/16 x ½”) 1
26189 Woodruff Key (Not Shown) 2
714706 Bearing & Seal Kit (Includes Items 2,3,6,9,12 & 13)
