Dake J-10 - Guide Arm Assembly

6/02
25

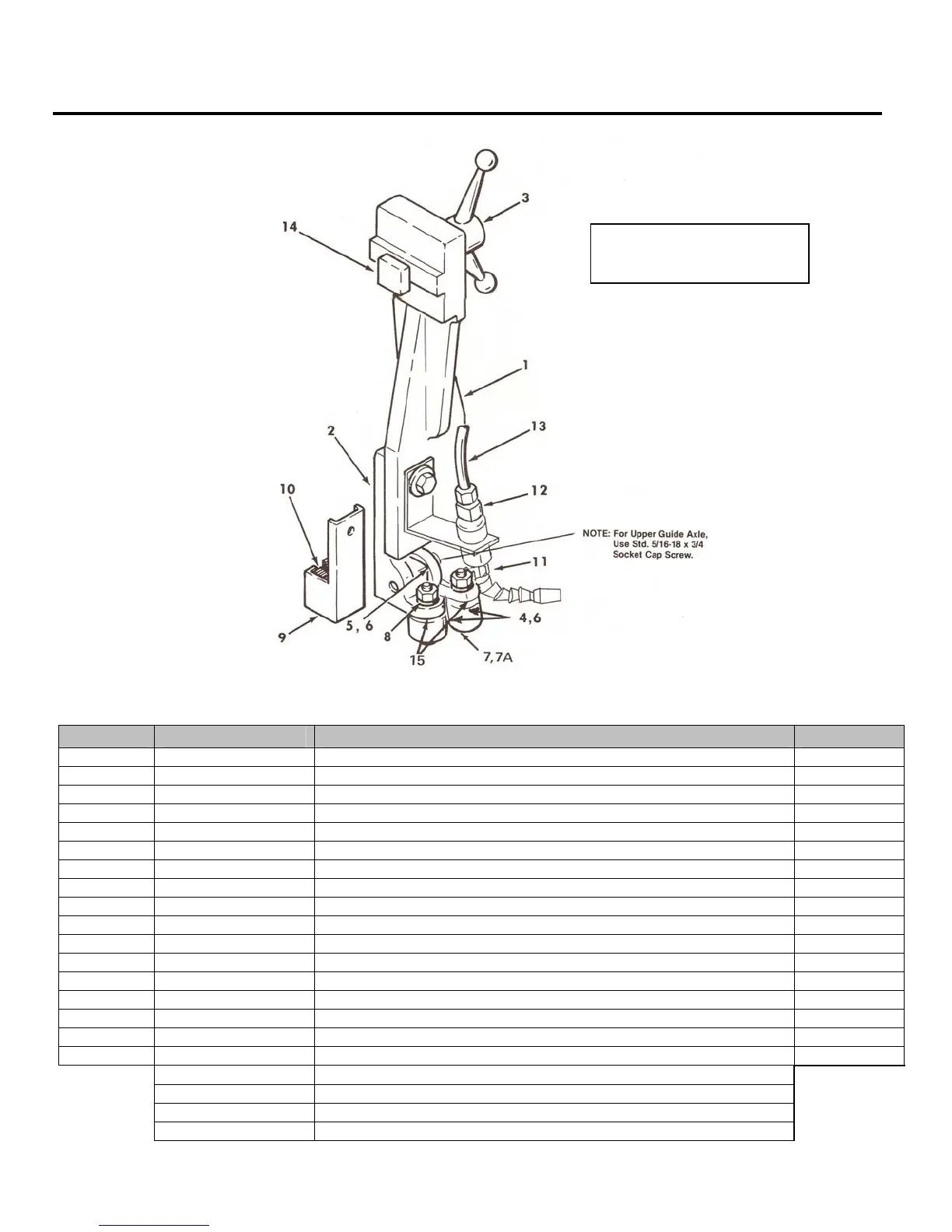

GUIDE ARM ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
10519-10 Guide Arm Assembly Complete LH & RH 2
1 10019-10 Guide Arm LH & RH 1
2 10020-10 Guide Holder 1
3 10084-01 Guide Arm Tightening Handle 1
4 10025-01 Side Guide Bearing 2
5 5026-00 Upper Guide Bearing 1
6 5023-01 Upper Guide Bushing 1
7 10022-02 Inside Concentric Axle with Nut & Washer 1
7A 5075-00 Side Guide Bushing 1
8 10022-10 Outside Eccentric Axle with Nut & Washer 1
9 5122-00 Brush Holder 1
10 5133-S Blade Cleaning Brush Kit – 6 Pairs 1
11 715342 Coolant Nozzle Assembly 1
12 34528 Tube Fitting, Poly-Tite 1
13 67762 Tubing 10 ft.
14 10512-10 T-Bolt 1
15 70462 Spacer Washer (JH Model Only) 8
10520-10 Guide Holder Assembly (Includes Items 2, 4, 5, 6, 7, 8 & 15)
715104 Guide Bearing Kit (Includes Items 4, 5, 6&7A) Will outfit 2 arms
75958 Blade, J-Saw – 3/4” x 137” x .035” 5/8 VP – Bi-Metal
75957 Blade, JH-Saw – 1” x 137” x .035” 5/8 VP – Bi-Metal
T-slot Dimension
5/8” New Style
