Startup
5.3.2 TFT color touchscreen - User interface
NOTICE!
The touch panel utilizes a thin flexible sheet that may be damaged
by sharp objects or heavy treatment.

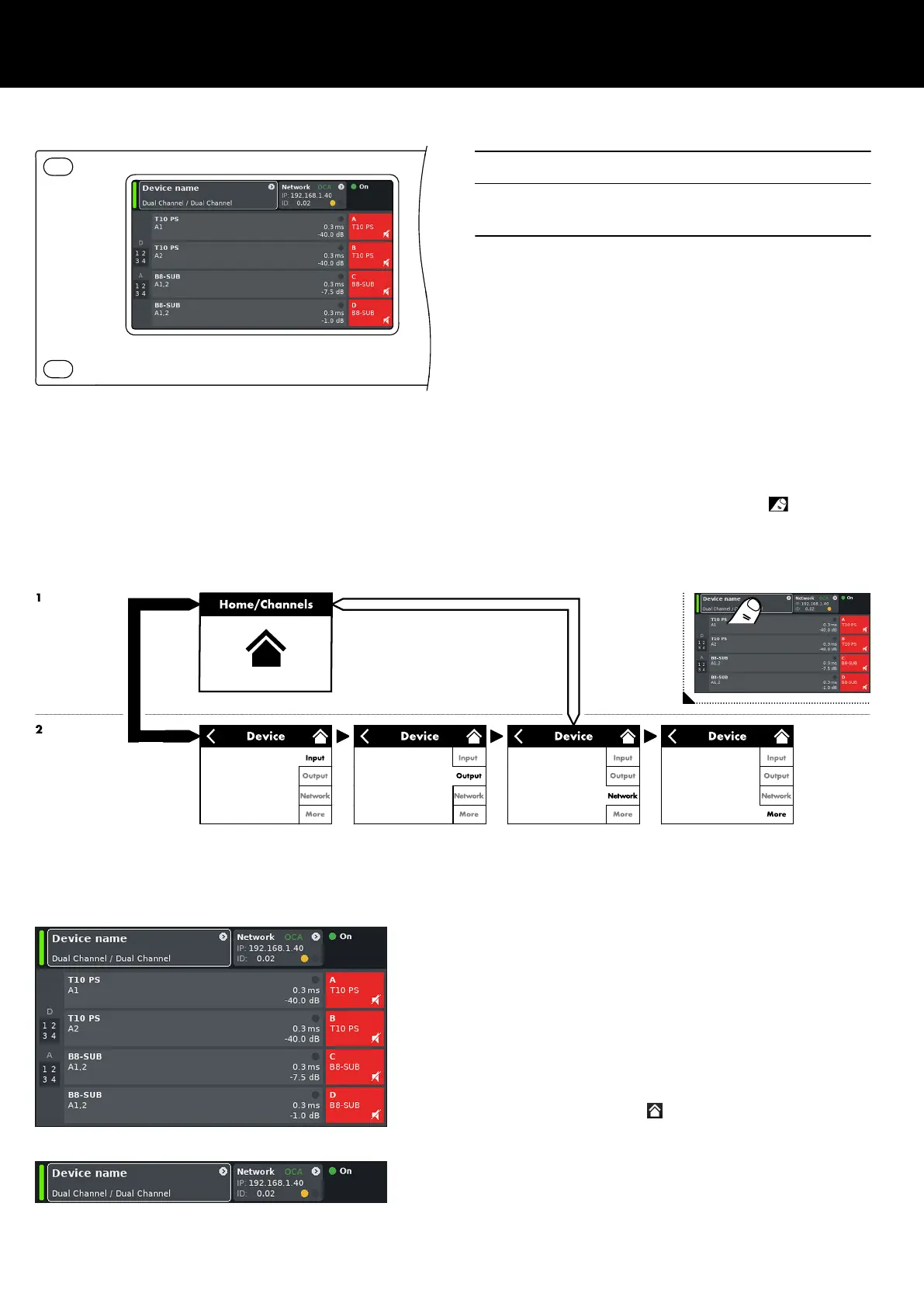

The user interface consists of a 4.3" TFT color touchscreen [9] with
a resolution of 480 x 272 pixels.
The resistive touchscreen responds to pressure and therefore can
be operated by a fingertip, even when wearing gloves or by an
appropriate stylus tip (pen).
Screen contents
The display provides comprehensive information regarding the
channel settings/statuses as well as the device settings/statuses.
The structure of the screen content(s) is divided into two main axes,
the «Home» view, including the «Channel» settings/statuses, and
the «Device» settings/statuses views.
Accessing the screen contents
Þ
To access a particular subscreen, simply tap (
) the
corresponding screen item, shown as an example in the
graphic below.
Screen access and structure chart
5.4 Screen contents
5.4.1 Home
From the Home screen, the screen structure is divided into two
main sections (axes), the Header and Data (Channel strip)
sections.
The navigation buttons allow for vertical access to the subscreens
while the tab structure on the right side of each subscreen provides
a clear horizontal order.
In addition, the header gives direct access to the Network
subscreen.
The Home screen can be accessed from any subscreen at any
level using the Home button (
).
Header
The header section features the most vital device status information.
This includes (from left to right):
d&b 40D Reference manual 1.3 en20
