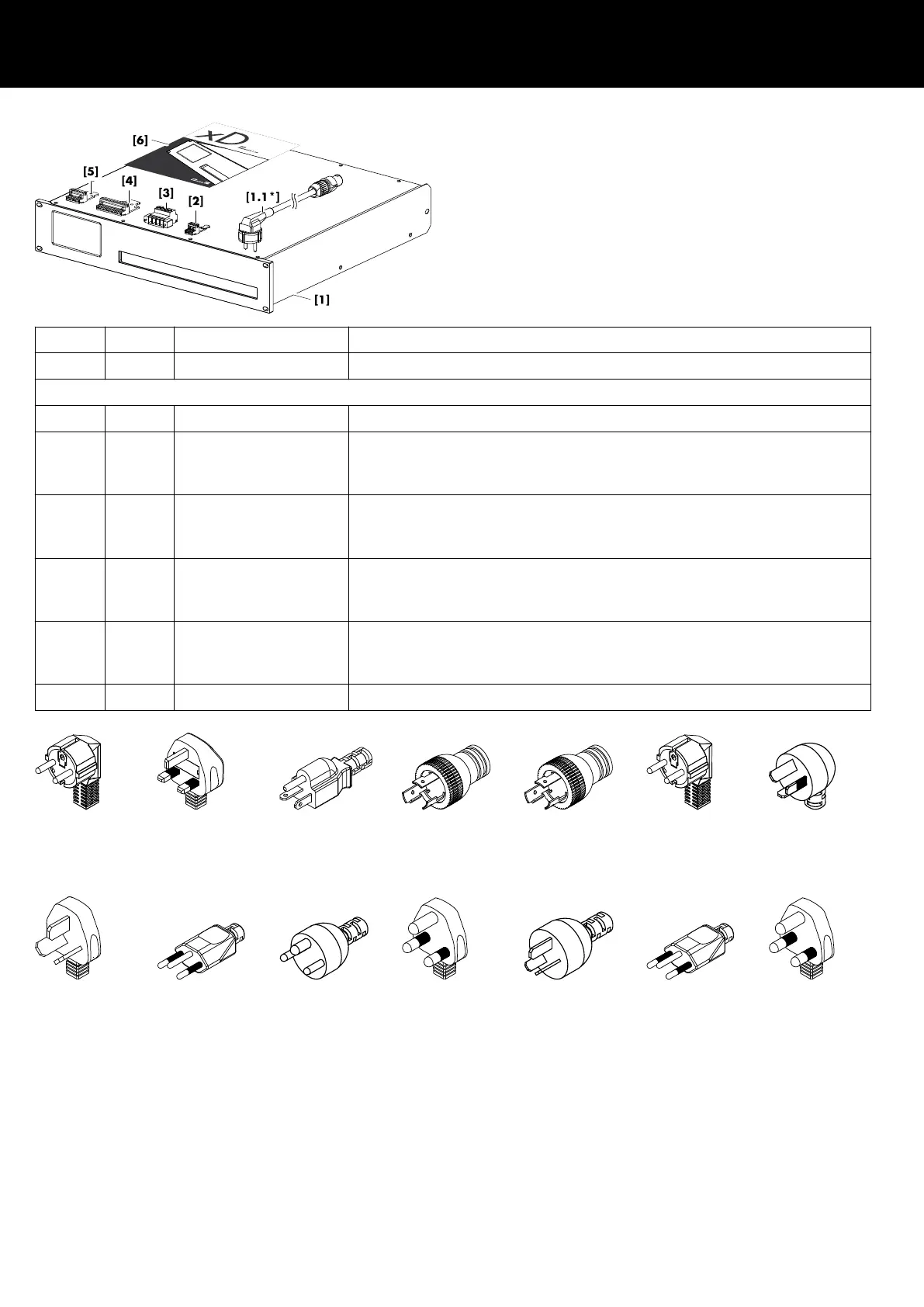

Scope of supply
Before starting up the device, please verify the shipment for
completeness and proper condition of the items.
If there is any sign of obvious damage to the unit and/or the
power cord, do not operate the unit and contact your local dealer
from whom you received it.
Pos. Qty. d&b Code Description
[1] 1 Z2830 d&b 40D Amplifier
Including:
[1.1*] 1 Z2612.xxx Power cord (specific to country*)
[2] 9 3-pin Phoenix Euroblock female:
▪ Intended for the INPUT/LINK/FAULT connector sockets.
▪ Connector type: MSTB 2.5 / 3-STZ - Phoenix order code: 1776168
[3] 2 4-pin Phoenix Euroblock male:
▪ Intended for the SPEAKER OUTPUTS connector sockets.
▪ Connector type: IPC 5/4-STF-7.62 - Phoenix order code: 1709173
[4] 1 9-pin Phoenix Euroblock female:
▪ Intended for the GPI connector socket.
▪ Connector type: MSTB 2.59-STZ-5.08 - Phoenix order code: 1764316
[5] 1 5-pin Phoenix Euroblock female:
▪ Intended for the GPO connector socket.
▪ Connector type: MSTB 2.55-STZ-5.08 - Phoenix order code: 1776142
[6] 1 D2036.EN .01 d&b 40D Start-up manual.
Z2612.000
3-pin Schuko
CEE 7/7
Z2612.010
3-pin UK
BS 1363A
Z2612.024*
3-pin U.S.
NEMA 5-20P
*within delivery
Z2612.025*
3-pin U.S.
NEMA L6-20P
*optional
Z2612.035
3-pin Japan
NEMA L6-20P
Z2612.040
3-pin South Korea
KS C8305
Z2612.050
3-pin Australia
AS 3112
Z2612.060
3-pin China
GB 2099
Z2612.070
3-pin Switzerland
SEV 1011
Z2612.090
3-pin Denmark
Afsnit 107-2-D1
Z2612.100
3-pin South Africa
SANS 164-1
Z2612.110
3-pin Argentina
IRAM 2073
Z2612.120
3-pin Brazil
NBR 14136
Z2612.130
3-pin India
IS 1293
*Mains plug types and associated standards
(Similar illustrations, not in scale)
2 Scope of supply
d&b 40D Reference manual 1.3 en6
