d&b audiotechnik Q Series - 2 Q-Series Array with the Z5159 Q Flying Frame

2. Q-Series array with the Z5159 Q Flying frame
Z5152
Q Front link
Z5153
Locking pins 8 mm
Z5151
Q Splay link
0 TO FRAME
position between
flying frame and
first cabinet

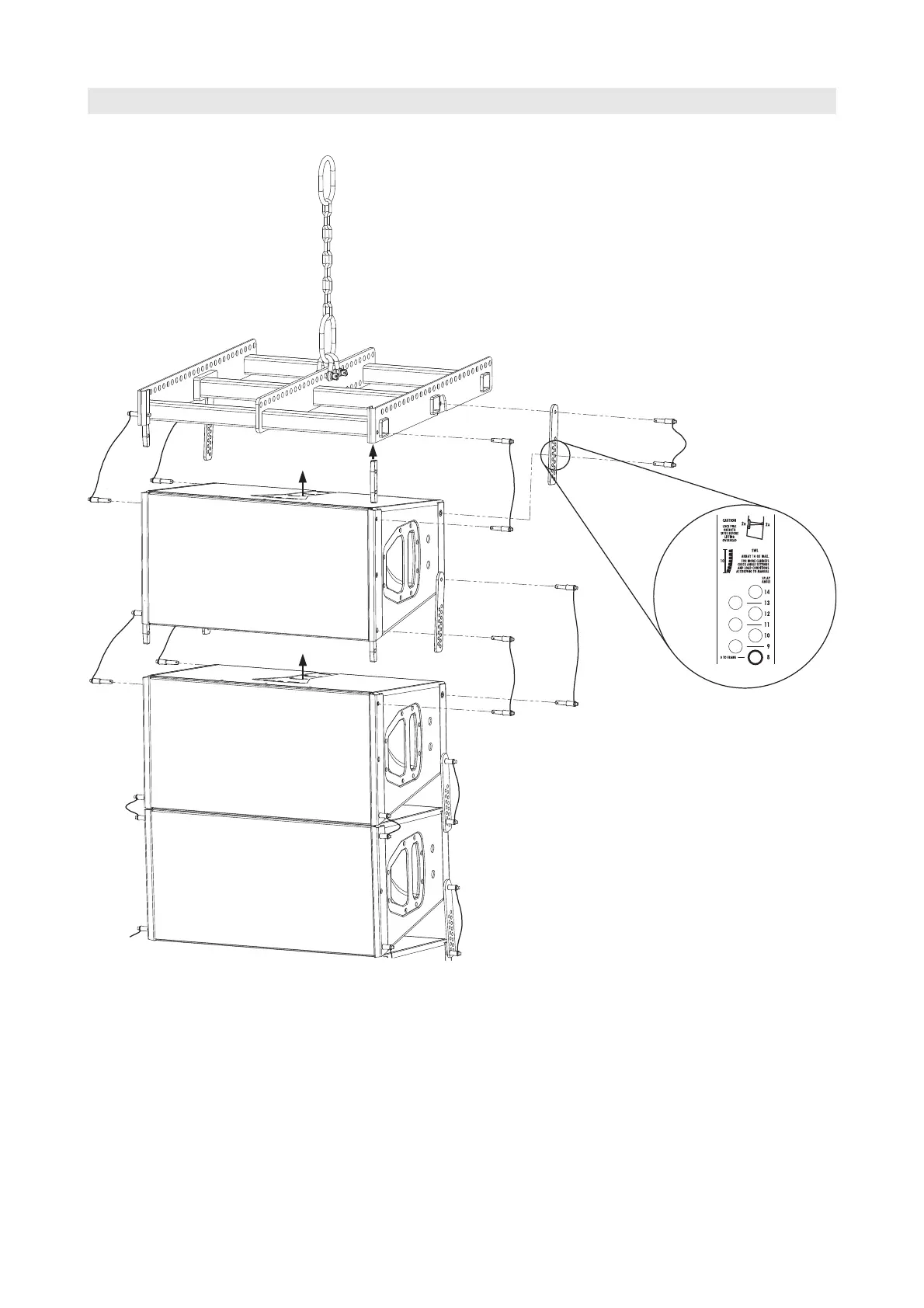

Fig. 1: Q-Series rigging assembly
Q-Series Rigging manual (1.2EN) Page 5 of 20
