A I R E N C E - U S B M a n u a l P a g e 27
INSERT
The Ring of the stereo jack sends the channel signal and the Tip accepts the return signal.
processors input.
each other and connect to ground (sleeve), this also goes for the other Male XLR, connect the ring of the stereo jack (which
sends signals) to a male XLR pin2. Short here pin 1 and 3 and solder to ground (sleeve). This has to be done because the insert is
not balanced.

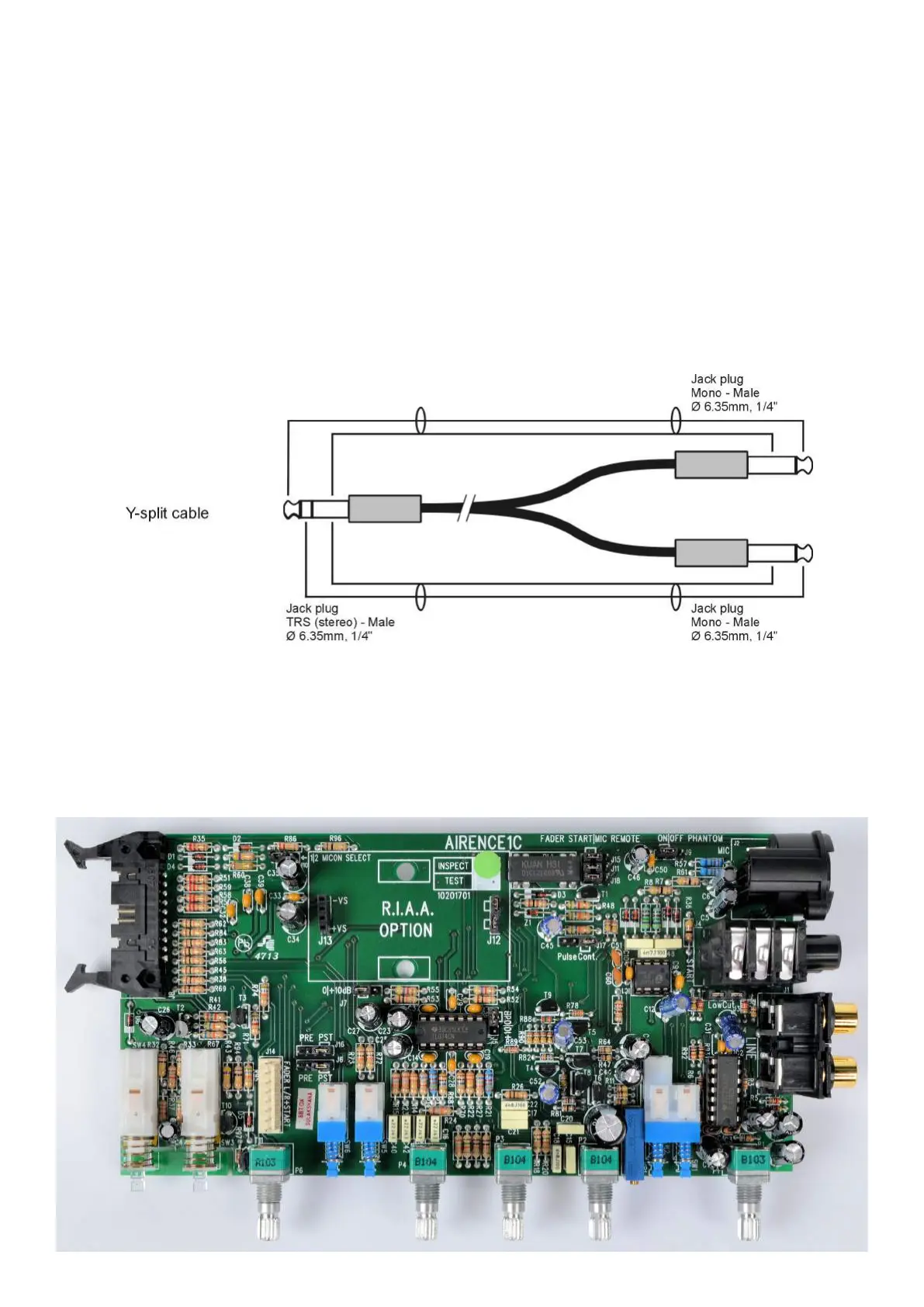

See below the cable type you need.
MIC
The Mic input is a professional balanced input circuit with 48 volt phantom powering for condenser mikes which deliver studio-
class microphone quality to your announcer/DJ channel.
JUMPER SETTINGS FOR EXTENDER CHANNELS
