Example 5 (Pr.78 = d01): Execute one cycle through the PLC program
Application Note:
Changing the value of Jog parameters 15 and 16 will interrupt PLC program execution.
PLC program execution will not be interrupted when and other parameter values are
changed.
Pr.79 PLC Forward/Reverse
Factory Setting d00
Units None
Settings d00 - d127
This parameter controls the direction of motion for the multi-speed parameters 17 to 23.
P17
P21
P20

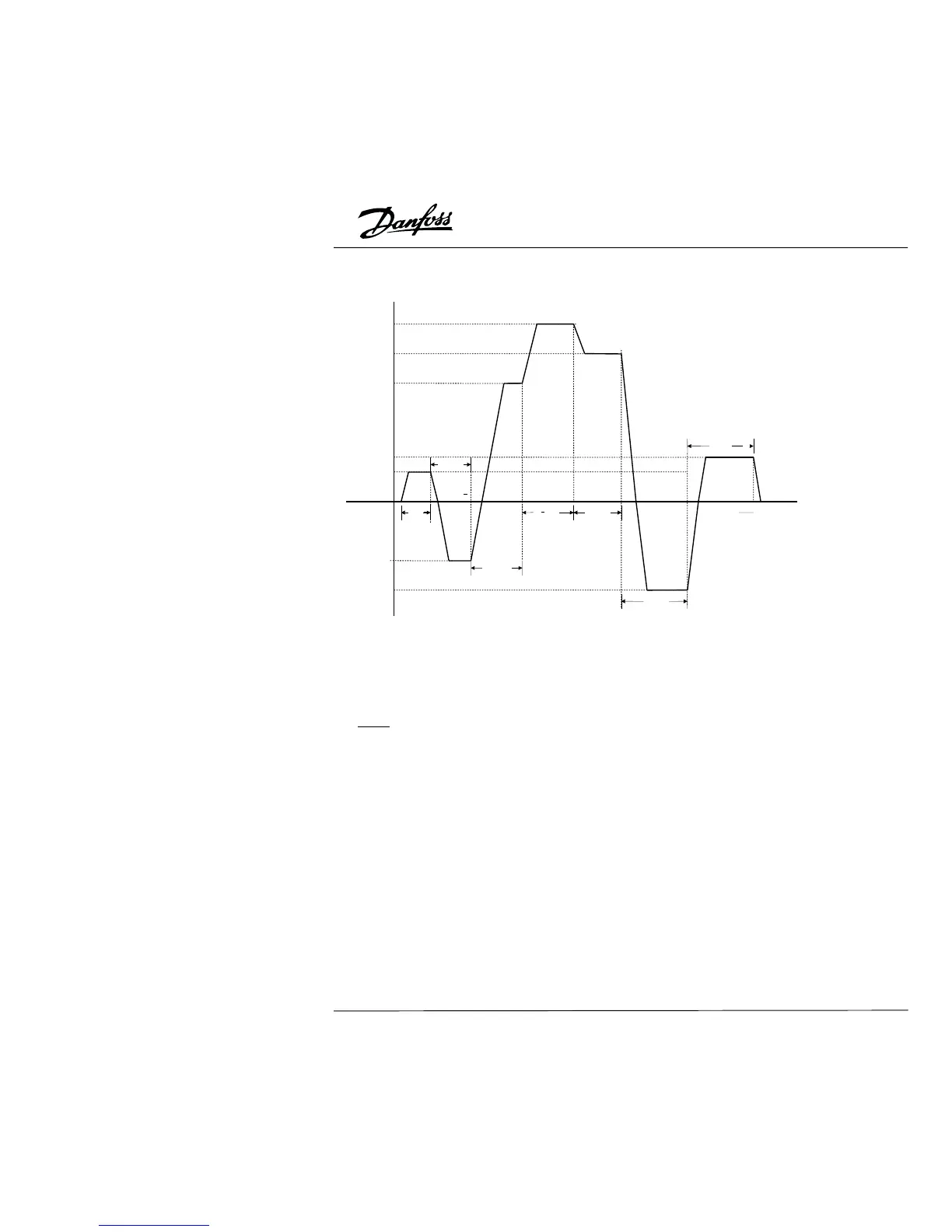

P17=10Hz P42=d16 P81=1.0
P18=20Hz P45=d09 P82=1.2
P19=40Hz P46=d10 P83=1.5
P20=60Hz P78=d01 P84=1.5
P21=50Hz P79=d34 P85=0.8
P22=30Hz P86=1.7
P23=15Hz P87=1.7
Note: Operation time is 10-times
by setting value.
P82
P83
P84
P85
P86
P87
P23
60Hz
50Hz
40Hz
15Hz
10Hz
0Hz
P17
P18
P19
P22
Time
Rev.
P81
Freq.
Fwd.
20Hz
30Hz
56
