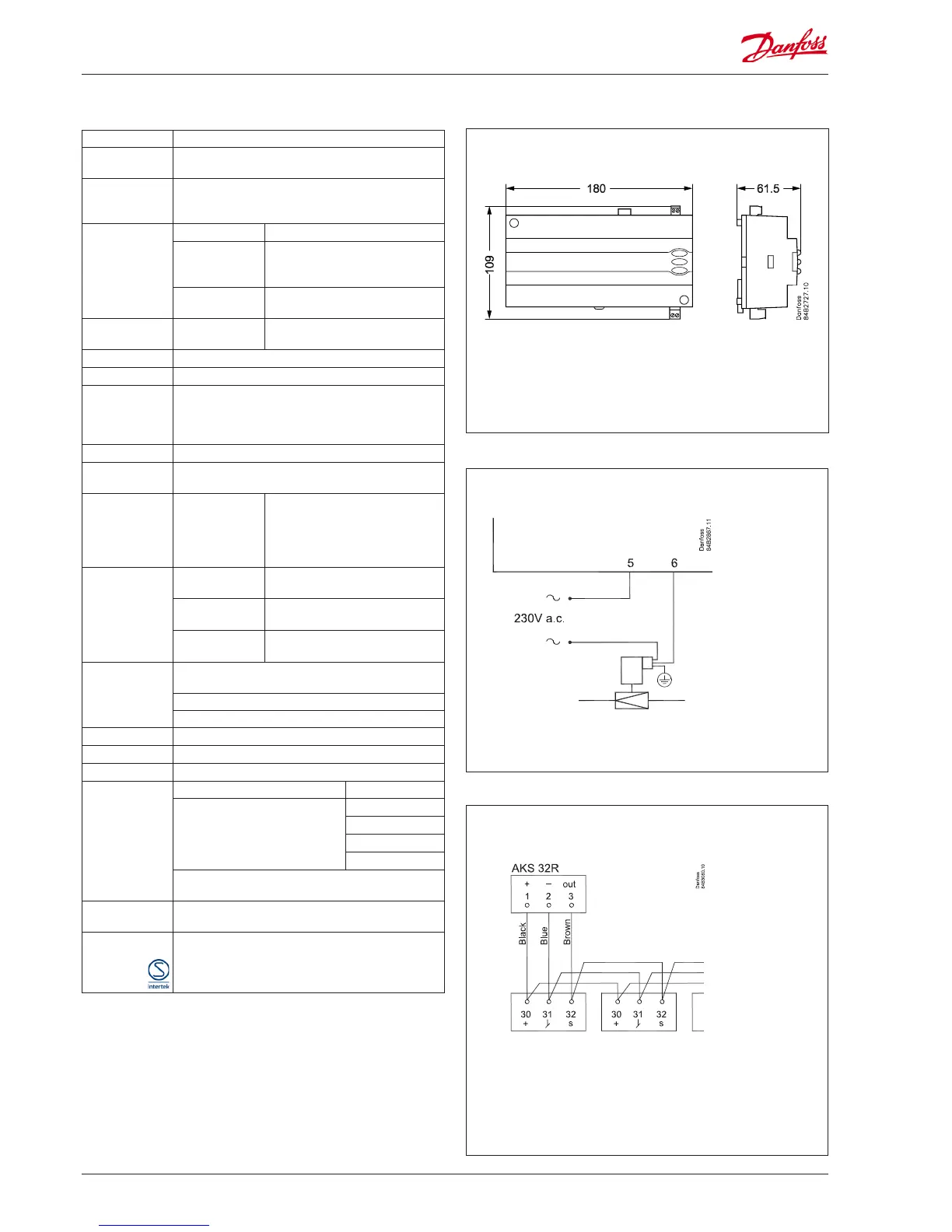

Data
Supply voltage 230 V a.c. +10/-15 %. 5 VA, 50/60 Hz
Sensor S2, S6 Pt 1000
Sensor S3, S4, S5
Pt 1000 or
PTC 1000 ohm
(All 3 must be of the same type)
Accuracy
Measuring range -60 to +120°C
Controller
±1 K below -35°C
±0.5 K between -35 to +25°C
±1 K above +25°C
Pt 1000 sensor
±0.3 K at 0°C
±0.005 K per grad
Measuring of Pe
Pressure
transmitter
AKS 32R
Display LED, 3-digits
External display EKA 163B or 164B. (any EKA 163A or 164A)
Digital inputs
DI1, DI2
Signal from contact functions
Requirements to contacts: Gold plating
Cable length must be max. 15 m
Use auxiliary relays when the cable is longer
Digital input DI3 230 V a.c.
Electrical con-
nection cable
Max.1.5 mm
2
multi-core cable
Solid state
output
DO1
(for AKV coil)
Max. 240 V a.c. , Min. 28 V a.c.
Max. 0.5 A
Leak < 1 mA
Max. 1 pcs. AKV (2 pcs. if EEC coils
are used)
Relays*
CE
(250 V a.c.)
DO3, DO4 4 (3) A
DO2, DO5, DO6 4 (3) A
Environments
0 to +55°C, During operations
-40 to +70°C, During transport
20 - 80% Rh, not condensed
No shock inuence / vibrations
Density IP 20
Mounting DIN-rail or wall
Weight 0.4 Kg
Data
communication
Fixed MODBUS
Extension options
LON RS485
TCP/IP
MODBUS
DANBUSS
The controller cannot be hooked up with a monitor-
ing unit type m2.
Power reserve
for the clock
4 hours
Approvals
EU Low Voltage Directive and EMC demands re CE-
marking complied with
LVD tested acc. EN 60730-1 and EN 60730-2-9, A1, A2
EMC tested acc. EN 61000-6-2 and EN 61000-6-3
* DO3 and DO4 are 16 A relays. DO2, DO5 and DO6 are 8 A relays. Max. load must be observed.
AKV info !!
230 V a.c. coil
AKS 32R info
The signal from one pressure transmitter can
be received by up to ten controllers.
There cannot be a signicant drop in pressure
between the pressure transmitter’s position in
the suction line and the S2 temperature in the
individual evaporators.
Capacitive load
The relays cannot be used for the direct connection of capacitive loads such
as LEDs and on/o control of EC motors.
All loads with a switch mode power supply must be connected with a suit-
able contactor or similar.
